Solar & Cellular Wiring Installation
IMPORTANT NOTE:
running through the panel mounting brackets. The current version of the CB 1-w has cord grip pass
throughs integrated into the top of the tower. Both installation types are detailed on this page.

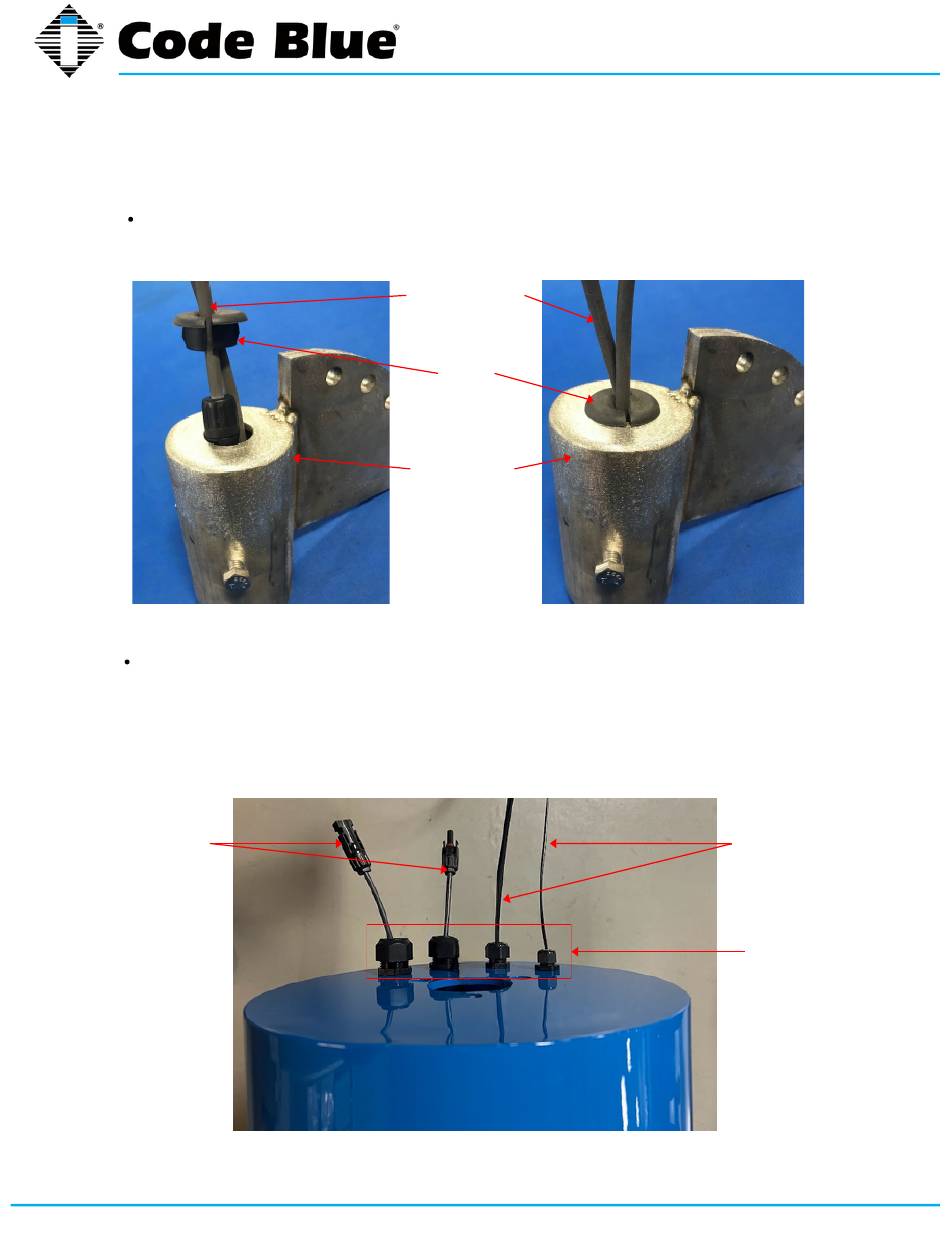

Route solar panel power wiring through mount – Fish the solar panel power wires
up through the top of the panel mounting bracket. Use the provided gasket to seal
in top hole once wires are fed through. See figure 3.
Solar panel power & cellular communication wiring through cord grips – The
current version of the CB 1-w is shipped from the factory with the solar panel power
and cellular communication antenna wiring already run through the four cord grip
pass throughs located on top of the tower. See Figure 4.
IMPORTANT NOTE:
wiring adjustment during install. When connections are completed on site, the cord grips MUST be fully
tightened in order to prevent water from entering the enclosure.
Solar Power Cables
Code Blue • 259 Hedcor Street
Previous versions of the CB 1-w were designed with the solar panel connection wires
The pre-installed cord grips are only hand tightened at the factory, allowing for easy
• Holland, MI 49423 USA
Solar Panel
Power Wires
Gasket
Solar Panel
Mounting
Bracket
Figure 3
Figure 4
• 800.205.7186 • www.codeblue.com
CB 1-w Solar Tower
Admin Guide
Cellular Antenna Cables
Cord Grips
