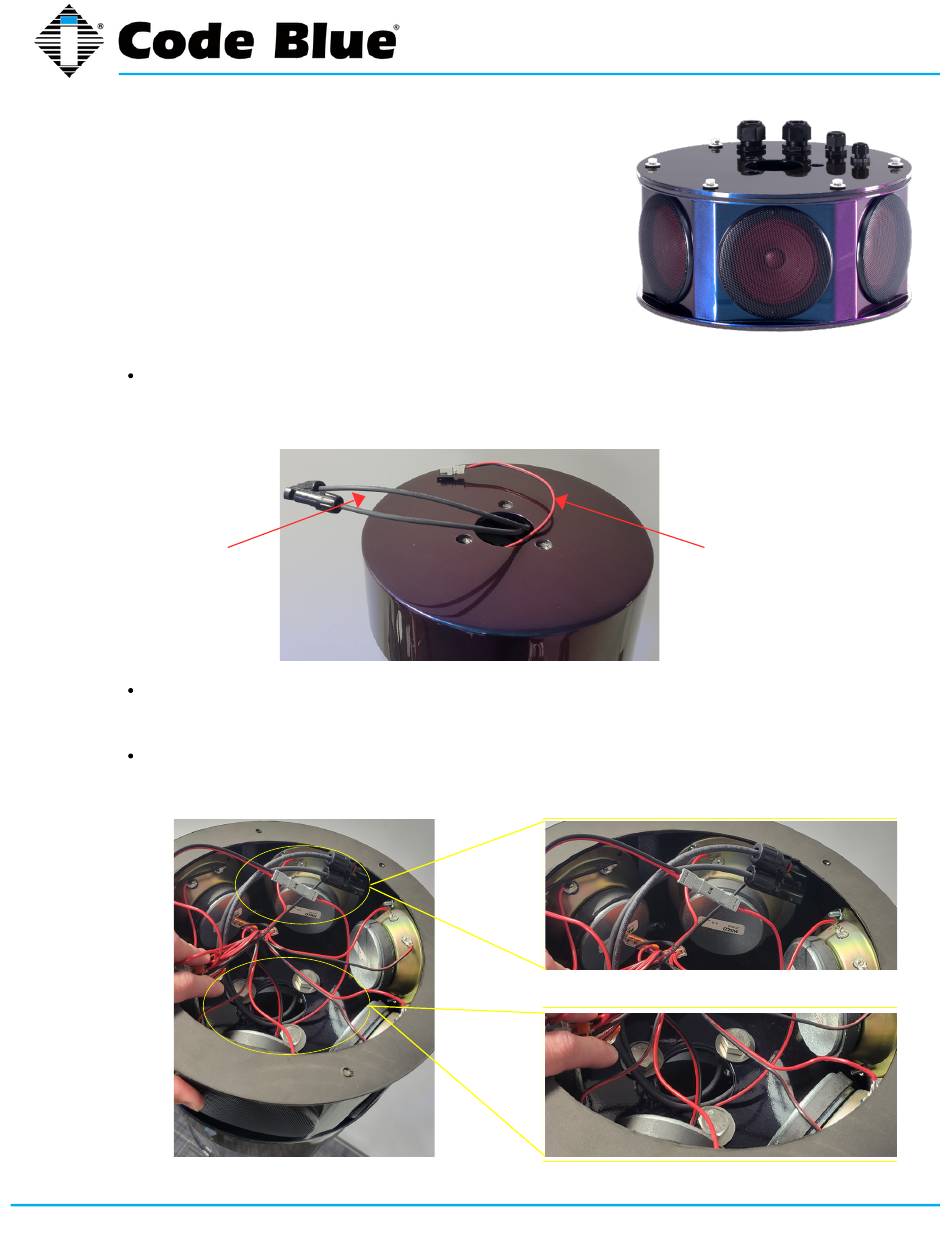

Solar Audio Paging Installation

SKIP if installation does not include Audio Paging Array
NOTE: Prior to beginning the steps below, remove the 6 bolts &
washers on top of the Solar Audio Paging Array to remove the
top plate. This is necessary to make the connections referenced
in the following steps.

Installing Solar Audio Paging Array on NEW Unit

Fish Audio Paging & Solar Panel connection wires - Utilizing the opening in the top
of the tower (location where Solar Panel would typically be attached when
installing without an Audio Paging Array), fish the connection wires through the
opening.
Solar Panel
Connection
Wires
Position & Secure Audio Paging Array on Tower - Place the Solar Audio Paging
Speaker Array on top of the tower unit & ensure the all holes align properly. Using
the provided bolts and washers, securely attach the speaker array to the tower.
Connect Audio Paging Speaker Cables - Using the pre-installed Wago connectors,
connect the Audio Paging Speaker Cable to the cable that was fished up through
the opening on the top of the tower in previous steps.
(Continued on next page)
Code Blue • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186
CB 1-w Solar Tower
Speaker Array Wire Connection
Audio Paging Array Connection to Tower
• www.codeblue.com
Admin Guide
Audio Paging
Speaker Connection
Wire
