Altronix Trove S2 kits are pre-assembled and consist of Trove enclosures/backplanes with factory installed Altronix power supply/chargers

and sub-assemblies. Both kits accommodate Lenel-S2 (S2 Security Platform) S2-INST Installation Kit for S2 Network Node for up to eight (8)

(T2SSK1(D)Q) or suxteen (16) (T2SSK2(D)Q) doors in a single enclosure.

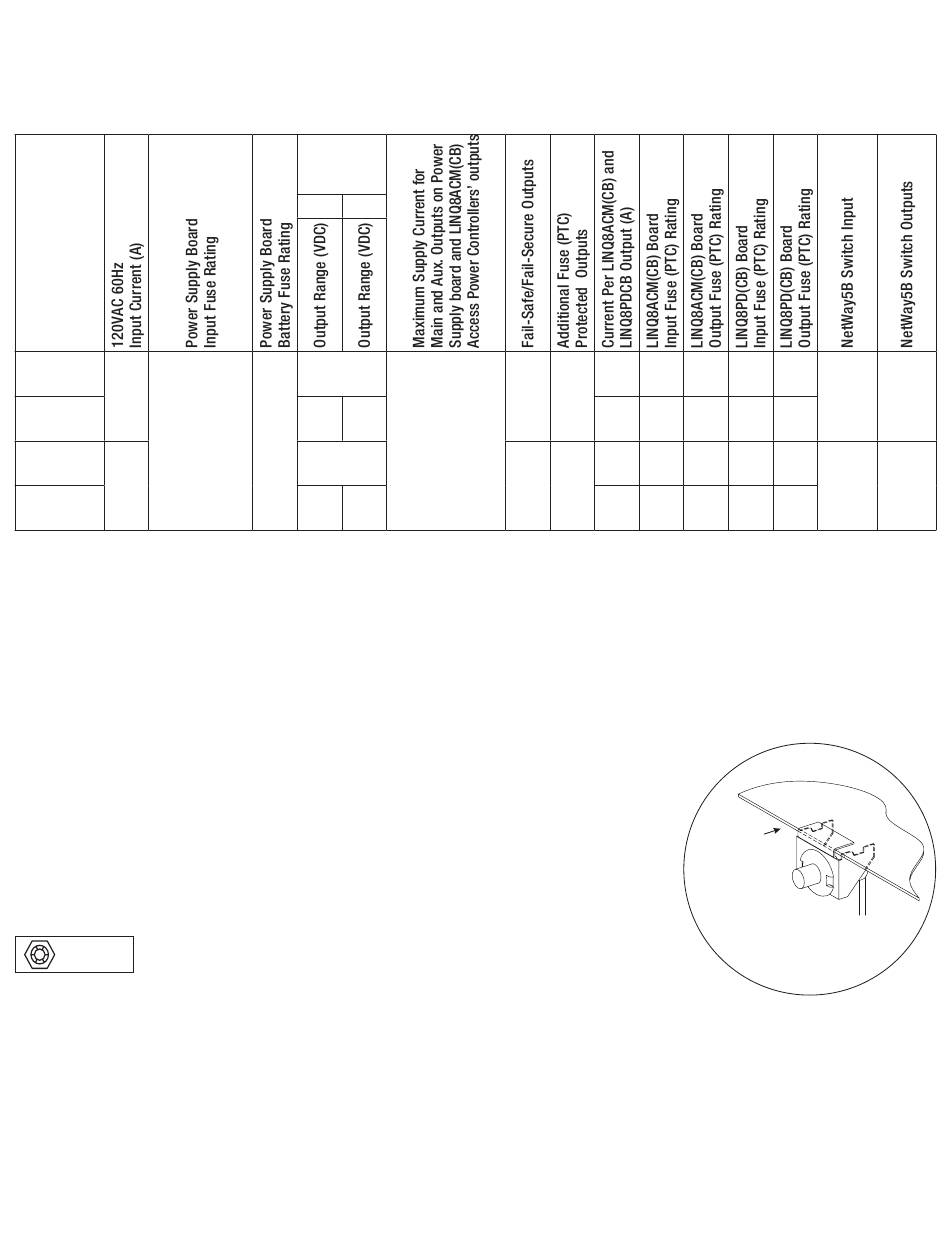

Altronix

Model

Number

T2SSK1Q

eFlow104NB:

T2SSK1DQ

6.3A/250V

eFlow102NB:

5A/250V

T2SSK2Q

T2SSK2DQ

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.

Product is intended for indoor use only.

1. Remove backplane from enclosure. Do not discard hardware.

2. Mark and predrill holes in the wall to line up with the top three keyholes in the enclosure. Install three upper fasteners and screws

in the wall with the screw heads protruding. Place the enclosure's upper keyholes over the three upper screws; level and secure.

Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes and install the three fasteners. Place the

enclosure's upper keyholes over the three upper screws. Install the three lower screws and make sure to tighten all screws.

3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in desired

location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure

approximately 2" from the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the

Access Control Panel input or the appropriate UL Listed reporting device.

To activate alarm signal open the door of the enclosure.

4. Mount S2-INST Installation Kit to backplane, refer to pages 3, 4.

5. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow104NB and

eFlow102NB and corresponding Sub-Assembly Installation Guides for LINQ8ACM(CB),

LINQ8PD(CB) and NetWay5B for further installation instructions.

Hardware:

Lock Nut

- 2 -

Overview:
