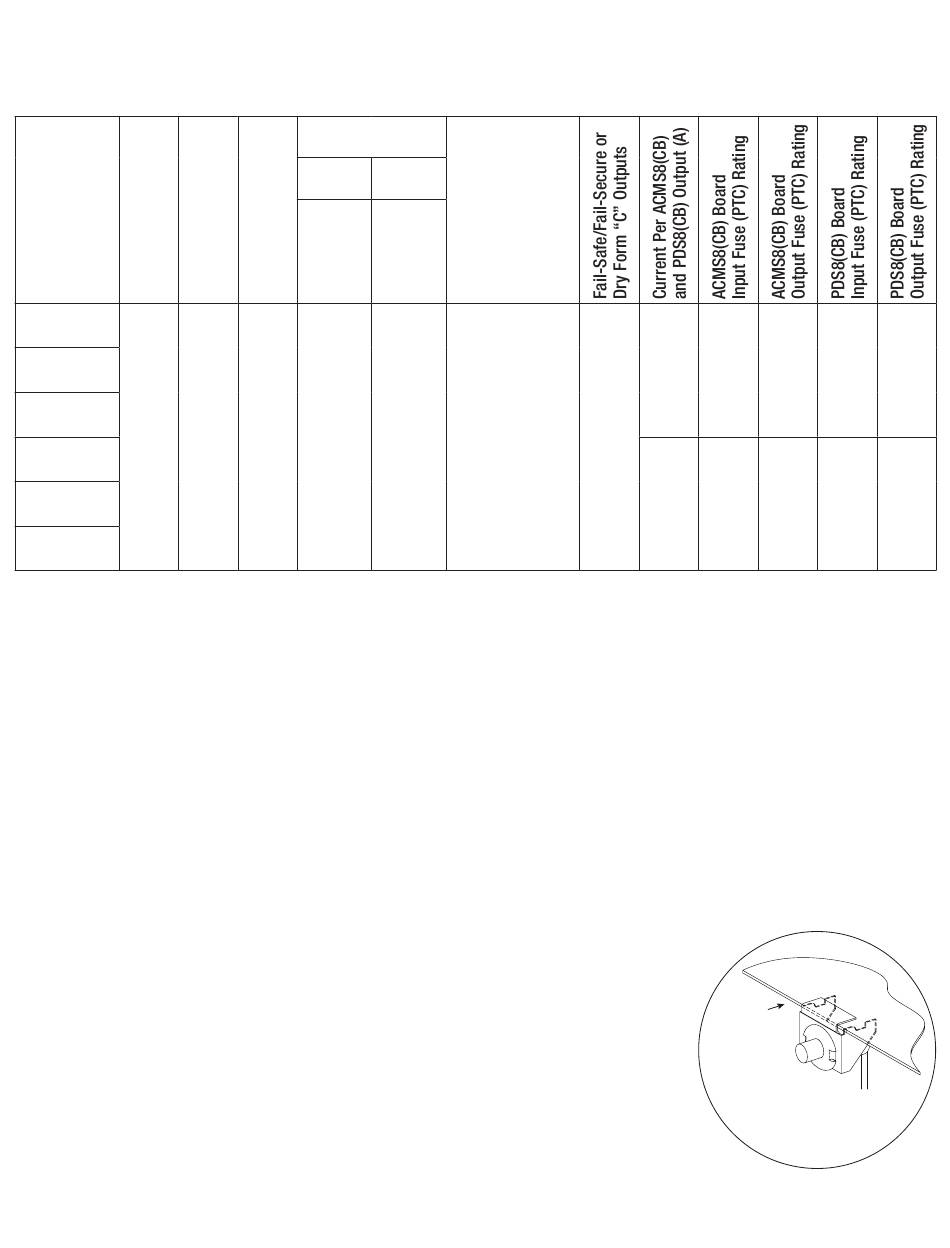

Altronix Trove Plus kits are pre-wired, pre-assembled and consist of Trove2M2 enclosure/backplane with factory installed Altronix power supply/

charger and sub-assemblies, wire harnesses and finger duct.

Power

115VAC

Supply

60Hz

Board

Altronix

Input

Model

Current

Fuse

Number

(A)

Rating

T2M7LCK1

T2M7LCK2

T2M7LCK3

4.2

250V

T2M7LCK1D

T2M7LCK2D

T2M7LCK3D

• One(1) tamper switch (Altronix Model TS112 or equivalent).

• Cam lock.

• Battery leads.

• 16 Gauge enclosure with ample knockouts for convenient access.

• Enclosure Dimensions (H x W x D): 27.25" x 21.75" x 6.5" (692.2mm x 552.5mm x 165.1mm).

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.

Product is intended for indoor use only.

1. Remove backplane from enclosure. Do not discard hardware.

2. Mark and predrill holes in the wall to line up with the top three keyholes in the enclosure. Install three upper fasteners and screws in the

wall with the screw heads protruding. Place the enclosure's upper keyholes over the three upper screws, level and secure. Mark the position

of the lower three holes. Remove the enclosure. Drill the lower holes and install the three fasteners. Place the enclosure's upper keyholes

over the three upper screws. Install the three lower screws and make sure to tighten all screws.

3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in desired

location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure

approximately 2" from the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the

Access Control Panel input or the appropriate UL Listed reporting device.

To activate alarm signal open the door of the enclosure.

4. Refer to the ULXB Power Supply/Charger Installation Guide for AL1024ULXB2

and corresponding Sub-Assembly Installation Guides for PDS8(CB) and ACMS8(CB) for

further installation instructions.

5. Position Mercury access controller modules over corresponding spacers and depress onto

snap on spacers (Fig. 2, pg. 3).

6. Connect wire harnesses to Mercury access controller modules(Fig. 2-4, pg. 3-5).

7. Mount backplane to enclosure with hardware.
