Altronix TROVE T2SSK1Q Installation Manual page 3

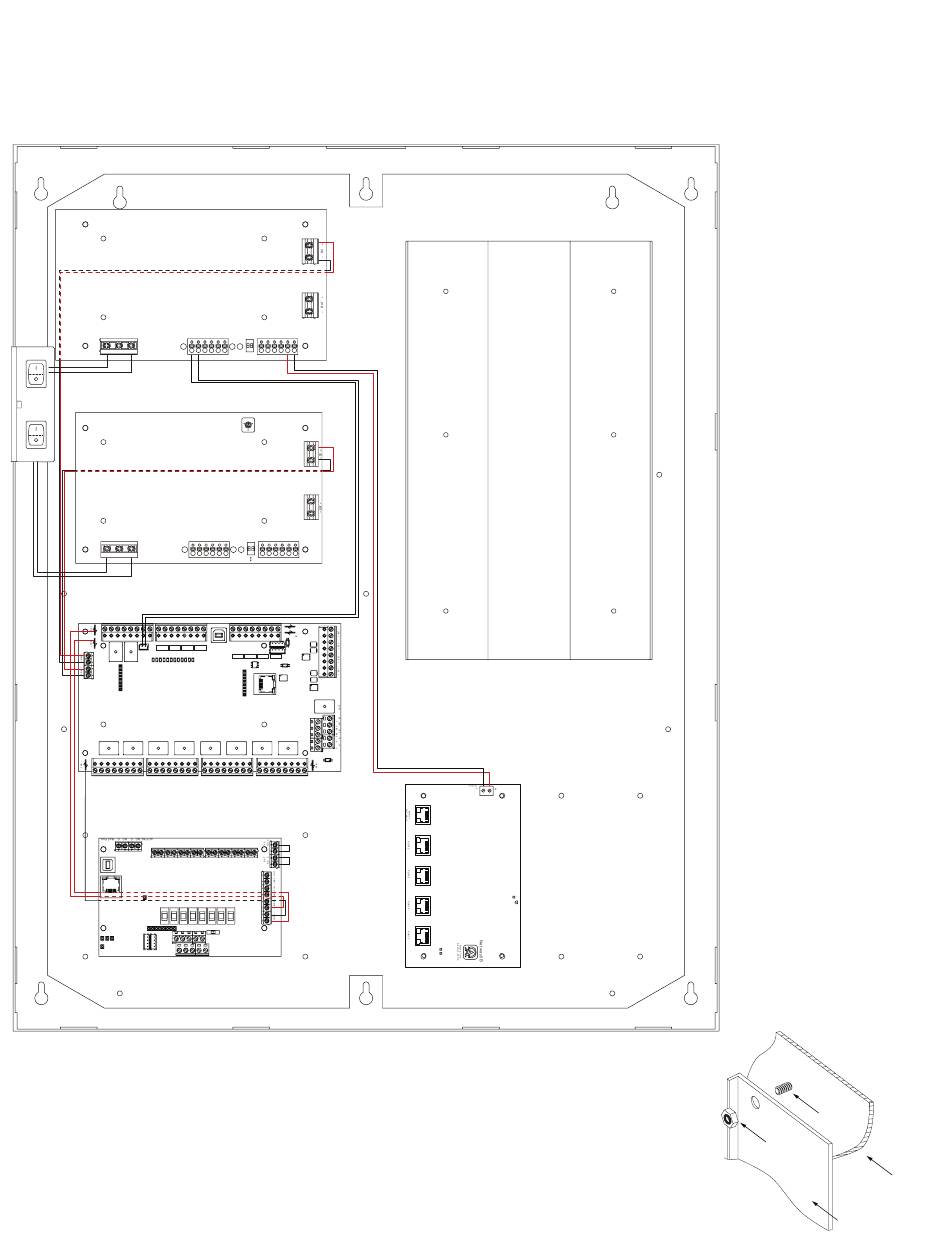

T2SSK1(D)Q: Access Controller Position Chart for the S2-INST Installation Kit:
1. Align S2-INST mounting holes with pems on TSS2 (Fig. 2, pg. 3).
2. Attach S2-INST to backplane with lock nuts (provided) (Fig. 2a, pg. 3).
3. Mount backplane to enclosure with hardware.
4. Fasten TSS2 backplane to Trove2 enclosure utilizing hardware (provided).
Fig. 2
Altronix eFlow104NB
L G N
RSB2
Altronix eFlow102NB
AC1
L G N
+ INP1 - + INP2 - + INP3 -
Tamper
BAT AC
NC C NO NC C NO
Altronix LINQ8ACM(CB)
NO C NC COM NO C NC COM NO C NC COM NO C
Altronix LINQ8PD(CB)
Trove2 S2 Q Kits Installation Guide
AC DC
1 min enable
NC C NO NC C NO TRIGGER EOL NO GND
2 hr disable + AUX -
SUPERVISED
AC FAIL BAT FAIL RESET
+PWR2
+PWR1
+ INP4 -
+ INP5 - + INP6 - + INP7 - + INP8 -
NC COM NO C NC COM NO C NC COM NO C NC COM NO C NC COM
S2-INST
Installation
Kit for
S2 Network
Node
Altronix
NetWay5B
Fig. 2a
Pem
Lock nut
Backplane
S2-INST Bracket
- 3 -
