Altronix Trove Plus T2M7LCK1 Installation Manual

Access & Power Integration
Altronix/Mercury Wired Kits
Models Include:
8 Door Kits with Fused Outputs:
T2M7LCK1
Accommodates one (1) Intelligent Dual Reader Controller and
three (3) Dual Reader Interface Modules.
6 Door Kits with Fused Outputs:
T2M7LCK2
Accommodates one (1) Intelligent Controller and three (3) Dual
Reader Interface Module.
8 Door Kits with Fused Outputs:
T2M7LCK3
Accommodates up to four (4) Dual Reader Interface Modules.

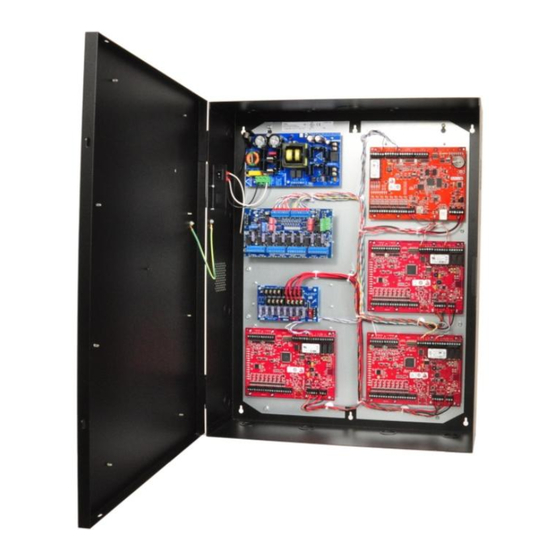

Each fully assembled kit includes:
- Trove2 enclosure with TM2 Altronix/Mercury backplane
- One (1) AL1024ULXB2 - Power Supply/Charger
- One (1) ACMS8 - Dual Input/Output Fuse Protected
Access Power Controller
- One (1) VR6 - Voltage Regulator
- One (1) PDS8 - Dual Input/Output Fuse Protected
Power Distribution Module
- One (1) Rocker Switch Bracket with One (1) Rocker Switch
(Not evaluated by UL)
- Wire harnesses and management
All components of this Trove kit are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
Installation Guide
All registered trademarks are property of their respective owners.
Rev. T2M7LCK_05022022
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
8 Door Kits with PTC Outputs:
T2M7LCK1D
Accommodates one (1) Intelligent Dual Reader Controller and
three (3) Dual Reader Interface Module.
6 Door Kits with PTC Outputs:
T2M7LCK2D
Accommodates one (1) Intelligent Controller and three (3) Dual
Reader Interface Module.
8 Door Kits with PTC Outputs:
T2M7LCK3D
Accommodates up to four (4) Dual Reader Interface Modules.
Each fully assembled kit includes:
- Trove2 enclosure with TM2 Altronix/Mercury backplane
- One (1) AL1024ULXB2 - Power Supply/Charger
- One (1) ACMS8CB - Dual Input/Output PTC Protected
Access Power Controller
- One (1) VR6 - Voltage Regulator
- One (1) PDS8CB - Dual Input/Output Fuse Protected
Power Distribution Module
- One (1) Rocker Switch Bracket with One (1) Rocker Switch
(Not evaluated by UL)
- Wire harnesses and management
