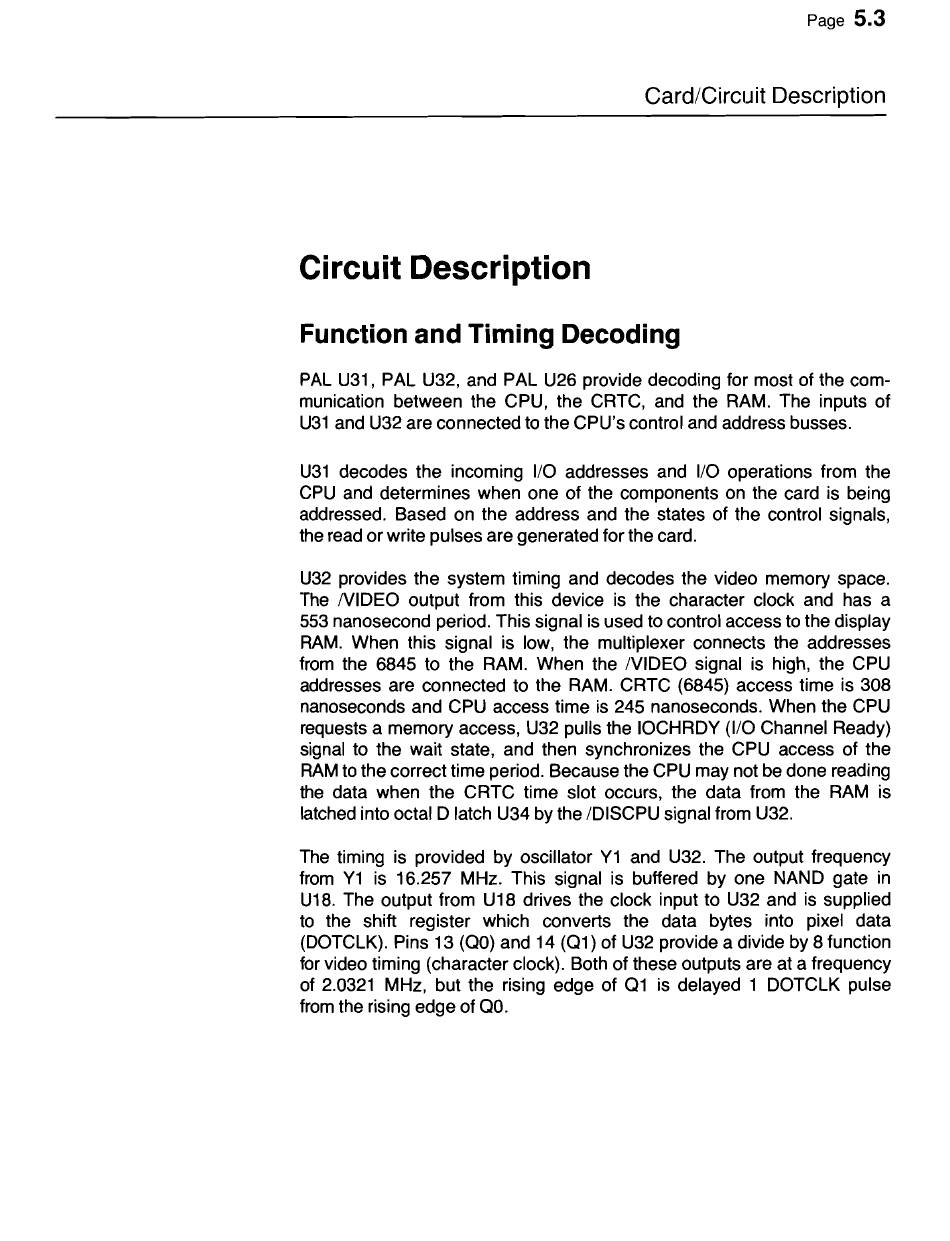

5.3
Card/Circuit Description
Circuit Description
Function and Timing Decoding
PAL U31, PAL U32, and PAL U26 provide decoding for most of the com-
munication between the CPU, the CRTC, and the RAM. The inputs of
U31 and U32 are connected to the CPU's control and address busses.
U31 decodes the incoming liD addresses and liD operations from the
CPU and determines when one of the components on the card is being
addressed. Based on the address and the states of the control signals,
the read or write pulses are generated for the card.
U32 provides the system timing and decodes the video memory space.
The NIDEO output from this device is the character clock and has a
553 nanosecond period. This signal is used to control access to the display
RAM. When this signal is low, the multiplexer connects the addresses
from the 6845 to the RAM. When the NIDEO signal is high, the CPU
addresses are connected to the RAM. CRTC (6845) access time is 308
nanoseconds and CPU access time is 245 nanoseconds. When the CPU
requests a memory access, U32 pulls the IOCHRDY
(liD
Channel Ready)
signal to the wait state, and then synchronizes the CPU access of the
RAM to the correct time period. Because the CPU may not be done reading
the data when the CRTC time slot occurs, the data from the RAM is
latched into octal D latch U34 by the IDISCPU signal from U32.
The timing is provided by oscillator Y1 and U32. The output frequency
from Y1 is 16.257 MHz. This signal is buffered by one NAND gate in
U18. The output from U18 drives the clock input to U32 and is supplied
to the shift register which converts the data bytes into pixel data
(DOTCLK). Pins 13 (00) and 14 (01) of U32 provide a divide by 8 function
for video timing (character clock). Both of these outputs are at a frequency
of 2.0321 MHz, but the rising edge of 01 is delayed 1 DOTCLK pulse
from the rising edge of 00.
