2.7
Installation, Configuration, and Initial Tests
CPU Card Configuration
The configuration switches on the CPU card must be properly set for
the computer to automatically select video from the Z-329 Card when
it is switched on. The Z-329 Card can be selected from the monitor mode
or by software regardless of the switch setting. The following instructions
describe resetting these switches.
• Locate the CPU card (Figure 2.2 or Figure 2.5).
• Unplug the keyboard from the back of the computer.
• Unplug the 4-pin connector from the front of the CPU card (Figure
2.2 or Figure 2.5).
• Remove and save the screw from the CPU mounting bracket (Figure
2.2 or Figure 2.5).
• Gently pull upward on the CPU card to remove it from the computer.
DISK CONTROLLER CARD
====~*_ 4-PIN CONNECTOR
WINCHESTER
'''"''~- CONTROLLER CARD
I
I
~
KEYBOARD CONNECTOR

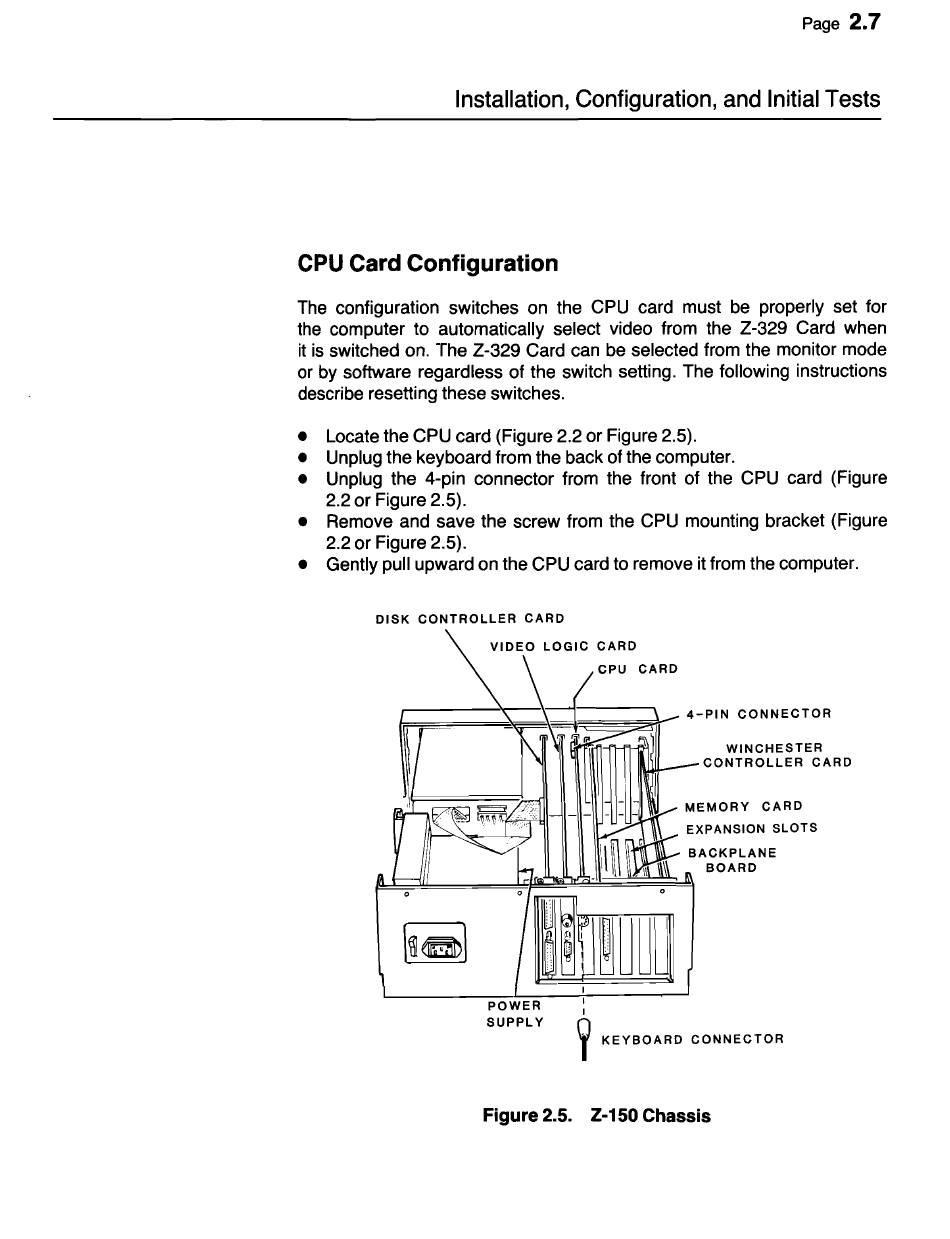

Figure 2.5. Z-150 Chassis
