Page
2.18
Installation, Configuration, and Initial Tests

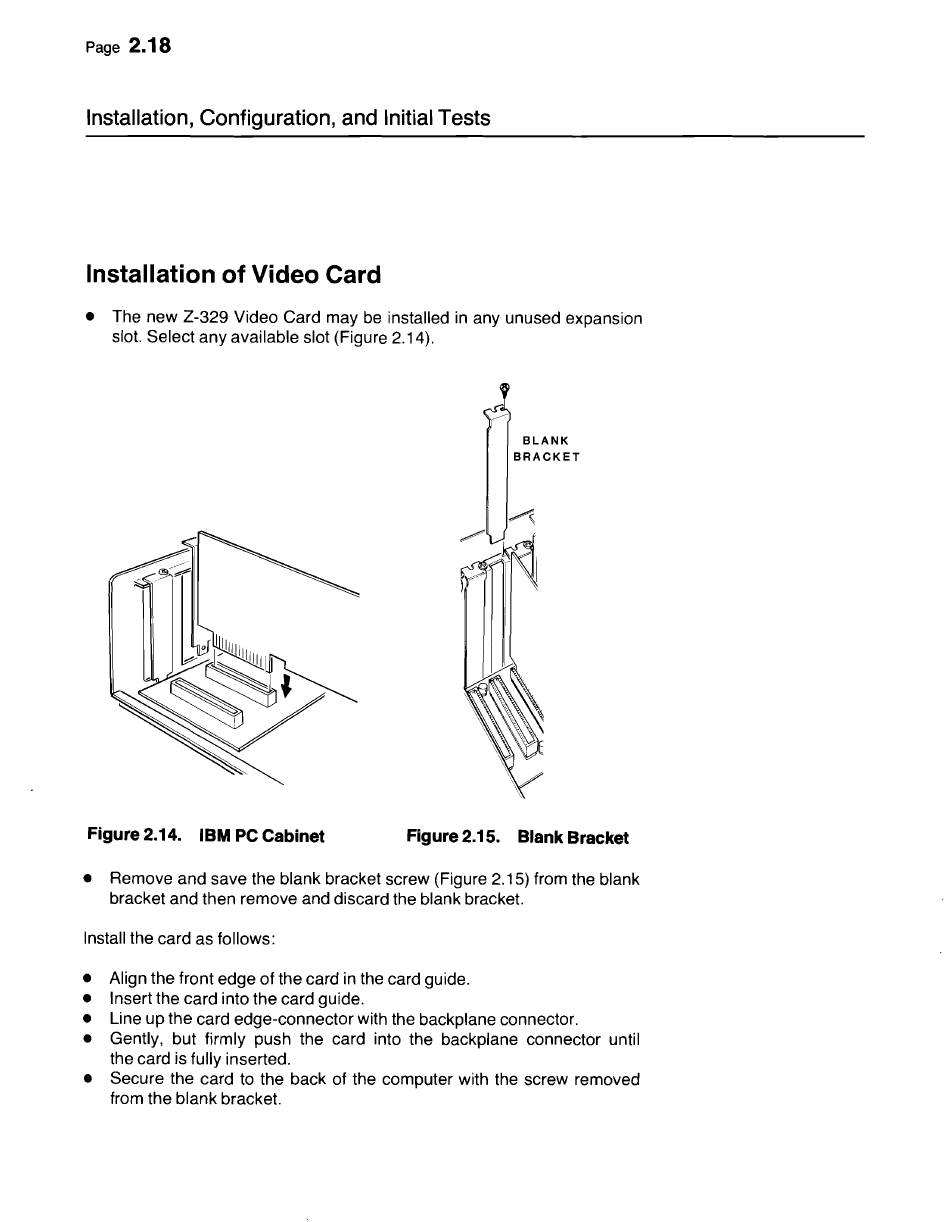

Installation of Video Card
•
The new 2-329 Video Card may be installed in any unused expansion
slot. Select any available slot (Figure 2.14).
BLANK
BRACKET
Figure 2.14.
IBM PC Cabinet
~~
'\
Figure 2.15.
Blank Bracket
•
Remove and save the blank bracket screw (Figure 2.15) from the blank
bracket and then remove and discard the blank bracket.
Install the card as follows:
•
Align the front edge of the card in the card guide.
•
Insert the card into the card guide.
•
Line up the card edge-connector with the backplane connector.
•
Gently, but firmly push the card into the backplane connector until
the card is fully inserted.
•
Secure the card to the back of the computer with the screw removed
from the blank bracket.
