Z-160 Reassembly
Use the following procedure to reassemble your Z-160 Portable Computer.
• Place the card support bracket (Figure 2.8) in position along the top
of the cards. Secure the card support bracket to the computer frame
with the card support bracket screw which was removed earlier.
• Refer to Figure 2.9. Push the drive ribbon cable and the power supply
cable(s) through the cutout in the cabinet top.
• Slide the front of the cabinet top under the lip in the front panel and
then lower the top cover onto the computer.
• Reinstall the four screws (labeled 6-32 x 3/8) which secure the cabinet
top to the computer.
• Lift the disk drive assembly into position and engage the hinge pieces
into the slots in the top cover.
SCREW
SUPPORT BRACKET
4-PIN CONNECTOR
POWER SUPPL Y
, I
, ,
~~--1l'
U-----trl!iil
B A C KPL A N E
_ BOARD
VIDEO DRIVER
BOARD
VIDEO DEFLECTION
BOARD
DISK CONTROLLER CARD
VIDEO LOGIC CARD

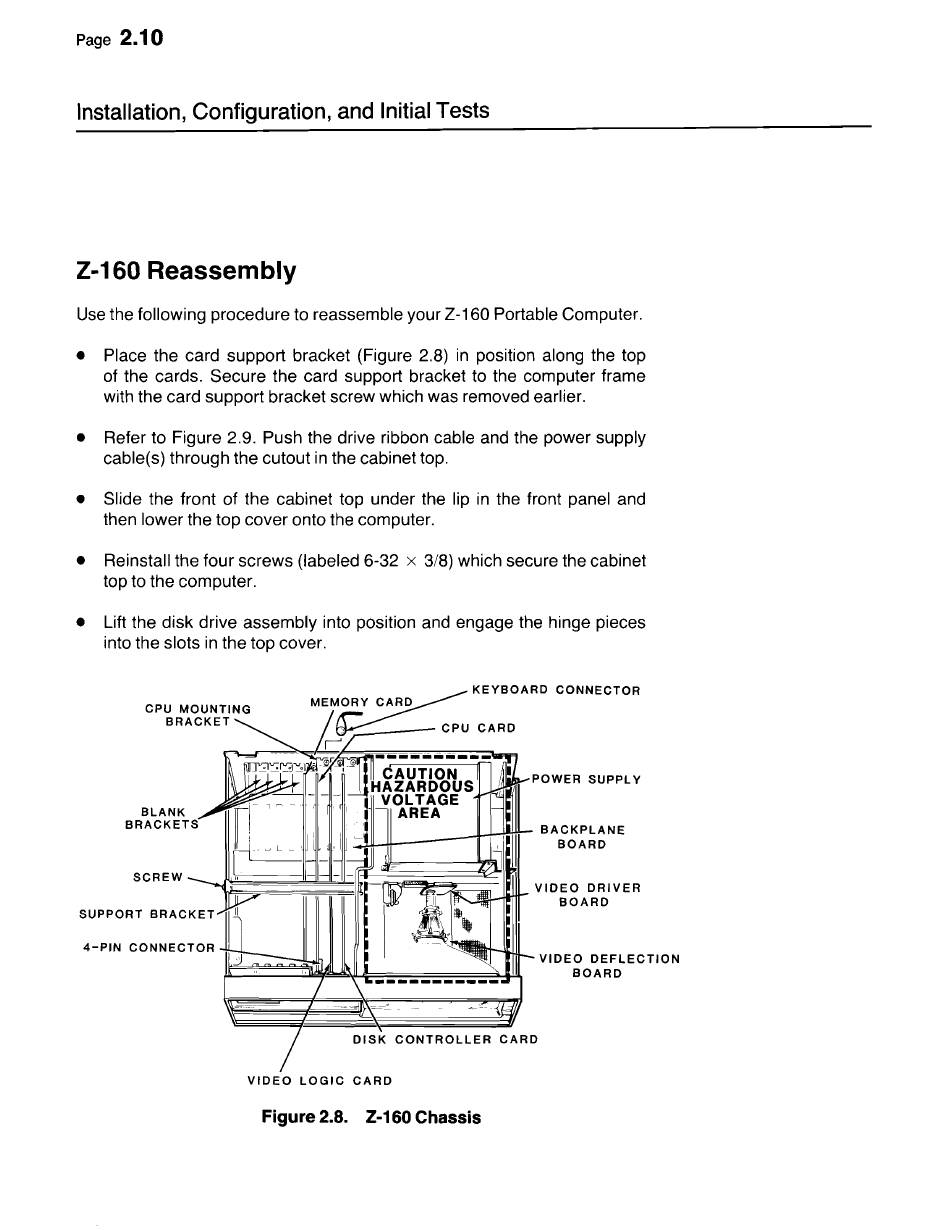

Figure 2.8. Z-160 Chassis
