Reassembly; Checkout - Zenith Data Systems Z-100 Series Installation Manual

Page
2.19
Installation, Configuration, and Initial Tests
Reassembly
• Carefully place the cover in position (Figure 2.16).
• Slide the cover toward the back until it will go no further.
• Install the screws into the back panel of the computer (there are four
screws on the PC-2 and PC-XT models, one in each back corner,
and two screws in the PC-1, located in the lower-back corners).
Proceed to the checkout procedure.
Checkout
D
Connect a monitor to the output from the Z-329 Card.
D
Connect the computer and monitor to electrical power, and switch both
units on.
D
Load the system by booting the computer.
D
A blinking cursor (or other messages, depending on the program used)
should be displayed on the monitor. This signifies that the CRTC and
most of the circuitry is operating correctly.
D
Switch off the power to the computer and remove the power plug from
the electrical outlet.

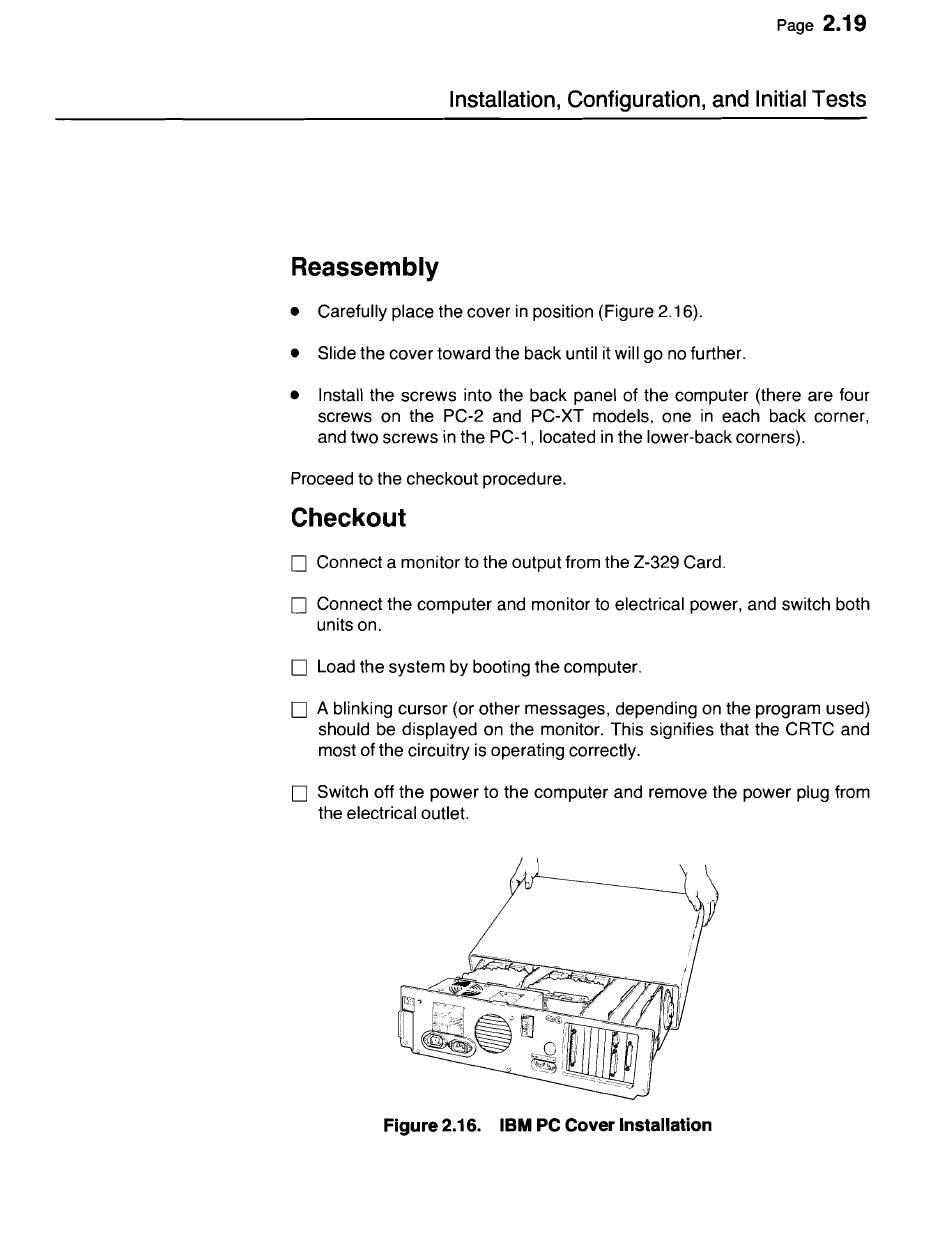

Figure 2.16. IBM PC Cover Installation
