Page
2.2
Installation, Configuration, and Initial Tests
Z-160 Disassembly
If your computer is a Z-160 Portable Computer, use the following disas-
sembly procedure.
WARNING: When the line cord is connected to an AC outlet, hazardous
voltages can be present inside your computer. Be especially cautious of
the area marked HAZARDOUS VOLTAGE in Figure 2.2.
BLANK
BRACKETS
SCREW
SUPPORT BRACKET
4-PIN CONNECTOR
I n -_ _
II
IL
. .
_-------------
CAUTION
HAZARDOUS
VOLTAGE
AREA
-----------
POWER SUPPLY
BACKPLANE
BOARD
VIDEO DRIVER
BOARD
VIDEO DEFLECTION
BOARD
DISK CONTROLLER CARD
VIDEO LOGIC CARD

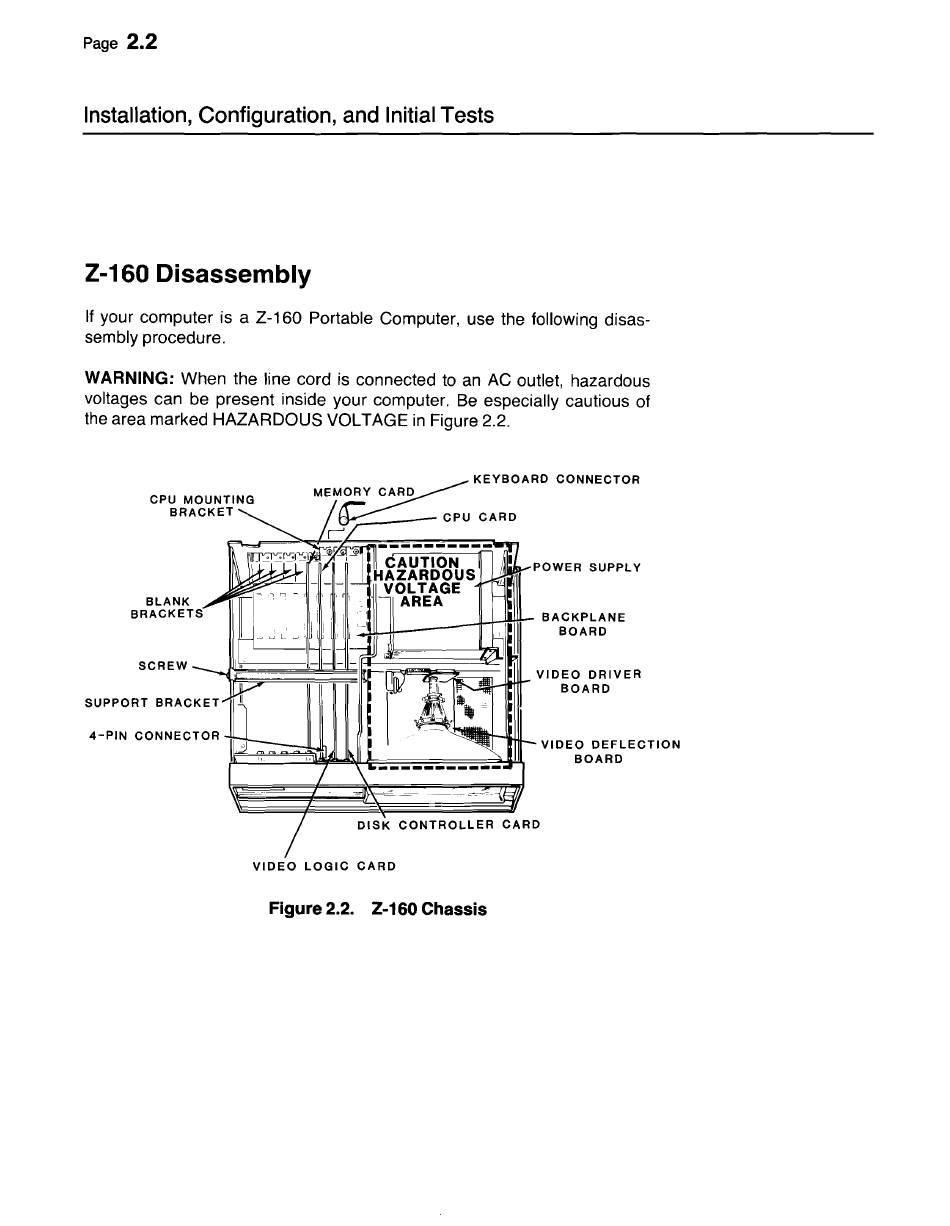

Figure 2.2.
Z-160 Chassis
