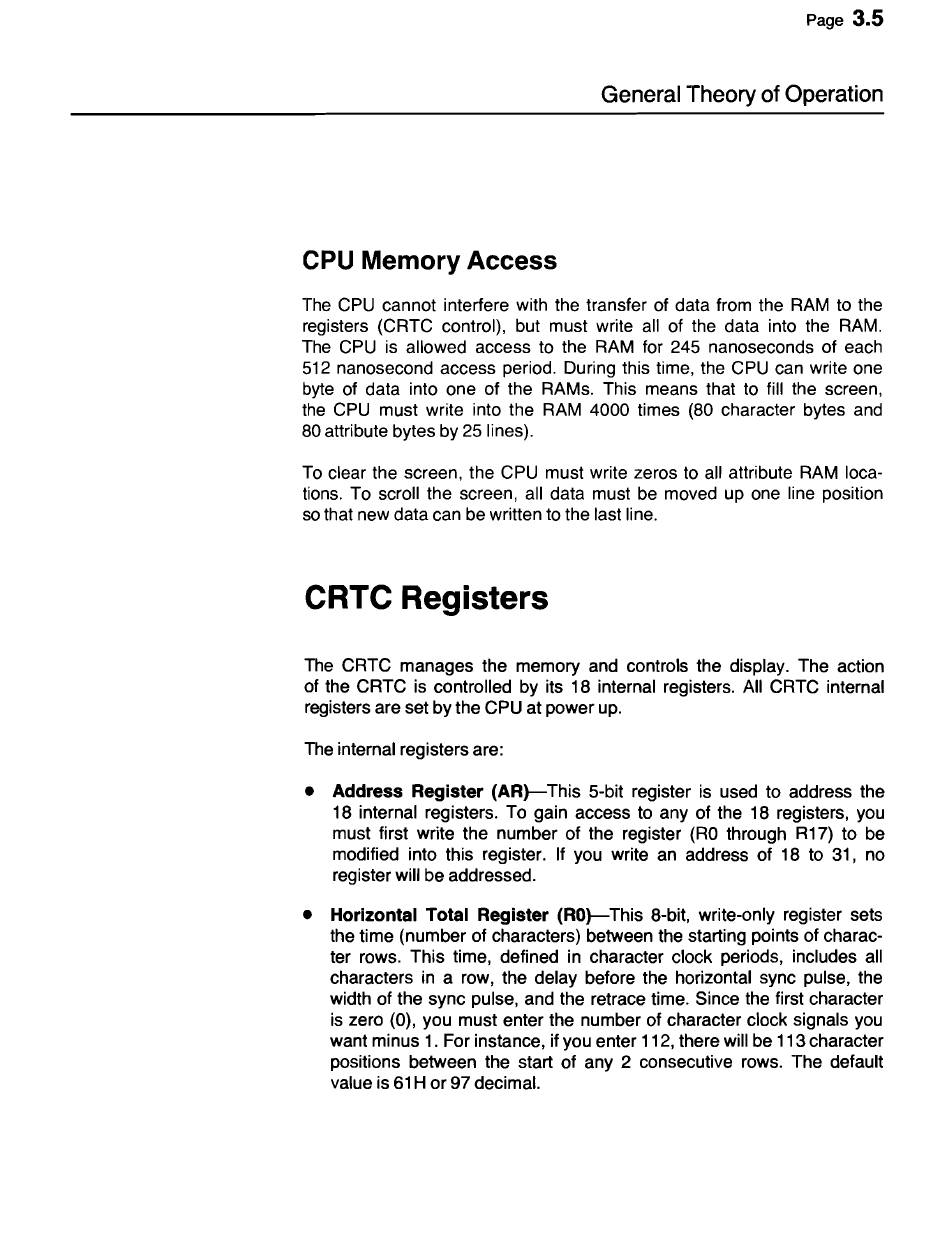

General Theory of Operation
CPU Memory Access
The CPU cannot interfere with the transfer of data from the RAM to the
registers (CRTC control), but must write all of the data into the RAM.
The CPU is allowed access to the RAM for 245 nanoseconds of each
512 nanosecond access period. During this time, the CPU can write one
byte of data into one of the RAMs. This means that to fill the screen,
the CPU must write into the RAM 4000 times (80 character bytes and
80 attribute bytes by 25 lines).
To clear the screen, the CPU must write zeros to all attribute RAM loca-
tions. To scroll the screen, all data must be moved up one line position
so that new data can be written to the last line.
CRTC Registers
The CRTC manages the memory and controls the display. The action
of the CRTC is controlled by its 18 internal registers. All CRTC internal
registers are set by the CPU at power up.
The internal registers are:
• Address Register (AR}-This 5-bit register is used to address the
18 internal registers. To gain access to any of the 18 registers, you
must first write the number of the register (RO through R17) to be
modified into this register. If you write an address of 18 to 31, no
register will be addressed.
• Horizontal Total Register (RO}-This 8-bit, write-only register sets
the time (number of characters) between the starting points of charac-
ter rows. This time, defined in character clock periods, includes all
characters in a row, the delay before the horizontal sync pulse, the
width of the sync pulse, and the retrace time. Since the first character
is zero (0), you must enter the number of character clock signals you
want minus 1. For instance, if you enter 112, there will be 113 character
positions between the start of any 2 consecutive rows. The default
value is 61 H or 97 decimal.
