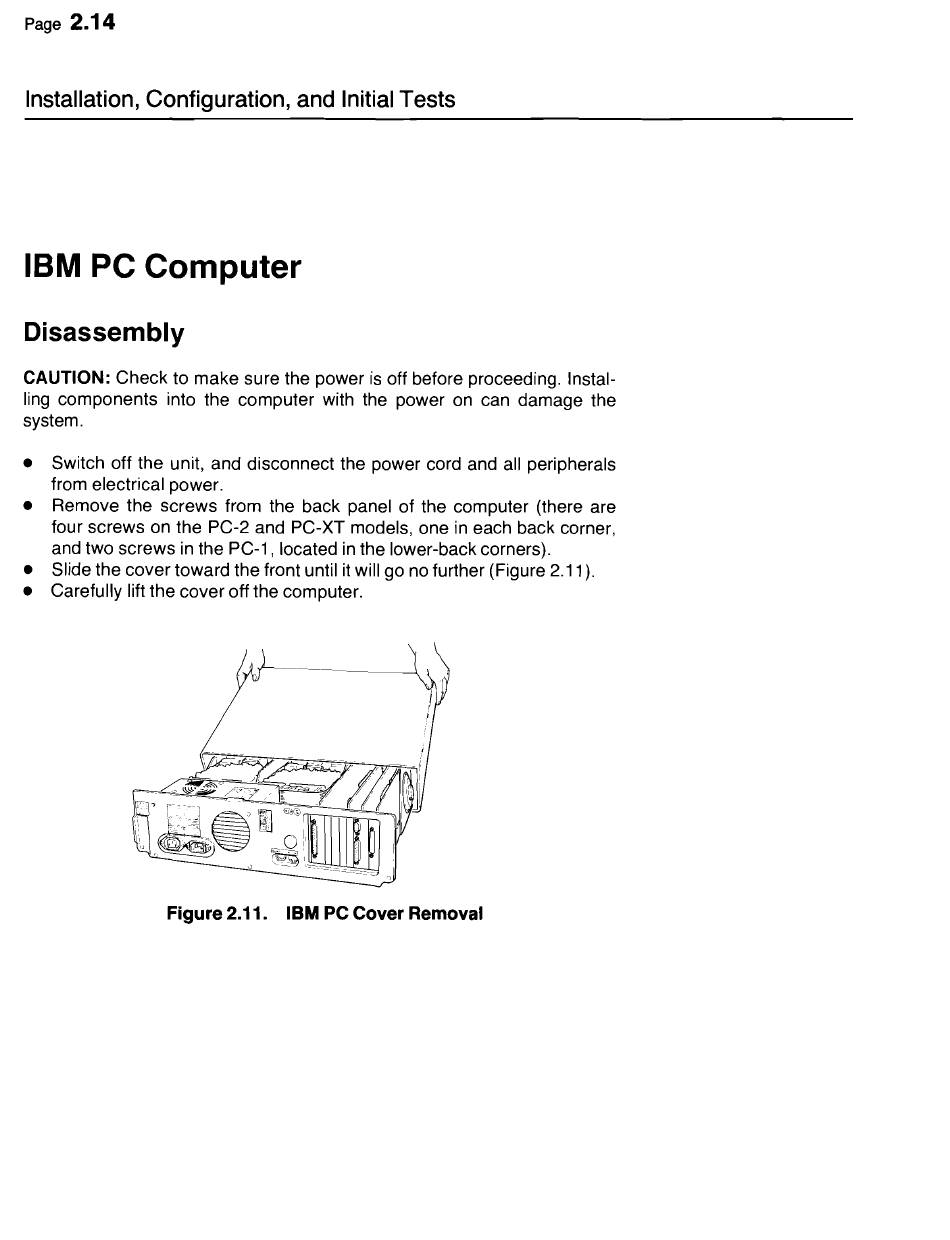

2.14
Installation, Configuration, and Initial Tests
IBM PC Computer
Disassembly
CAUTION: Check to make sure the power is off before proceeding. Instal-
ling components into the computer with the power on can damage the
system.
•
Switch off the unit, and disconnect the power cord and all peripherals
from electrical power.
•
Remove the screws from the back panel of the computer (there are
four screws on the PC-2 and PC-XT models, one in each back corner,
and two screws in the PC-1, located in the lower-back corners).
•
Slide the cover toward the front until it will go no further (Figure 2.11).
•
Carefully lift the cover off the computer.
Figure 2.11.
IBM PC Cover Removal
