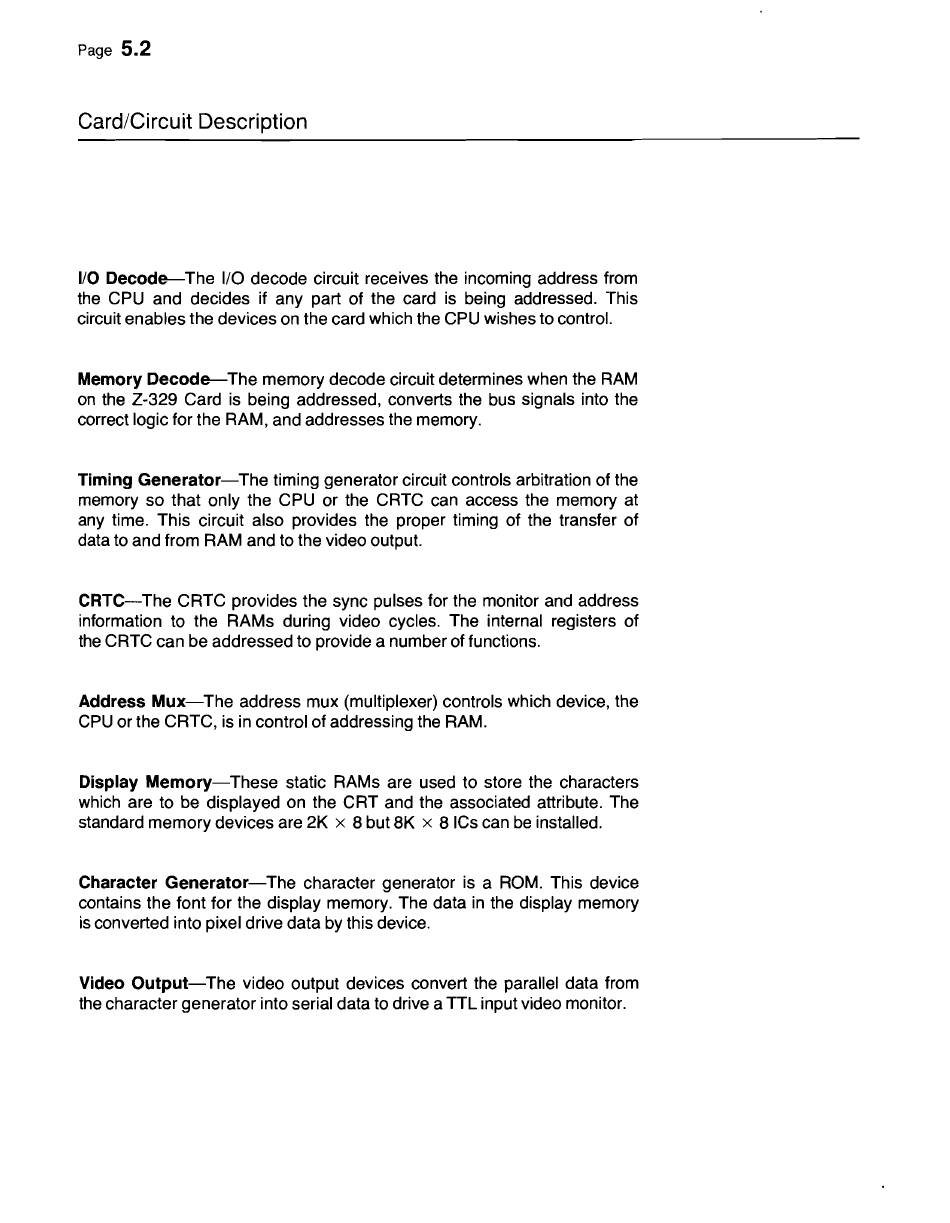

5.2
Card/Circuit Description
I/O Decode---The I/O decode circuit receives the incoming address from
the CPU and decides if any part of the card is being addressed. This
circuit enables the devices on the card which the CPU wishes to control.
Memory Decode---The memory decode circuit determines when the RAM
on the Z-329 Card is being addressed, converts the bus signals into the
correct logic for the RAM, and addresses the memory.
Timing Generator-The timing generator circuit controls arbitration of the
memory so that only the CPU or the CRTC can access the memory at
any time. This circuit also provides the proper timing of the transfer of
data to and from RAM and to the video output.
CRTC-The CRTC provides the sync pulses for the monitor and address
information to the RAMs during video cycles. The internal registers of
the CRTC can be addressed to provide a number of functions.
Address Mux-The address mux (multiplexer) controls which device, the
CPU or the CRTC, is in control of addressing the RAM.
Display Memory-These static RAMs are used to store the characters
which are to be displayed on the CRT and the associated attribute. The
standard memory devices are 2K x 8 but 8K x 8 ICs can be installed.
Character Generator-The character generator is a ROM. This device
contains the font for the display memory. The data in the display memory
is converted into pixel drive data by this device.
Video Output-The video output devices convert the parallel data from
the character generator into serial data to drive a TTL input video monitor.
