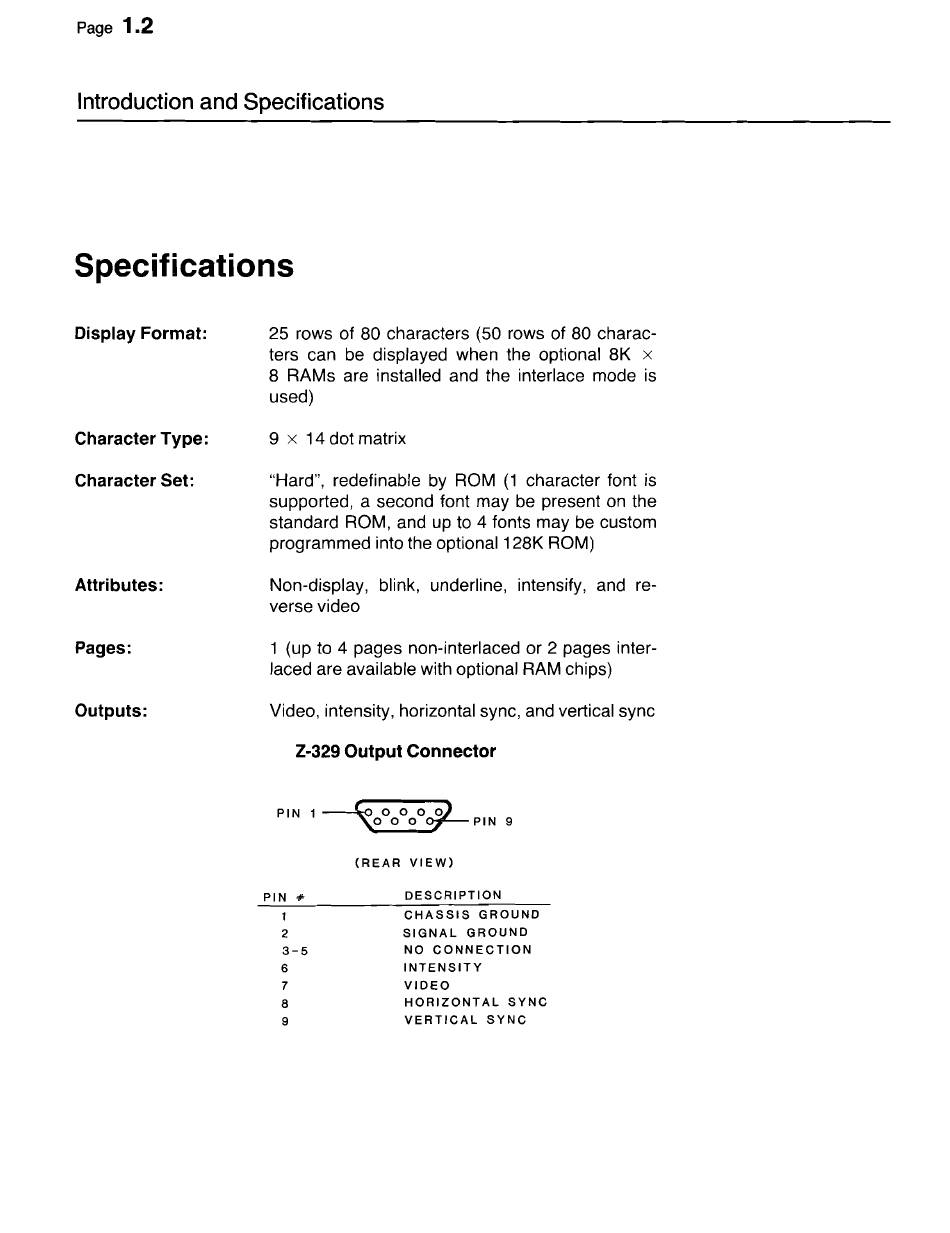

1.2
Introduction and Specifications
Specifications
Display Format:
Character Type:
Character Set:
Attributes:
Pages:
Outputs:
25 rows of 80 characters (50 rows of 80 charac-
ters can be displayed when the optional 8K x
8 RAMs are installed and the interlace mode is
used)
9 x 14 dot matrix
"Hard", redefinable by ROM (1 character font is
supported, a second font may be present on the
standard ROM, and up to 4 fonts may be custom
programmed into the optional 128K ROM)
Non-display, blink, underline, intensify, and re-
verse video
1 (up to 4 pages non-interlaced or 2 pages inter-
laced are available with optional RAM chips)
Video, intensity, horizontal sync, and vertical sync
Z-329 Output Connector
(REAR VIEW)
PIN
#
1
2
3-5
6
7
8
9
DESCRIPTION
CHASSIS GROUND
SIGNAL GROUND
NO CONNECTION
INTENSITY
VIDEO
HORIZONTAL SYNC
VERTICAL SYNC
