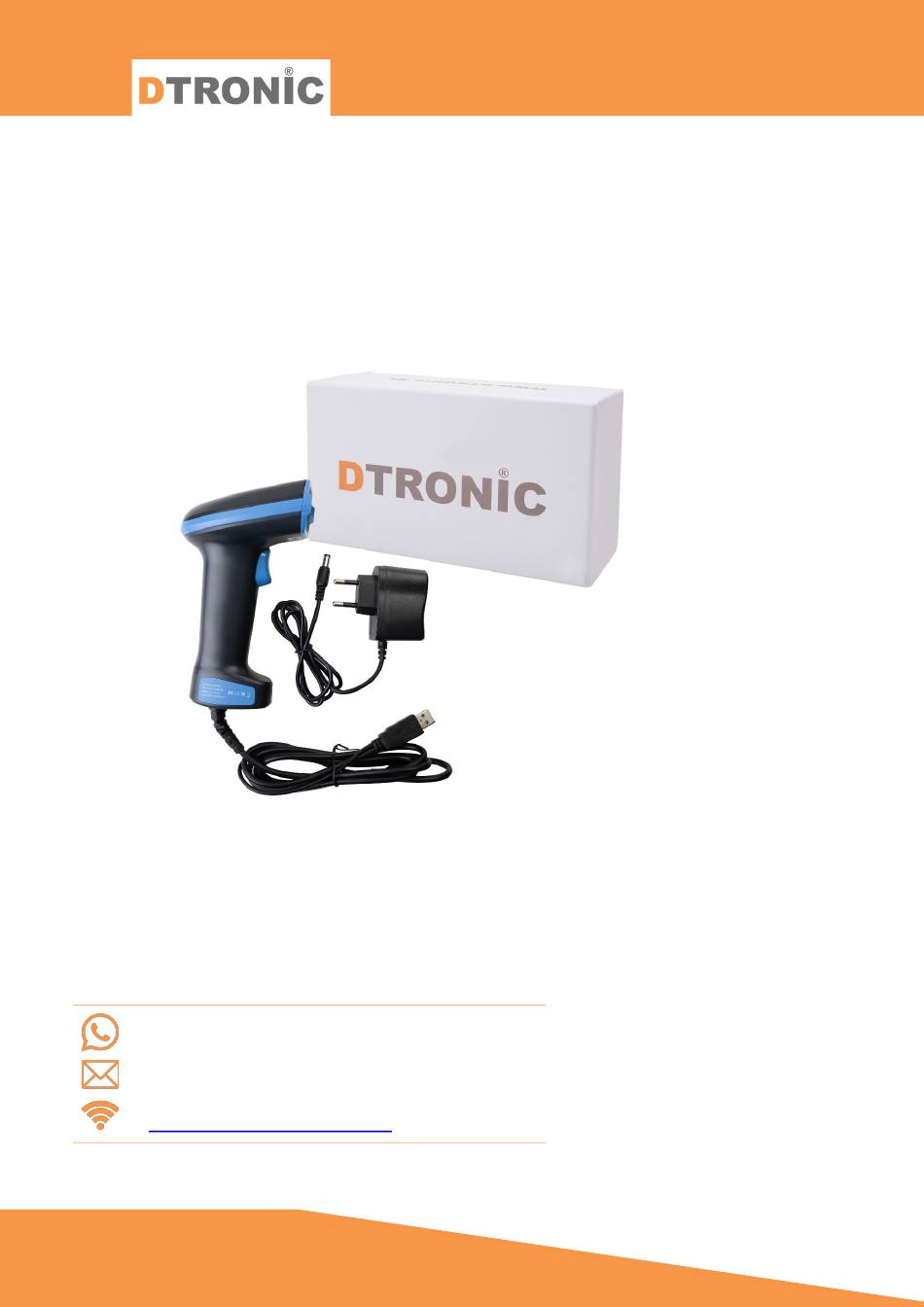

- Page 1 User Manual DT332-D Barcodescanner – DT332-D 0645733500 info@diwolar.nl https://www.dtronic.nl/ Datum : 23-8-2023 Versie : 1.0...
- Page 2 Gebruikershandleiding ‘DT332-D’ Introduction Thank you for trusting a product from DTRONIC. Please read the contents of the user manual carefully in order to use the products safely and effectively. You are advised to keep this manual correctly for your installation and as a reference. Please do not disassemble the product or tear off the seal, otherwise we will not provide warranty or replacement service.
- Page 3 Gebruikershandleiding ‘DT332-D’ INHOUDSOPGAVE Inhoud INTRODUCTION .......................... 2 1. PRODUCT ..........................4 Function ..........................4 Unbox ..........................4 Start ..........................4 Window ..........................4 Reading ..........................5 Picture ..........................5 Led indicator ........................5 2. SYSTEM SETUP ........................6 System Setup ........................6 2.1.1 Setup code ......................
- Page 4 - Basically the scanner scans the 95% of bar codes, remaining 5% can be set as desired with this manual. - There are patented parts in the scanner, DTRONIC has the rights to sell these items on the Dutch, Belgian and German market 1.2 Unbox...
-
Page 5: Led Indicator
Gebruikershandleiding ‘DT332-D’ 1.5 Reading If the bar code is small, it should be closer to the scan window; if the bar code is large, it should be further away from the scan window for easier reading. If the bar code is highly reflective (for example, the coated surface), you may need to tilt the bar code at an angle to scan the bar code. -
Page 6: System Setup
Gebruikershandleiding ‘DT332-D’ 2. System Setup 2.1 System Setup Option and function setting mainly by reading a series of special bar codes. In this chapter, we give you a detailed introduction to the options and functions available for user setup and the corresponding setup code. -
Page 7: Communication Settings
Gebruikershandleiding ‘DT332-D’ Pulse trigger mode 2.3 Communication settings 2.3.1 Communication settings USB HID (default) USB CDC serial port 2.3.2 USB keyboard Portuguese (Brazil) cannot output "?" and "/" . Nederlands Italian Spanish (Brazil) Portuguese Portuguese (Brazil) French German (Austria) Turkish Q... -
Page 8: Data Format Setting
Gebruikershandleiding ‘DT332-D’ Japanese German (Switzerland) French (Belgium) 2.4 Data format setting Length of custom prefix and suffix: (0~10) characters, if set to "on", "Code ID prefix", "custom prefix", "end suffix", etc. will be added before and after the decoding information. "Custom suffix", "End suffix", etc. -
Page 9: Ean 13 Settings
Gebruikershandleiding ‘DT332-D’ 2.4.2 Symbologies Each type of barcode has its own unique properties, and the setup codes in this chapter allow you to adjust the scanner to accommodate these property changes. The fewer barcode types that are turned on, the faster the scanner will Scan. You can turn off the barcode types that will not be used to improve the performance of the scanner. - Page 10 Gebruikershandleiding ‘DT332-D’ 2.4.7 QR Settings Enable Disable 2.4.8 UPC-A settings Enable Disable 2.4.9 UPC-E settings UPC-E on (default) UPC-E Off 2.4.10 Code 39 Settings Code 39 on (default) Code 39 Off 2.4.11 Code 128 settings Code 128 on (default) Code 128 Off...
-
Page 11: Code 93 Settings
Gebruikershandleiding ‘DT332-D’ 2.4.12 Code 93 settings Code 93 On (default) Code 93 Off 2.4.13 Codabar Settings Codabar on (default) Codabar Off 2.4.14 Interleave 2 of 5 (ITF5) setting ITF5 on (default) ITF5 off ITF14 Enable ITF14 Disable Datum : feb-2024 pagina 11 van 11 Versie : 1.0...
