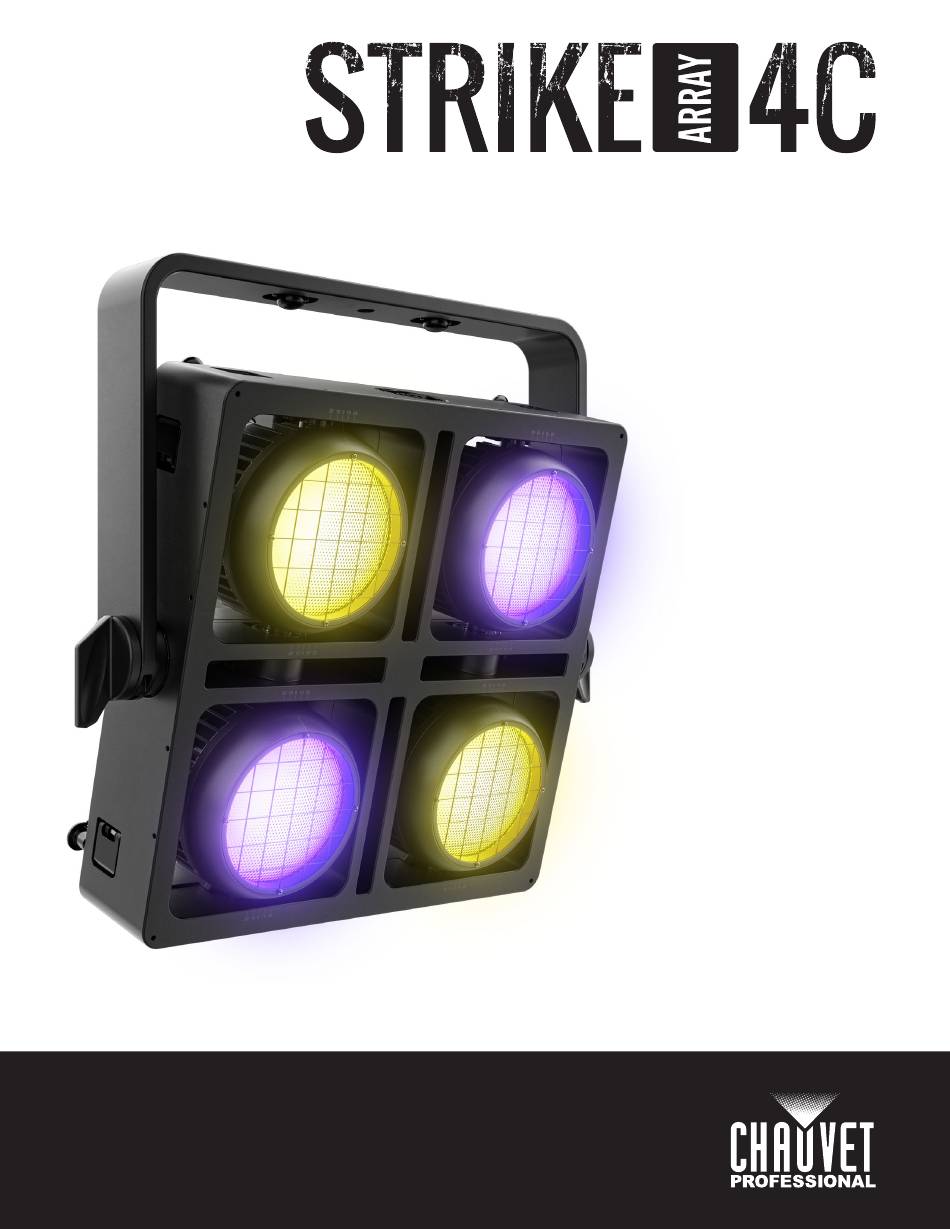

- Page 1 User Manual Model ID: STRIKEARRAY4C...
- Page 2 Edition Notes The STRIKE Array 4C User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the STRIKE Array 4C as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and STRIKE are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
Control Panel Description ................Programming....................Passcode ...................... Menu Map ..................... Control Configuration ..................Control Mode...................... 15 Control Personalities ..................15 Starting Address....................16 Ethernet Settings....................16 IP Mode ........................Universe ........................Start Channel......................IP Address ....................... STRIKE Array 4C User Manual Rev. 1... - Page 4 Home........................22 Settings ......................22 Output ........................ 22 Security ......................22 5. Maintenance................Product Maintenance ..................Torque Measurements .................. Vacuum Test Measurements ................ 6. Technical Specifications ............Contact Us ..................Warranty & Returns..................STRIKE Array 4C User Manual Rev. 1...
-
Page 5: Before You Begin
Any reference to data or power connections in this manual assumes the use of Seetronic IP rated cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. STRIKE Array 4C User Manual Rev. 1... -
Page 6: Safety Notes
• In the event of a serious operating problem, stop using immediately. If this Chauvet product requires service, contact Chauvet Technical Support. STRIKE Array 4C User Manual Rev. 1... -
Page 7: Fcc Statement Of Compliance
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. STRIKE Array 4C User Manual Rev. 1... -
Page 8: Introduction

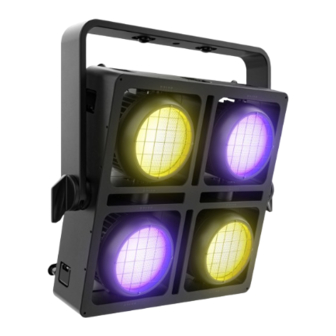

2. Introduction Description The STRIKE Array 4C is an IP65-rated audience blinder with four independently focusable pods. Intense RGBA-WW LED output delivers a full range of color as well as a wide choice of white color temperatures with exceptional color rendering. Industry leading low end dimming performance includes Red Shift which warms the color temperature of the output as it dims to emulate a classic tungsten look. -
Page 9: Product Dimensions
383.3 mm 15.09 in 383.3 mm 19.17 in 487.2 mm 16.70 in 424.21 mm 4.55 in 115.6 mm 16.65 in 423 mm 8.10 in 6.45 in 205.84 mm 2.17 in 163.84 mm 55 mm STRIKE Array 4C User Manual Rev. 1... -
Page 10: Setup
3. Setup AC Power The STRIKE Array 4C has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 11: Signal Connections
DMX controller, download the DMX Primer from the Chauvet website: www.chauvetprofessional.com. DMX Linking It is possible to link the STRIKE Array 4C to a DMX controller using a 5-pin DMX connection. For more information about DMX, read the DMX primer at: https://www.chauvetprofessional.com/wp-content/ uploads/2016/06/DMX_Primer.pdf. -
Page 12: Mounting
When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The STRIKE Array 4C comes with an Omega bracket. The user can directly attach a mounting clamp to this Omega bracket. Make sure the clamp is capable of supporting the weight of this product. For the Chauvet Professional line of mounting clamps, go to http://www.trusst.com/products. -
Page 13: Multi-Product Mounting
Setup Multi-Product Mounting The STRIKE Array 4C has an interlocking system to connect multiple STRIKE Array 4C or STRIKE Array 2C products together, vertically or horizontally. Multi-Product Mounting Diagram Press and hold the latch button to remove or insert the retaining pins... -
Page 14: Mounting Products Attached In Series
When using the omega bracket, never hang more than 16 cells vertically from a single mounting point. • When not using the omega bracket, never hang more than 8 cells vertically from a single mounting point. STRIKE Array 4C User Manual Rev. 1... -
Page 15: Vertical Mounting Stability
When mounting products attached in series, use omega brackets in the back position to create a spine. This will prevent any motion which may damage the products. Mounting clamps Omega brackets Pole or pipe for stability STRIKE Array 4C User Manual Rev. 1... -
Page 16: Operation
Press <MENU> repeatedly to exit to the previous main level. Passcode After being prompted to enter the passcode, press <UP>, <DOWN>, <UP>, <DOWN>, <ENTER>. Menu Map Refer to the STRIKE Array 4C product page on www.chauvetprofessional.com for the latest menu map. Main Menu... - Page 17 <000–255> 4500K Color Temperature Chart for specific values. 5000K 5600K 6000K 6500K Green Manual Color Combines red, green, blue, amber, and Blue <000–255> Mixer white to make a custom color (0–100%) Amber White STRIKE Array 4C User Manual Rev. 1...
- Page 18 Display backlight always on Locks display (password: <UP>, Key Lock <DOWN>, <UP>, <DOWN>, <ENTER>) Manual Manually set IP address Ethernet IP Mode DHCP Network sets IP address Setting Static Product sets IP address STRIKE Array 4C User Manual Rev. 1...
-
Page 19: Control Configuration
Use control configurations to operate the product with a DMX, Art-Net™, or sACN controller. Control Mode The STRIKE Array 4C works with DMX, Art-Net™, and sACN control signals. To select the protocol: 1. Go to the Protocol main level. 2. Select the desired protocol, from DMX512, ArtNet, or sACN. -
Page 20: Starting Address
IP Mode It is possible to set the IP address of the STRIKE Array 4C manually, by the network, or to a preset static address specific to each product. To set the IP mode, follow the instructions below: 1. -
Page 21: Virtual Color Wheel
Operation Virtual Color Wheel The STRIKE Array 4C includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode and as a control channel in select DMX personalities. More than 30 premixed colors, custom blended by Chauvet engineers, are available to call up for easier programming. -
Page 22: Color Temperature Chart
000 255 0–100% Blue 2 000 255 0–100% Amber 2 000 255 0–100% White 2 000 255 0–100% Red 3 000 255 0–100% Green 3 000 255 0–100% STRIKE Array 4C User Manual Rev. 1... -
Page 23: 16Ch / 13Ch / 12Ch / 10Ch / 7Ch / 5Ch / 3Ch
Control Chart Channel Function Value Percent/Setting 000 255 0–100% Saturation 000 255 0–100% Value 000 255 0–100% Channel Function Value Percent/Setting Dimmer 000 255 0–100% (color set through display menu) STRIKE Array 4C User Manual Rev. 1... -
Page 24: Standalone Configuration
1. Go to the Red Shift main level. 2. Select from On or Off. Master/Slave To set the STRIKE Array 4C product to master or slave mode: 1. Go to the Master/Slave main level. 2. Select from Master (sends control signal) or Slave (receives control signal). -
Page 25: Dimmer Speed Mode
To view the temperatures of the LEDs, driver boards, or the display board in °C, go to the Temperature main level. Factory Reset To reset the product to factory default settings: 1. Go to the Factory Reset main level. 2. Select No (do not reset) or Yes (reset). STRIKE Array 4C User Manual Rev. 1... -
Page 26: Web Server
Operation Web Server The STRIKE Array 4C Web Server can be accessed by any computer on the same network as the product. It allows network access to system information, settings such as control protocol and starting address, color output testing, and the ability to change the Web Server password. -
Page 27: Maintenance
Power, USB, and DMX connectors 5.20776 Back cover 5.20776 Top cover 3.47184 Vacuum Test Measurements Use the IP Tester from Chauvet Professional to ensure the product has been reassembled correctly by following the information below: Parameters Values Method Positive Test pressure... -
Page 28: Technical Specifications
1, 3, 5, 7, 10, 12, 13, 16, 22 or 5-pin XLR Seetronic Etherkon Ordering Product Name Item Name Item Code UPC Number STRIKE Array 4C STRIKEARRAY4C 03052065 781462224134 UL 1573 CSA C22.2 No. 166 E113093 STRIKE Array 4C User Manual Rev. 1... -
Page 29: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. STRIKE Array 4C User Manual Rev. 1...
