- Page 1 User Manual Model ID: ROGUEOUTCAST2XWASH...
- Page 2 Edition Notes The Rogue Outcast 2X Wash User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Rogue Outcast 2X Wash as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, Rogue, Outcast, and Rogue Outcast are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
Control Chart...................... 12 Advanced Modes ....................13 Basic Modes....................... 14 MS Modes ......................15 Configuration (Settings) ................Pan Reverse ...................... 16 Tilt Reverse ......................16 Pan Angle......................16 Tilt Angle ......................16 Rogue Outcast 2X Wash User Manual Rev. 1... - Page 4 Factory Reset..................... 18 Test Mode ..................... Auto Test......................18 Manual Test ....................... 18 System Information ..................Offset Mode (Zero Adjust)................5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Returns.................... Contact Us ..................Rogue Outcast 2X Wash User Manual Rev. 1...
-
Page 5: Before You Begin
2. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Rogue Outcast 2X Wash User Manual Rev. 1 Page 1 of 22... -
Page 6: Safety Notes
• Make sure to replace the fuse with another of the same type and rating. • Never disconnect this product by pulling or tugging on the power cable. Page 2 of 22 Rogue Outcast 2X Wash User Manual Rev. 1... -
Page 7: Operation
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Rogue Outcast 2X Wash User Manual Rev. 1 Page 3 of 22... -
Page 8: Introduction

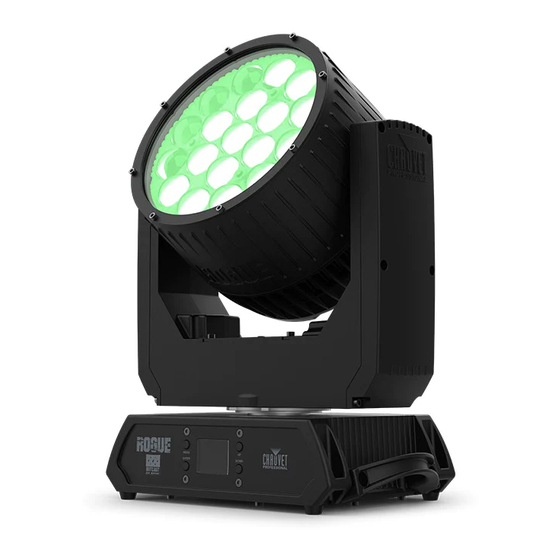

2. Introduction Description The Rogue Outcast 2X Wash is an IP65 moving head that outputs a bright, powerful light and offers five zones of LED control for pixel mapping. The outdoor-ready unit features a durable, lightweight aluminum/ magnesium alloy body and a standout zoom range of 8° to 66.1°, giving it the spread to cover even the largest areas. -
Page 9: Product Dimensions
216 mm 218 mm 6.99 in 177 mm 9.37 in 238 mm 14.1 in 361 mm 2.91 in 74 mm 11.92 in 7.55 in 303 mm 192 mm Rogue Outcast 2X Wash User Manual Rev. 1 Page 5 of 22... -
Page 10: Setup
Power Linking The product supports power linking. It is possible to power link up to 4 Rogue Outcast 2X Wash products at 100 V, 5 products at 120 V, 9 products at 208 V, 10 products at 230 V, or up to 11 products at 240 V. -
Page 11: Mounting
When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Rogue Outcast 2X Wash comes with 2 omega brackets to which you can directly attach mounting clamps (sold separately). Make sure the clamps are capable of supporting the weight of this product. Use at least two mounting points per product. -
Page 12: Operation
Navigates upwards through the menu list or increases the value when in a function <DOWN> Navigates downwards through the menu list or decreases the value when in a function Menu Map Refer to the Rogue Outcast 2X Wash product page on www.chauvetprofessional.com for the latest menu map. - Page 13 Uses maximum output values Color RED 100–255 Sets red LED maximum value calibration Custom GREEN 000–255 Sets green LED maximum value BLUE 000–255 Sets blue LED maximum value Rogue Outcast 2X Wash User Manual Rev. 1 Page 9 of 22...
-
Page 14: Configuration (Dmx)
The highest recommended starting address for 15CH is 498. • The highest recommended starting address for 54MS is 459. • The highest recommended starting address for 33MS is 480. Page 10 of 22 Rogue Outcast 2X Wash User Manual Rev. 1... -
Page 15: Control Channel Assignments And Values
130 134 Color 26 235 249 Color snap, fast to slow 065 069 Color 13 135 139 Color 27 250 255 No function Rogue Outcast 2X Wash User Manual Rev. 1 Page 11 of 22... -
Page 16: Zone Selection Chart
075 099 Reserved for future use 150 154 Square dimmer curve 240 247 Color calibration on 100 104 Tilt range 260° 248 255 Color calibration off Inverse square 155 159 dimmer curve 105 109 Tilt range 180° Page 12 of 22 Rogue Outcast 2X Wash User Manual Rev. 1... -
Page 17: Advanced Modes
000 255 0–100% – Fine green 5 000 255 Fine control (16-bit) Blue 5 000 255 0–100% – Fine blue 5 000 255 Fine control (16-bit) Rogue Outcast 2X Wash User Manual Rev. 1 Page 13 of 22... -
Page 18: Basic Modes
000 255 0–100% – – Fine white 000 255 Fine control (16-bit) Color 000 255 See Color Chart – Zone Selection 000 255 See Zone Selection Chart Page 14 of 22 Rogue Outcast 2X Wash User Manual Rev. 1... -
Page 19: Ms Modes
000 255 0–100% – Fine white 3 000 255 Fine control (16-bit) Red 4 000 255 0–100% – Fine red 4 000 255 Fine control (16-bit) Rogue Outcast 2X Wash User Manual Rev. 1 Page 15 of 22... -
Page 20: Configuration (Settings)
1. Go to the Setup main level. 2. Select the Display option. 3. Select the length of the backlight timer, from OFF (will turn off) or ON (always on). Page 16 of 22 Rogue Outcast 2X Wash User Manual Rev. 1... -
Page 21: Screen Reverse
3. Select NO (disables software update through USB) or YES (enables software update through USB). See the USB Software Update section for the detailed instructions on how to update the Rogue Outcast 2X Wash software using a USB C connection. Rogue Outcast 2X Wash User Manual Rev. 1 Page 17 of 22... -
Page 22: Reset Function
3. Select NO (to cancel) or YES (to reset the product configuration). Test Mode Auto Test To have the Rogue Outcast 2X Wash automatically test all functions one after the other: 1. Go to the Run Mode main level. 2. Select the Auto Test option. -
Page 23: Maintenance
7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans with compressed air. Damage may result. Rogue Outcast 2X Wash User Manual Rev. 1 Page 19 of 22... -
Page 24: Technical Specifications
15, 17, 22, 33, 54, or 56 Ordering Product Name Item Name Item Code UPC Number Rogue Outcast 2X Wash ROGUEOUTCAST2XWASH 08011935 781462222833 UL 1573 CSA C22.2 No. 166 E113093 Page 20 of 22 Rogue Outcast 2X Wash User Manual Rev. 1... -
Page 25: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Rogue Outcast 2X Wash User Manual Rev. 1 Page 21 of 22... -
Page 26: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Page 22 of 22 Rogue Outcast 2X Wash User Manual Rev. 1...
