- Page 1 User Manual Model ID: OVATIONE2FC...
- Page 2 Edition Notes The Ovation E-2 FC User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Ovation E-2 FC as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, Rogue, Outcast, and Rogue Outcast are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
DMX Channel Assignments and Values ............17 Ch / 13 Ch2 / 13 Ch1 / 11 Ch / 7 Ch / 5 Ch / 4 Ch ........15 HSV........................16 1 Ch........................16 Ovation E-2 FC User Manual Rev. 1... - Page 4 Pulse Width Modulation ..................18 Fan Mode ......................18 Display Backlight Timer..................18 Information ......................18 Factory Reset..................... 18 5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Ovation E-2 FC User Manual Rev. 1...
-
Page 5: Before You Begin
2. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Ovation E-2 FC User Manual Rev. 1... -
Page 6: Safety Notes
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Ovation E-2 FC User Manual Rev. 1... -
Page 7: Introduction

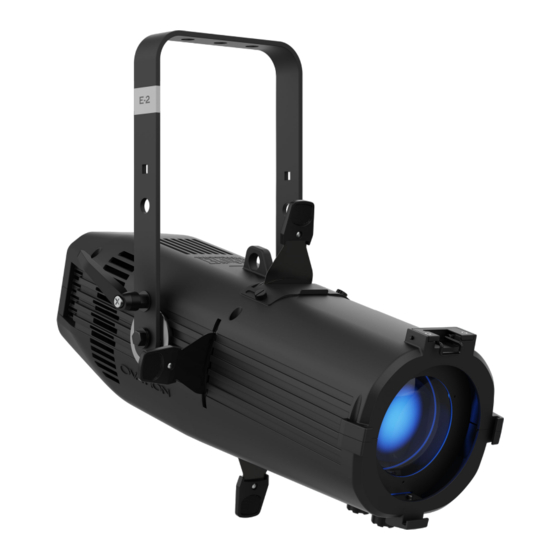

2. Introduction Description The Ovation E-2 FC is a compact LED ellipsoidal spotlight that delivers high quality of light and convenient features in a quiet durable design optimized for smaller venues. Its advanced full spectrum Ovation RGBA- Lime color mixing system produces exceptionally high CRI output that can be smoothly sized with an integrated manual Zoom and focusing made easier with a dedicated Focus Mode button. -
Page 8: Product Dimensions
Introduction Product Dimensions 14.96 in 380 mm 17.5 in 445 mm 6.24 in 158.5 mm 12.2 in 310 mm 7.4 in 188 mm 18.1 in 461 mm Ovation E-2 FC User Manual Rev. 1... -
Page 9: Setup
DMX controller. DMX Personalities The Ovation E-2 FC uses a 5-pin DMX data connection for the 1 Ch, 4 Ch, 5 Ch, 7 Ch, 11 Ch, 13 Ch1, 13 Ch2, 17 Ch, and HSV DMX personalities. -
Page 10: Master/Slave Connectivity
Soft Focus Filter The Ovation E-2 FC comes with a soft focus filter. To keep the soft focus filter in good condition: • Ensure that no fingerprints are left on the filter, as this may cause the filter to heat unevenly and eventually warp. -
Page 11: Mounting
When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Ovation E-2 FC comes with an adjustable yoke to which a mounting clamp can be attached for hanging. Make sure the clamp is capable of supporting the weight of this product. For the CHAUVET Professional line of mounting clamps, go to http://www.trusst.com/products. -
Page 12: Accessory Slot
Setup Accessory Slot The Ovation E-2 FC has an accessory slot which holds the included “M” size metal gobo holder, the included soft focus filter, a drop-in iris, or various other optional accessories (sold separately). 1. Loosen the thumbscrews on the slot cover. (Note: Do not remove the thumbscrews). -
Page 13: Operation
<DOWN> Navigates downwards through the menu list or decreases the value when in a function <FOCUS MODE> Activates focus mode Menu Map Refer to the Ovation E-2 FC product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels... - Page 14 Color 4500K specified color temperature. Refer to the Temperature Color Temperature Chart for specific 4600K -25–25 values. 4700K 4800K 4900K 5000K 5100K 5200K 5300K 5400K 5500K 5600K 5700K 6000K 6500K 7000K 7500K 8000K Ovation E-2 FC User Manual Rev. 1...
- Page 15 Shows total hours the LEDs have been LED Hours _ _ _ _H Information powered on Version V_._ Shows current firmware version _ _ _ _ _ _ _ _ _ _ _ _ Shows product UID Ovation E-2 FC User Manual Rev. 1...
-
Page 16: Configuration (Dmx)
2. Select the starting address (001–512). The highest recommended starting address for each DMX mode is as follows: Personality Address 1 Ch 4 Ch 5 Ch 7 Ch 11 Ch 13 Ch1 13 Ch2 17 Ch Ovation E-2 FC User Manual Rev. 1... -
Page 17: Virtual Color Wheel
Operation Virtual Color Wheel The Ovation E-2 FC includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and as a control channel in select DMX personalities. More than 30 premixed colors, custom blended by Chauvet engineers, are available to call up for easier programming. -
Page 18: Color Temperature Chart
112 117 4301–4399K 4400K 119 124 4401–4499K 4500K 126 131 4501–4599K 4600K 133 138 4601–4699K 4700K 140 145 4701–4799K 4800K 147 152 4801–4899K 4900K 154 159 4901–4999K 5000K Ovation E-2 FC User Manual Rev. 1... -
Page 19: Dmx Channel Assignments And Values
000 255 0–100% 000 010 No function – – 13 Strobe 011 255 Strobe, slow to fast – – – 14 Virtual color wheel 000 255 See Virtual Color Wheel Chart Ovation E-2 FC User Manual Rev. 1... -
Page 20: Hsv
Value Percent/Setting Dimmer 000 255 0–100% Saturation 000 255 0–100% Value 000 255 0–100% 1 Ch Channel Function Value Percent/Setting Dimmer 000 255 0–100% (color set through display menu) Ovation E-2 FC User Manual Rev. 1... -
Page 21: Configuration (Standalone)
2. Select On or Off. Master/Slave The Master/Slave mode allows a group of Ovation E-2 FC products (the slaves) to simultaneously duplicate the output of another Ovation E-2 FC (the master) without a DMX controller. To set each of the slaves: 1. -
Page 22: Dimmer Profile
Display Backlight Timer To set the amount of time the backlight on the Ovation E-2 FC’s display stays on after the last button is pressed on the control panel: 1. -
Page 23: Maintenance
7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans with compressed air. Damage may result. Ovation E-2 FC User Manual Rev. 1... -
Page 24: Technical Specifications
5-pin XLR 1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV Ordering Product Name Item Name Item Code UPC Number Ovation E-2 FC OVATIONE2FC 03121951 781462222994 UL 1573 CSA C22.2 No. 166 E113093 Ovation E-2 FC User Manual Rev. 1... -
Page 25: Contact Us
For warranty terms and conditions and return information, please visit our website. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Ovation E-2 FC User Manual Rev. 1...
