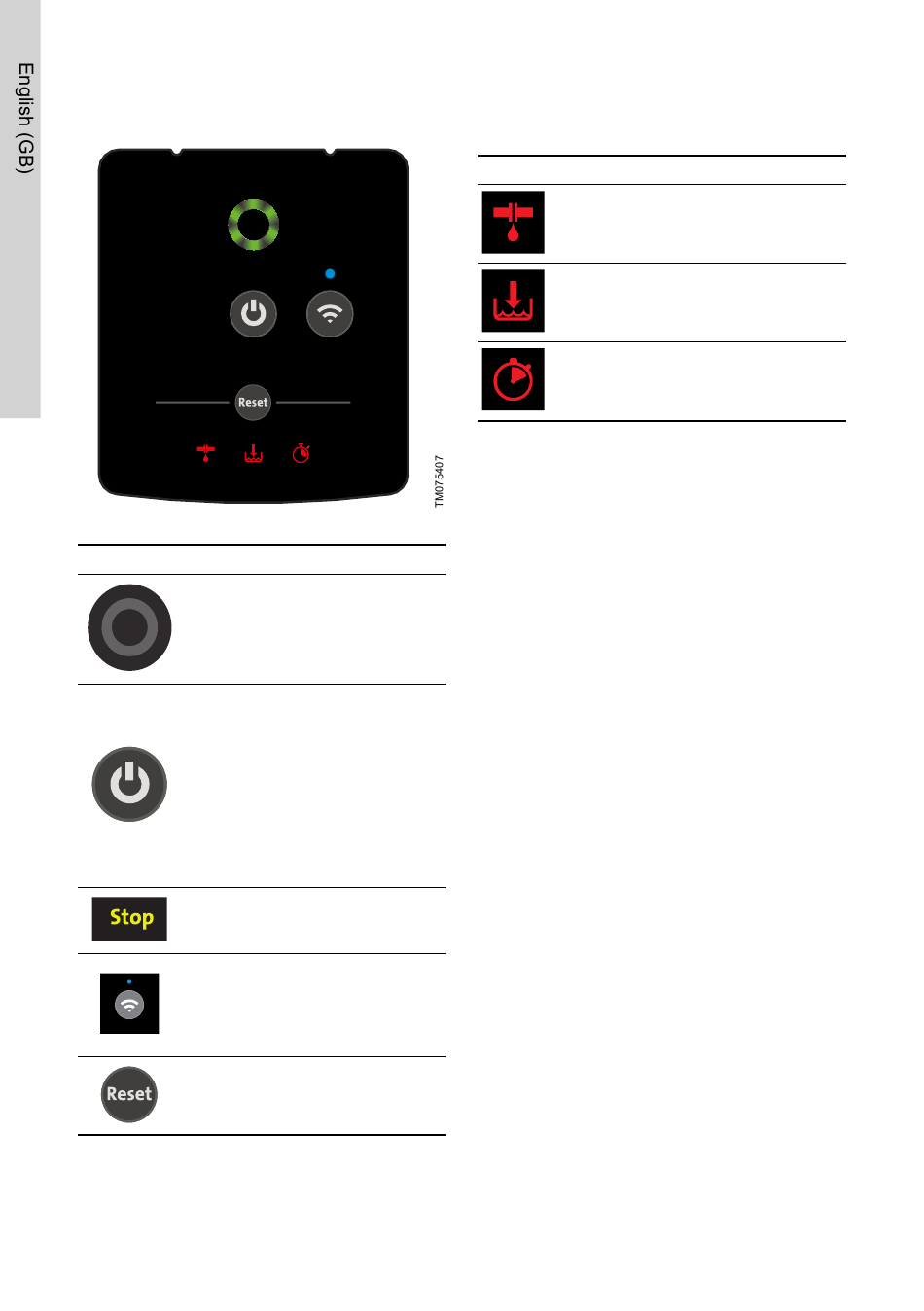

5.2 Operating panel

SCALA1
Symbol Description
Grundfos Eye: The indicator light
shows the operating status of the
product.
Start/Stop: Press the button to make
the product ready for operation or to
start and stop the product.
Start: If you press the button when
the product is stopped, the product
starts if no other functions with higher
priority have been enabled.
Stop: If you press the button when
the product is running, the product
always stops.
The pump is stopped. The stop icon
will light up on the display.
Bluetooth connect button enables
communication with Grundfos GO.
The connection indicator light will
light up when the connection to
Grundfos GO is established.
Reset the pump alarms.
14
Stop
The following alarm lights indicate an issue with
installation:
Symbol Description
Leakage in the system.
Dry running or water shortage.
The maximum runtime has been
exceeded.
