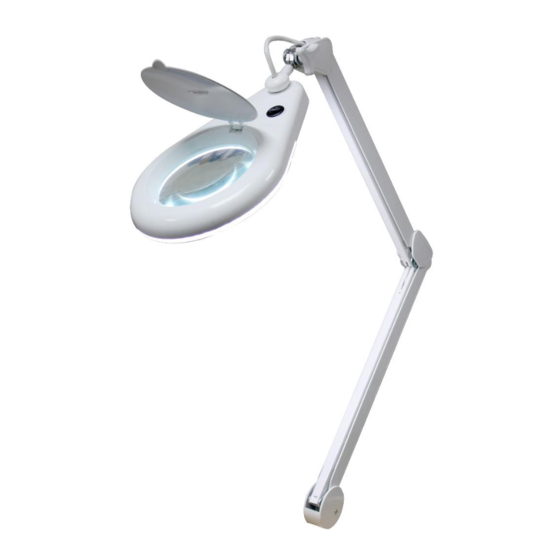

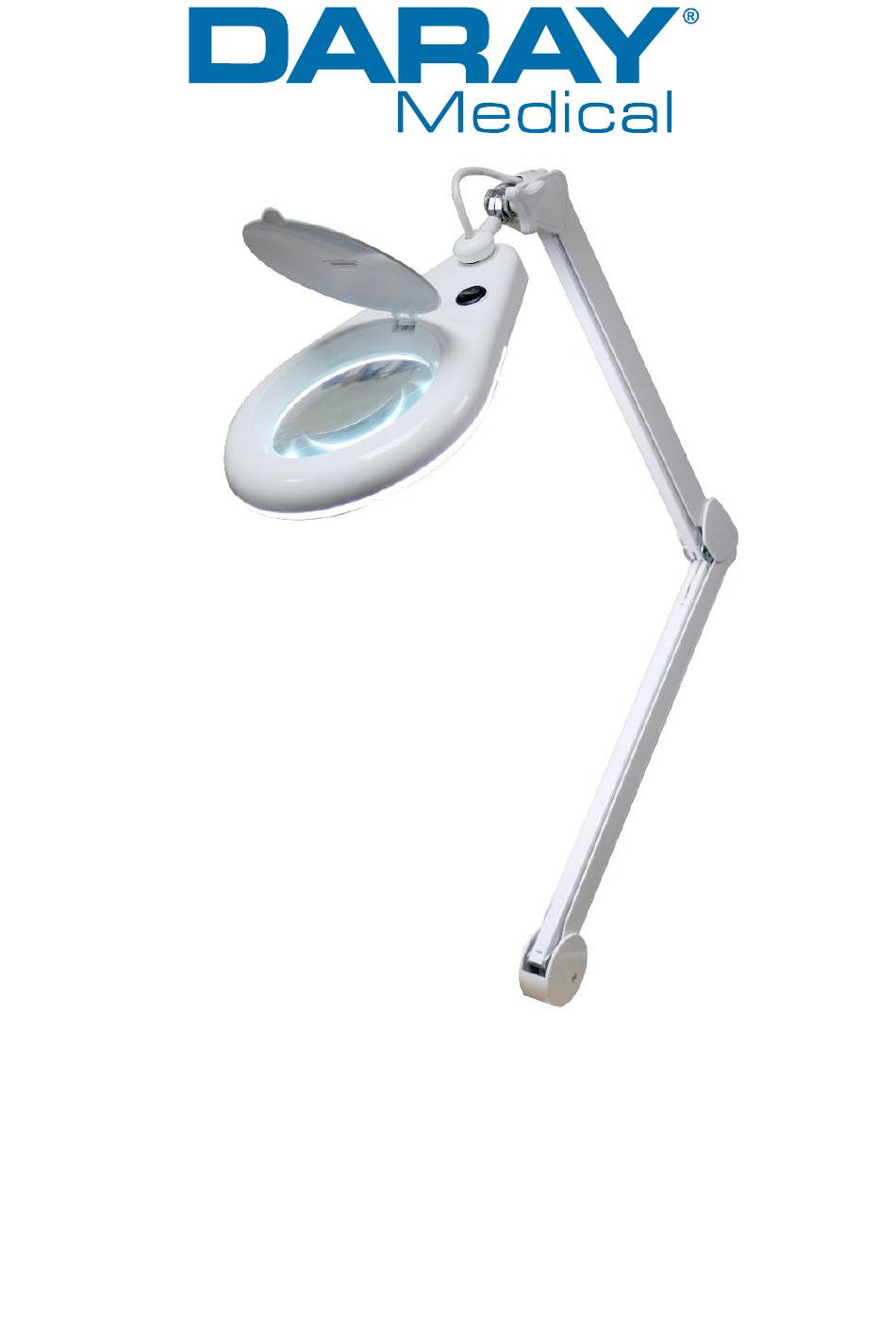

- Page 1 MAG700 Series LED Magnifier Light User Manual & Installation Guide QAM.MAG700.0915.4...
- Page 2 Page 1 of 14...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ................... 3 1.1 Supported Lights ................. 3 1.2 Pre-Installation Responsibilities and component packing list ..... 3 2. Operation ..................5 2.1 Pre-Start Checks ................. 5 2.2 Adjusting the Lighthead ..............5 3. Installation ..................6 3.1 Considerations ................ -
Page 4: Introduction
1. Introduction Thank you for choosing a Daray MAG700 Series Magnifier Light. The MAG700 Series has a smooth, spring balanced arm for smooth one touch movement. This makes the light extremely versatile, perfect for a myriad of tasks. This user & installation guide contains all the information you need for installation, operation and maintenance. - Page 5 The components supplied by Daray for fitting / installation should be the following items in the specified quantities. Desk Clamp Qty. Desk Stand Qty. MAG703 Magnifier Light (or 706/712) MAG703 Magnifier Light (or 706/712) Desk G Clamp (PIVOTD2) Desk Stand (PIVOTS)
-
Page 6: Operation
2. Operation 2.1 Pre-Start Checks Please check that the power cable (when applicable) is without visible damage, harsh folds, knots or cuts in the rubberised coating Check that the plug is fully inserted into the socket and then switch the power on. -
Page 7: Installation
1.3m of a mains power point (5m cable for mobile versions). Daray’s standard mounting option for the MAG700 series is a Desk G clamp mount, we also offer additional or bespoke mounting options. Ultimately the mounting method used is the responsibility of the project engineer or fitter. This includes deciding on the suitability of the surface to be fixed to. -
Page 8: Desk Mounted Assemblies
3.2 Desk mounted assemblies PivotD2 PivotS PivotFDM 3.2.1 Considerations Desk Clamp This mount can be fixed to desks and workbenches. Before fixing, it is important to consider the strength and thickness of the Desk. Desk Weight This mount is an unfixed weighted base. It can be positioned and repositioned as required however please keep in mind that the weighted base is heavy. -
Page 9: Wall Mounted Assemblies
This will be undertaken dependent on the specific requirements of your work / examinations, if in doubt consult the end user or DARAY. Locations of Only the supplied certified power connection should be used nearest power with the light. -
Page 10: Placement And Installation
3.3.2 Placement and Installation Pivot W2 Place the mounting bracket on the wall in the selected location, bearing in mind the final position of where the lighthead is required. Check the alignment of the bracket and ensure that it is level. ... -
Page 11: Mobile Mount Assembly
3.4 Mobile Mount Assembly PivotMWB 3.4.1 Considerations Mobile Light The mobile edition of the MAG700 has a weighted plate included Movement with the base. This is a counter weight that is essential for the MAG700 to provide the optimum range of movement without balancing issues. -
Page 12: Maintenance
The proposed maintenance is only a suggestion. Depending on the use of the product and the operating environment, this may need to be revised more often. Daray would strongly recommend against “quick fixes” with tape, etc. If you cannot resolve a problem then please contact our helpline on 0800 878 9864 or email support@daray.co.uk... -
Page 13: Cleaning
(aerosol) spray, and wiped dry. 4.4 Fuses and their replacement The MAG700 series is a mains powered device which has a fuse located in the plug for the wall socket. There are no other user changeable parts in this light. For any advice on internal circuit burn-outs and other replacements;... -
Page 14: Warranty Information
DARAY Ltd, please read the following information carefully. The DARAY Ltd returns policy provides guidance on when you can return goods we have supplied, and what you can expect from us once you do. To see our detailed returns policy and procedure visit www.daray.co.uk/returns... -
Page 15: Warranty Details
Failure to use or install the product in accordance with the manufacturer’s instructions. 5. Nothing in this warranty shall have the effect of restricting or excluding the liability of Daray in respect of: a) Death and personal injury caused by the negligence of Daray, or for fraud;... - Page 16 Page 15 of 14...
