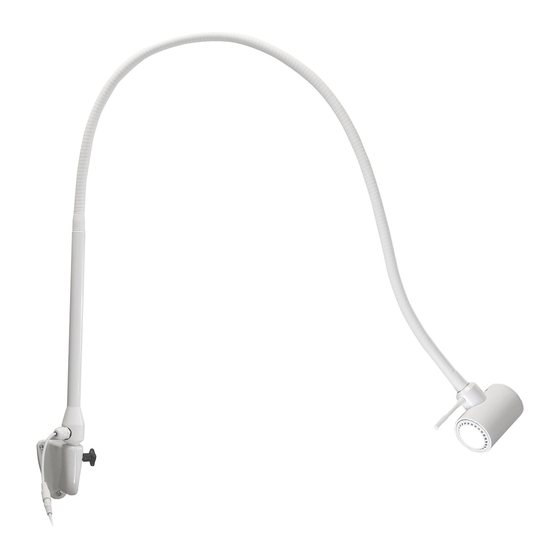

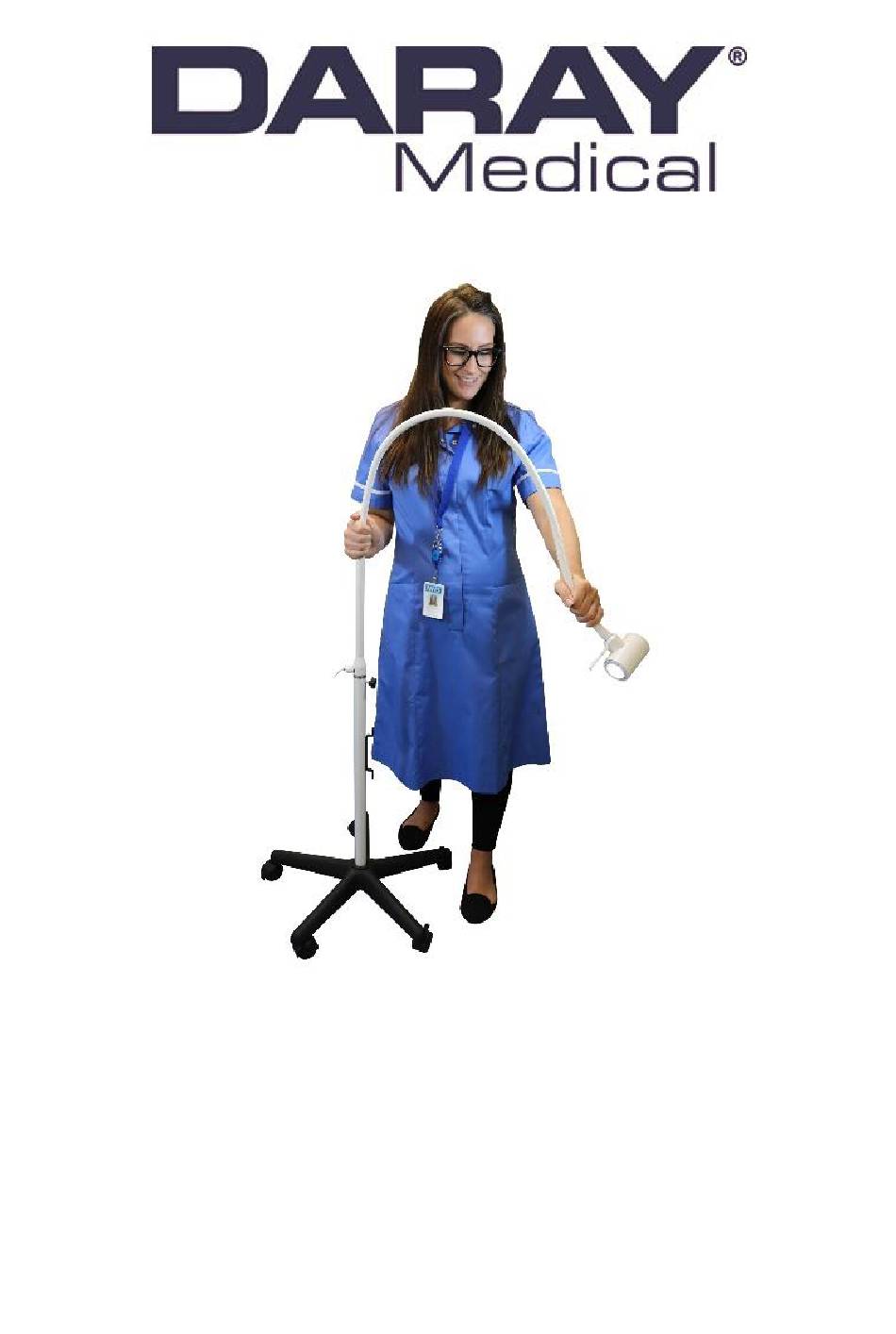

- Page 1 X100 LED Examination Light Operating & Installation Manual QAM.X100.1218.10...
- Page 2 Page 1 of 22...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ................3 1.1 Supported Lights ..............4 2. Technical Specifications ............5 2.1 Pre-Installation Responsibilities and component packing list ... 6 2.2 Pre-Start Checks ..............6 3.2 Powering On & Variable Intensity ..........8 4. Installation ................9 4.1 Wall mounted version (X100LW) .......... -
Page 4: Introduction
The X100 uses an LED module to give adequate light intensity with virtually no heat. The light head is small and robust and carries a push-button on/off switch. -
Page 5: Supported Lights
X100 LED Wall Mounted Light X100LR X100 LED Rail Mounted Light X100LD X100 LED Desk Mounted Light X100LDS X100 LED Weighted Desk Stand Light X100LFDM X100 LED Fixed Desk Mount Light X100LM X100 LED Mobile Light Page 4 of 22... -
Page 6: Technical Specifications
2. Technical Specifications Light Source Light Intensity (Lux) @ 0.5m 12,000 Lux ±5% Beam angle 10° Colour Temperature (Kelvin) 4,200K ±500 Colour Rendering Index (CRI) Light Field Diameter (D50) @ 0.5m: 180mm Light Field Diameter (D10) @ 0.5m: 240mm Number of LED’s Power Consumption 8.5W 0.07A Average Working Life... -
Page 7: Pre-Installation Responsibilities And Component Packing List
2.1 Pre-Installation Responsibilities and component packing list This document is a guide to the steps that need to be performed to correctly install the X100 Examination light. However, the work required to be performed is the responsibility of the owner or designated contractor/s. - Page 8 2.3 Technical Drawing Page 7 of 22...
-
Page 9: Powering On & Variable Intensity
3.2 Powering On & Variable Intensity The X100 uses a single button on the back of the head to power the light on and off. Press once to power ON. Press once to power OFF. Page 8 of 22... -
Page 10: Installation
Locations of nearest The X100 wall mounted light uses a plug top transformer mains sockets with a DC jack connection. Only the supplied certified power adapter should be used with the light. -
Page 11: Placement And Installation
• Tighten the thumbscrew to secure the light in position. The power supply for the X100 is a plug top transformer with a DC jack connection, these can be inserted into any standard UK wall socket. Please note, under no circumstances should this product be connected... - Page 12 The light can now be tested by connecting the DC jacks and applying power. Press the switch on the head to power your light on. See page 8 Check arm and head for smooth and correct movement. Your new DARAY light is now ready for use.
-
Page 13: Rail Mounted Version (X100Lr)
4.2 Rail mounted version (X100LR) Remove the light from its packaging. If you have also purchased our XRAIL accessory, hold the rail against the selected location on the wall, bearing in mind the final position and range of travel of the light-head required to project its light patch where it will be needed. -
Page 14: Mobile Version (X100Lm)
Fit the spigot on the end of the light arm into the top of the clamp, make sure it is fully secured in place. Apply the power cable, and power the light on. See page 8. 4.4 Mobile version (X100LM) ... -
Page 15: Optional Battery Back-Up
4.5 Optional battery back-up 4.5.1 Packing List Battery back-up unit Double-ended bridge cable 12V PSU + extension cable 4.5.2 Install Plug the power adapter into the wall and insert the DC connector into the battery. Switch the battery to the ON position and the red light on the top of the battery pack will illuminate. -
Page 16: Maintenance
The proposed maintenance is only a suggestion. Depending on the use of the product and the operating environment, this may need to be revised more often. DO NOT ATTEMPT ANY FIXES BEFORE CONSULTING DARAY. If you cannot resolve a problem then please contact our helpline on 0800 878 9864 or email support@daray.co.uk... -
Page 17: Product Cleaning & Care Guidelines
Acetone-based cleaners (e.g. nail polish remover, Goo-off™) MEK (Methyl Ethyl Ketone) If you are unsure whether you are using the correct cleaning fluids on your DARAY equipment, please feel free to get in touch with us for advice. Page 16 of 22... -
Page 18: Adjustments
5.4 Adjustments The head of the X100 light has a total turning capability of 320 degrees, attempting to push further may cause damage to the movement and internal wiring of the light. 5.4.2 Detaching Parts De-construction of the lights should be done following a reverse order of the instructions in section 4. -
Page 19: Troubleshooting Guide & Spare Parts
Check the visible wiring and make sure the DC connectors between the Cables light and the extension cable are fully connected Power Button Contact DARAY Service Delivery Verify that the correct mains voltage Poor Light Voltage in and correct transformer is being output... - Page 20 12V Plug-top DRK4148 transformer and extension cable kit For any SPARE PARTS or TECHNICAL ISSUES phone DARAY’S Service Delivery Team on: +44 (0) 800 878 9864 Opening times 9am–5pm Monday to Thursday (excluding bank holidays) 9am-2:30pm on Friday Or email: support@daray.co.uk...
-
Page 21: Warranty Information
DARAY Ltd, please read the following information carefully. The DARAY Ltd returns policy provides guidance on when you can return goods we have supplied, and what you can expect from us once you do. To see our detailed returns policy and procedure visit www.daray.co.uk/returns... -
Page 22: Warranty Details
Direct damage to your property caused by the proven negligence of Daray. 6. This agreement does not give any rights other than those expressly set out above and in particular, Daray will not be responsible for any loss of income, profits or contracts or any direct or indirect consequential loss, damage caused to or suffered by the purchaser as a direct result of this agreement. - Page 23 Service Notes Page 22 of 22...
- Page 24 Page 23 of 22...
- Page 25 Page 24 of 22...
- Page 26 Page 25 of 22...
- Page 27 Page 26 of 22...
- Page 28 DARAY Ltd. Edison House Robian Way Swadlincote Derbyshire United Kingdom DE11 9DH +44 (0)800 878 9864 +44 (0)333 321 0973 sales@daray.co.uk www.daray.co.uk...
