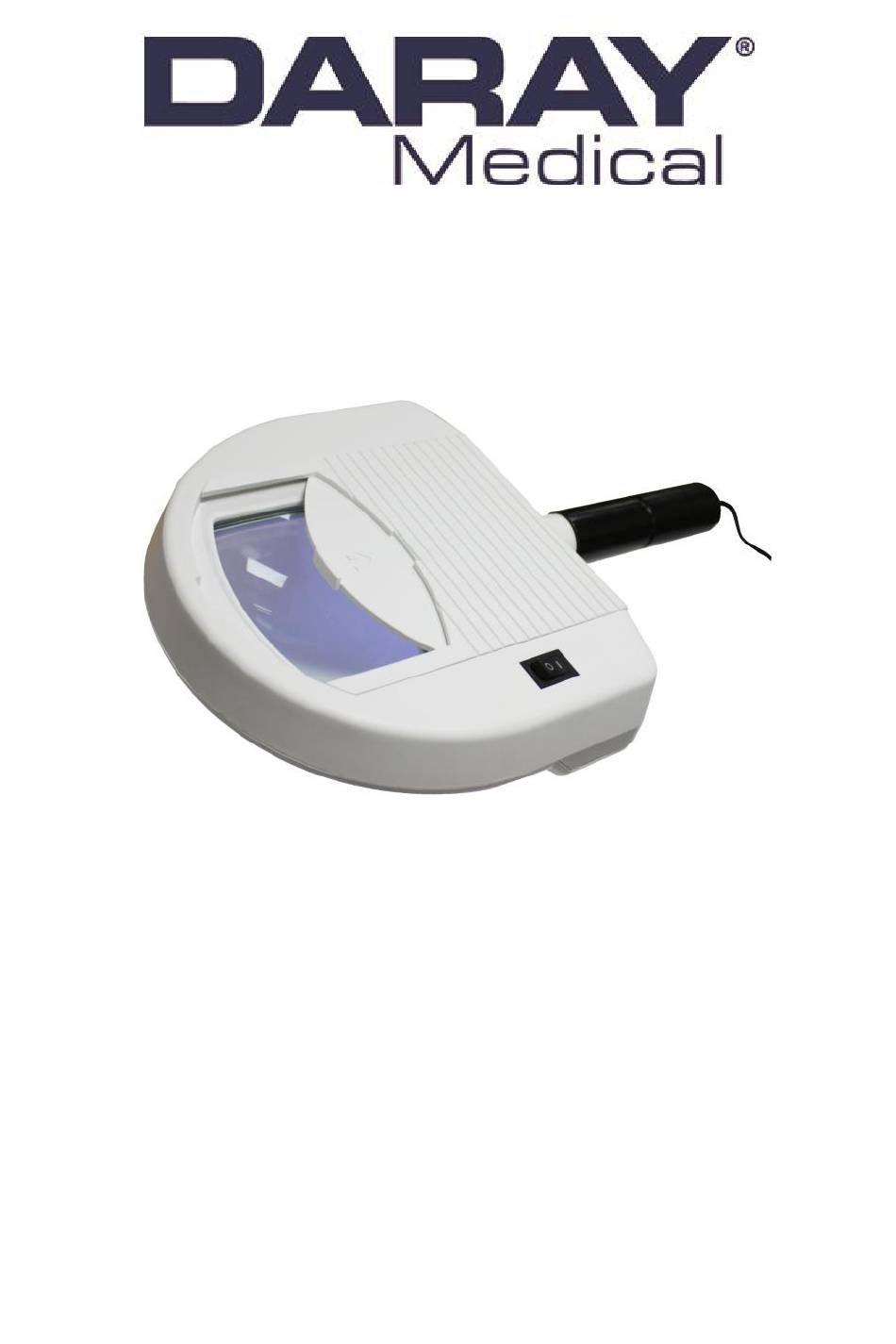

- Page 1 MAGW150 Ultraviolet Wood’s Examination Light Operating & Installation Manual QAM.MAGW150.0219.5...
- Page 2 Page 1 of 15...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ..............3 1.1 Supported Lights ............3 2. Technical Specifications ..........4 2.1 Pre-Installation Responsibilities and component packing list ... 4 2.2 Pre-Start Checks ............4 3. Operation ..............5 3.1 Skin Conditions ............5 4. -
Page 4: Introduction
DARAY. Changes made to the information in this document will be incorporated in new editions of the publication. No responsibility is assumed by DARAY for the use or reliability of software or equipment that is not supplied by DARAY. -
Page 5: Technical Specifications
2.1 Pre-Installation Responsibilities and component packing list This document is a guide to the steps that need to be performed to correctly install the MAGW150 Woods light. However, the work required to be performed is the responsibility of the owner or designated contractor/s. -
Page 6: Operation
3. Operation 3.1 Skin Conditions The MAGW150 is an Ultraviolet light, which enables the user to analyse the surface and deeper layers of the skin in order to determine the proper treatment for various skin conditions. The following is a table that describes how common dermatological skin conditions appear under the ultraviolet light. -
Page 7: Installation
4. Installation 4.1 Operation To use the handheld version of the MAGW150 you will need to locate a power socket within range of your examination point, plug the light into your desired location then: 1. Open the protective cover plate... -
Page 8: Power Requirements
4.1 Power Requirements The power supply for the MAGW150 is a standard mains plug that leads into the light’s body. These can be inserted into any standard UK wall socket and accepts 110-240V. The light can now be tested by applying power and pressing the switch on the head. -
Page 9: Maintenance
The proposed maintenance is only a suggestion. Depending on the use of the product and the operating environment, this may need to be revised more often. DO NOT ATTEMPT ANY FIXES BEFORE CONSULTING DARAY. If you cannot resolve a problem then please contact our helpline on 0800 878 9864 or email support@daray.co.uk... -
Page 10: Bulb Replacement
5.3 Bulb Replacement The MAGW150 may need to have its bulb replaced during the lifetime of the light. To remove the bulb please follow these instructions. Do not use undue force when replacing lamps, as it may shatter causing injury. -
Page 11: Replacement Parts
Remove the lamp by pulling it out of the fitting. Align the pins at the end of the lamp with the slots in the fitting 5.5. Replacement Parts Picture Description Order Code Replacement UV Bulb LB4100 Page 10 of 15... -
Page 12: Product Cleaning & Care Guidelines
Acetone-based cleaners (e.g. nail polish remover, Goo-off™) MEK (Methyl Ethyl Ketone) If you are unsure whether you are using the correct cleaning fluids on your DARAY equipment, please feel free to get in touch with us for advice. Page 11 of 15... -
Page 13: Troubleshooting Guide
Voltage in and correct transformer is being used For any SPARE PARTS or TECHNICAL ISSUES phone DARAY’S Service Delivery Team on: +44 (0) 800 878 9864 Opening times 9am–5pm Monday to Thursday (excluding bank holidays) 9am-2:30pm on Friday Or email: support@daray.co.uk... -
Page 14: Warranty Information
DARAY Ltd, please read the following information carefully. The DARAY Ltd returns policy provides guidance on when you can return goods we have supplied, and what you can expect from us once you do. To see our detailed returns policy and procedure visit www.daray.co.uk/returns... -
Page 15: Warranty Details
Direct damage to your property caused by the proven negligence of Daray. 6. This agreement does not give any rights other than those expressly set out above and in particular, Daray will not be responsible for any loss of income, profits or contracts or any direct or indirect consequential loss, damage caused to or suffered by the purchaser as a direct result of this agreement. - Page 16 Service Notes Page 15 of 15...
