SL720
LED Mobile Minor Surgical Light
Operating & Installation Manual
QAM.SL720LFM.0219.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL720 and is the answer not in the manual?

Questions and answers

Related Manuals for DARAY SL720

Summary of Contents for DARAY SL720

  • Page 1 SL720 LED Mobile Minor Surgical Light Operating & Installation Manual QAM.SL720LFM.0219.4...
  • Page 2 Page 1 of 17...

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction ................3 1.1 Supported Lights ..............4 2. Technical Specifications ............5 2.2 Pre-Installation Responsibilities and component packing list ... 6 2.3 Pre-Start Checks ..............6 3. Operation ................7 3.1 Turning the light ON/OFF and adjusting the intensity ....7 3.2 Correct usage of the light ............

  • Page 4: Introduction

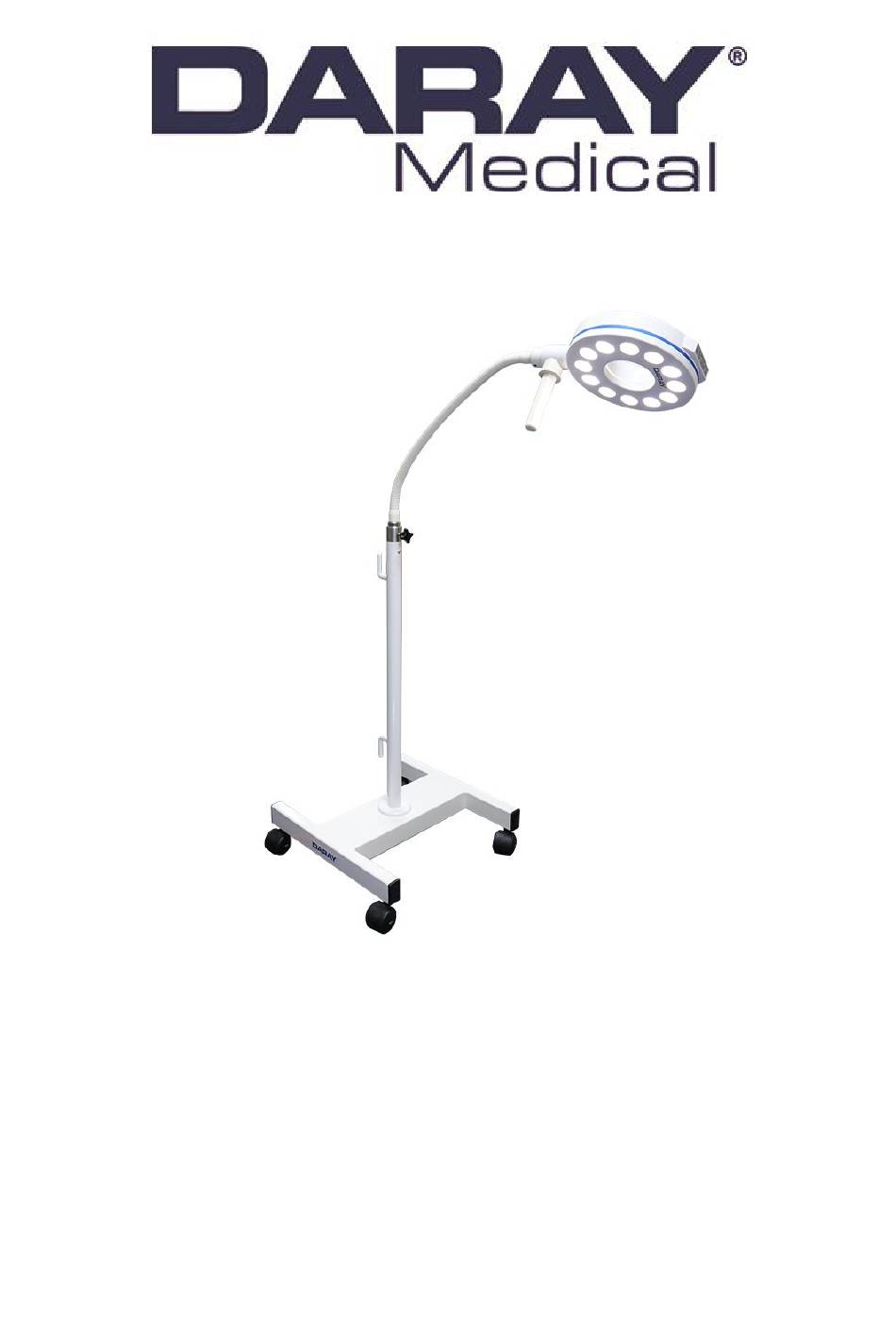

    2 locking and 2 free castors; it will fit underneath most couches, tables and chairs. The SL720 lighthead swivels through 320° on a flexible arm on top of a telescopic up- stand, allowing the light-patch to be directed wherever it is required for examination.

  • Page 5: Supported Lights

    This product was designed & manufactured in Great Britain by: Daray Ltd. Edison House Robian Way Swadlincote Derbyshire DE11 9DH 1.1 Supported Lights The Following Models are supported in this Manual SL720LFM SL720 LED Flexible Mobile Minor Surgical Light Page 4 of 17...

  • Page 6: Technical Specifications

    2. Technical Specifications Light Source Light Intensity (Lux) @ 0.75m 12,500 – 77,000 Lux ±5% Light Intensity (Lux) @ 1.0m 8,000 – 50,000 Lux ±5% Colour Temperature (Kelvin) 3,600K – 5,500K (adjustable) Colour Rendering Index (CRI) 85 -93 Colour Rendering (R9) 56 - 90 Light Field Diameter (D50) 100 –...

  • Page 7: Pre-Installation Responsibilities And Component Packing List

    2.2 Pre-Installation Responsibilities and component packing list This document is a guide to the steps that need to be performed to correctly install the SL720 Flexible Mobile Minor Surgical light. However, the work required to be performed is the responsibility of the owner or designated contractor/s.

  • Page 8: Operation

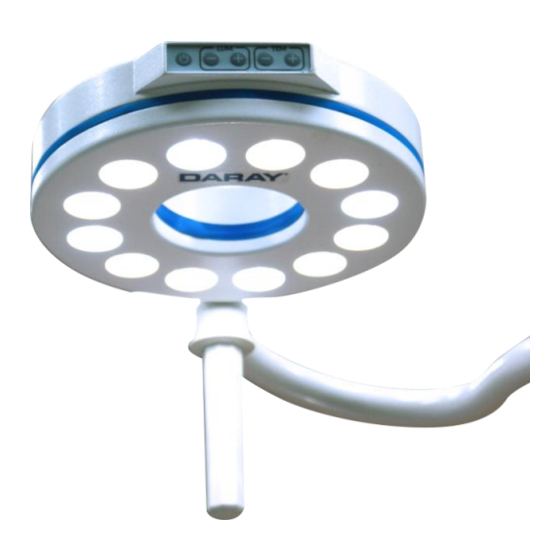

    3.1 Turning the light ON/OFF and adjusting the intensity The SL720 uses a single button (on the side of the head) to power the light on and off. Next to this switch are four buttons split into paired controls for variable intensity (LUM –...

  • Page 9: Correct Usage Of The Light

    Locking screw The telescopic extension is released for raising and lowering, and locked by the locking screw at the rear of the up-stand. Use the light-head handle to position the light-patch to where it is required. In the interests of cross-infection control, avoid touching any other part of the light.
  • Page 10   This is the correct way to bend the neck, ensure you curve it through its entire range.   This is the incorrect way to bend the neck. Notice the sharp kink in the neck – this will ultimately affect future flexibility.

  • Page 11: Maintenance

    The proposed maintenance is only a suggestion. Depending on the use of the product and the operating environment, this may need to be revised more often. DO NOT ATTEMPT ANY FIXES BEFORE CONSULTING DARAY. If you cannot resolve a problem then please contact our helpline on 0800 878 9864 or email support@daray.co.uk...

  • Page 12: Product Cleaning & Care Guidelines

    Acetone-based cleaners (e.g. nail polish remover, Goo-off™)  MEK (Methyl Ethyl Ketone) If you are unsure whether you are using the correct cleaning fluids on your DARAY equipment, please feel free to get in touch with us for advice. Page 11 of 17...

  • Page 13: Fuse Replacement

    4.4 Fuse Replacement CAUTION: Fuses normally blow for a reason. Investigate likely faults before changing fuses. CAUTION: Isolate the unit from the mains before accessing the fuses. Both the live and neutral mains inputs are fused. The fuses are contained in a holder which is part of the IEC inlet mounted on the rear panel of the mobile base.
  • Page 14 5. Spare Parts CAUTION: Use only genuine ‘DARAY’ replacement lamps as other types may seriously impair the optical performance of the product. ITEM NO PART NAME TYPE PART NO Fuse 1A 20mm D10873 Microfibre cloth 5 pack DRK4080 Replacement Handle (each)

  • Page 15: Warranty Information

    DARAY Ltd, please read the following information carefully. The DARAY Ltd returns policy provides guidance on when you can return goods we have supplied, and what you can expect from us once you do. To see our detailed returns policy and procedure visit www.daray.co.uk/returns...

  • Page 16: Warranty Details

    Direct damage to your property caused by the proven negligence of Daray. 6. This agreement does not give any rights other than those expressly set out above and in particular, Daray will not be responsible for any loss of income, profits or contracts or any direct or indirect consequential loss, damage caused to or suffered by the purchaser as a direct result of this agreement.
  • Page 17 Service Notes Page 16 of 17...
  • Page 18 Page 17 of 17...
  • Page 19 Page 18 of 17...
  • Page 20 DARAY Ltd. Edison House Robian Way Swadlincote Derbyshire United Kingdom DE11 9DH  +44 (0)800 878 9864  +44 (0)333 321 0973 sales@daray.co.uk  www.daray.co.uk...
