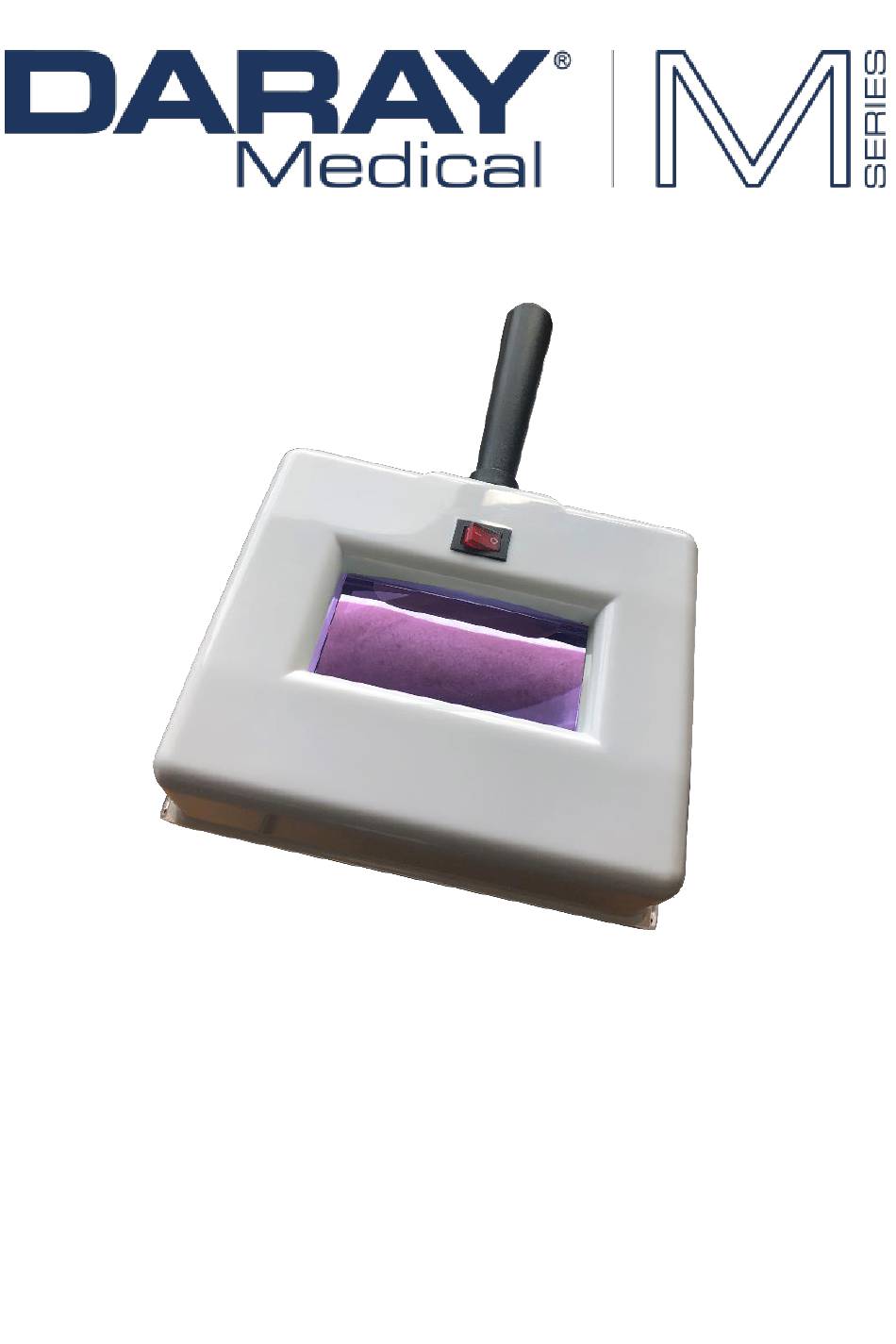

- Page 1 Model: MAGW200 Ultraviolet Wood’s Examination Light Operating Manual QAM.MAGW200.0921.1...
- Page 2 Page 1 of 16...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ....................3 1.1 Supported Lights ..................3 2. Technical Specifications ................4 2.1 Component packing list................4 2.2 Pre-Start Checks ..................4 3. Operation ...................... 5 3.1 Identification of Skin Conditions ............. 5 4. Installation ....................6 4.1 Operation .................... -
Page 4: Introduction
DARAY. Changes made to the information in this document will be incorporated in new editions of the publication. No responsibility is assumed by DARAY for the use or reliability of software or equipment that is not supplied by DARAY. -
Page 5: Technical Specifications
Lens Size 110mm x 50mm Lens Magnification 5 Dioptre (equivalent to 2.25x) 2.1 Component packing list The components supplied by DARAY should be the following items in the specified quantities. MAGW200 – 5-Dioptre Qty. Light head with handle, hardwired to a 1.5m lead with plug... -
Page 6: Operation
3. Operation 3.1 Identification of Skin Conditions The MAGW200 is an Ultraviolet light, which enables the user to analyse the surface and deeper layers of the skin in order to determine the proper treatment for various skin conditions. The following is a table that describes how common dermatological skin conditions appear under the ultraviolet light. -
Page 7: Installation
4. Installation 4.1 Operation To use the MAGW200 you will need to locate a power socket within range of your examination point, plug the light into your desired location then: 1. Reduce light in the room to a minimum 2. Turn the power switch ON 3. -
Page 8: Power Requirements
The light can now be tested by applying power and pressing the switch on the head. To gain full support of our warranty please contact DARAY by phone or email. Daray also provide service plans to help you maintain your light. -
Page 9: Maintenance
The proposed maintenance is only a suggestion. Depending on the use of the product and the operating environment, this may need to be revised more often. DO NOT ATTEMPT ANY FIXES BEFORE CONSULTING DARAY. If you cannot resolve a problem then please contact our helpline on 0800 878 9864 or email support@daray.co.uk... -
Page 10: Bulb Replacement
Notice the green bulb holder on either side of the bulb turn to the open position, exposing the bulb prongs. See images overleaf. Slide the bulb out carefully, and replace with an identical 4W bulb type (DARAY order code: DRK4213) Rotate the bulb 90 degrees to the locked position. - Page 11 Locked position Rotate 90 degrees Open position Slide bulb upwards and out Page 10 of 16...
-
Page 12: Replacement Parts
5.5. Replacement Parts Description Order Code Replacement UV Bulb 4W (pack of 4) DRK4213 Page 11 of 16... -
Page 13: Product Cleaning & Care Guidelines
Acetone-based cleaners (e.g. nail polish remover, Goo-off™) MEK (Methyl Ethyl Ketone) If you are unsure whether you are using the correct cleaning fluids on your DARAY equipment, please feel free to get in touch with us for advice. Page 12 of 16... -
Page 14: Troubleshooting Guide
Verify that the correct mains voltage Voltage in is being used For any SPARE PARTS or TECHNICAL ISSUES phone DARAY’S Service Delivery Team on: +44 (0) 800 878 9864 Opening times 9am–5pm Monday to Thursday (excluding bank holidays) 9am-2:30pm on Friday Or email: support@daray.co.uk... -
Page 15: Warranty Information
DARAY Ltd, please read the following information carefully. The DARAY Ltd returns policy provides guidance on when you can return goods we have supplied, and what you can expect from us once you do. To see our detailed returns policy and procedure visit www.daray.co.uk/returns... -
Page 16: Warranty Details
Direct damage to your property caused by the proven negligence of Daray. 6. This agreement does not give any rights other than those expressly set out above and in particular, Daray will not be responsible for any loss of income, profits or contracts or any direct or indirect consequential loss, damage caused to or suffered by the purchaser as a direct result of this agreement. - Page 17 Service Notes Page 16 of 16...
- Page 18 Page 17 of 16...
- Page 19 Page 18 of 16...
- Page 20 DARAY Ltd. Edison House Robian Way Swadlincote Derbyshire United Kingdom DE11 9DH +44 (0)800 878 9864 +44 (0)333 321 0973 sales@daray.co.uk www.daray.co.uk...
