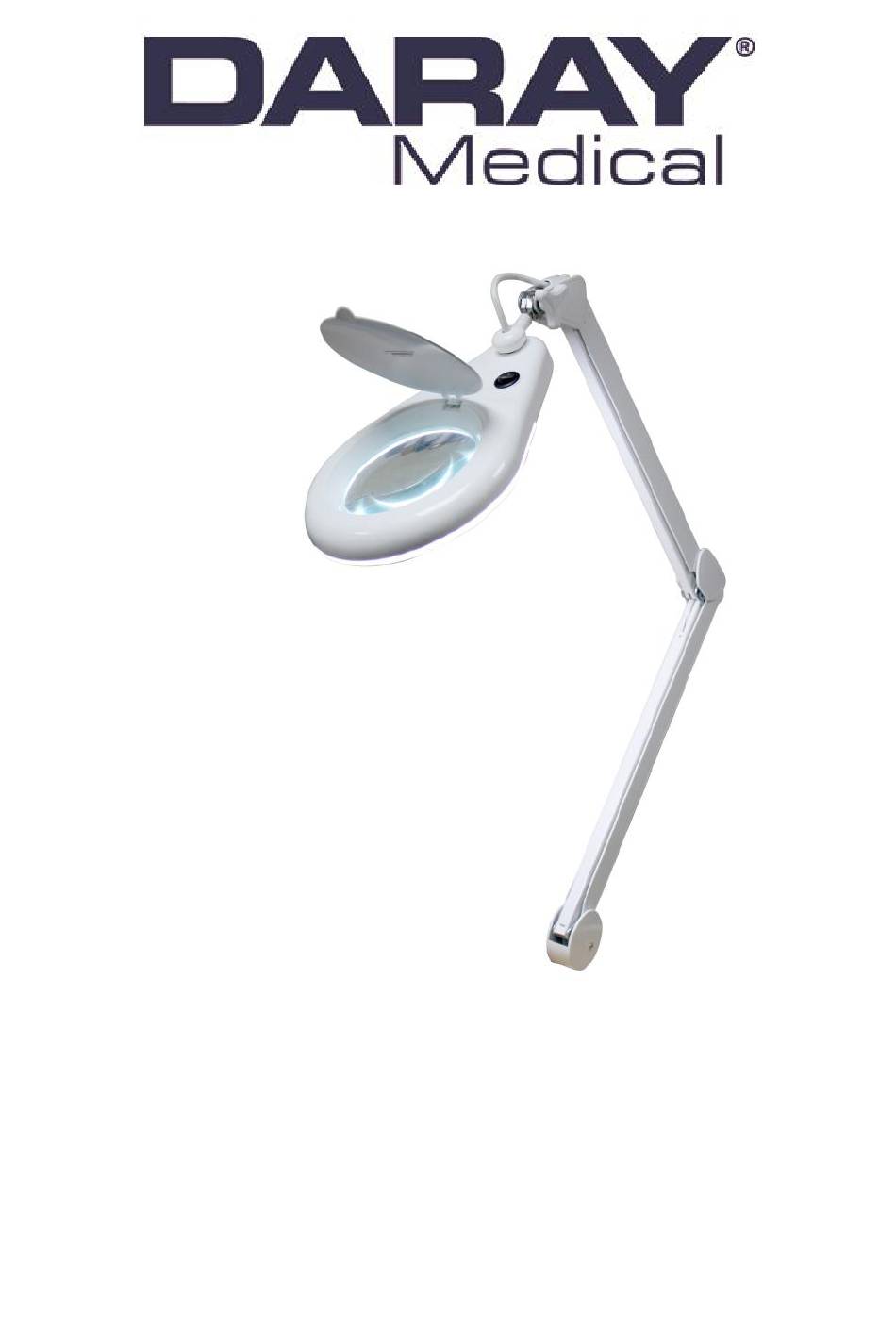

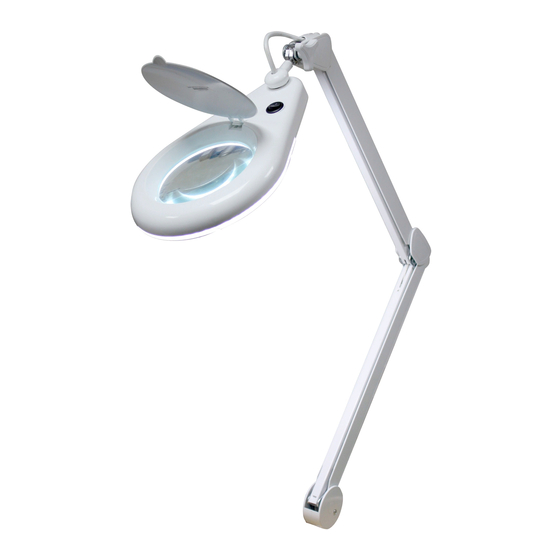

- Page 1 MAG700 Range LED Magnifier Light Operating & Installation Manual QAM.MAG700.0219.5...
- Page 2 Page 1 of 19...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ................3 1.1 Supported Lights ..............4 2. Technical Specifications ............5 2.1 Pre-Installation Responsibilities and component packing list ... 6 2.2 Pre-Start Checks ..............7 3. Installation ................8 3.1 Considerations ..............8 3.2 Desk version (MAG700LD) ............9 3.2.1 Considerations .............. -
Page 4: Introduction
DARAY. Changes made to the information in this document will be incorporated in new editions of the publication. No responsibility is assumed by DARAY for the use or reliability of software or equipment that is not supplied by DARAY. -
Page 5: Supported Lights
For further information on our product range and find out more about our Company please visit www.daray.co.uk or call 0333 321 0971. This product was designed & manufactured in Great Britain by: Daray Ltd. Edison House Robian Way Swadlincote Derbyshire DE11 9DH 1.1 Supported Lights... -
Page 6: Technical Specifications
2. Technical Specifications Light Source Number of LED’s Average Working Life >25,000 hours Light head diameter 200mm Lens Diameter 125mm Magnification options 3-Dioptre / 6-Dioptre / 12-Dioptre Arm Length 800mm reach Input Voltage 100-240V AC / 50-60Hz Output Voltage 24V DC 1A Warranty Period 3 Years (UK only) NHS E-Class Code... -
Page 7: Pre-Installation Responsibilities And Component Packing List
All fixings between DARAY lights and the building super-structure must be approved by either the chief project engineer or an appropriate and competent structural assessor. The components supplied by DARAY for fitting / installation should be the following items in the specified quantities. Desk Clamp Qty. -
Page 8: Pre-Start Checks
2.2 Pre-Start Checks Please check that the power cable is without visible damage, harsh folds, knots or cuts in the rubberised coating. When applicable, please check that the cable is fully inserted into the power socket, before switching the power on. Please check that the head and all parts of the base are without visible damage. -
Page 9: Installation
It may be necessary to adjust this height, if there are specific medical procedures the light will be used for. If in doubt consult the end user or DARAY. When installing the bracket take consideration of where you want the light head to sit when in its lowest position. -
Page 10: Desk Version (Mag700Ld)
3.2 Desk version (MAG700LD) PivotD2 PivotS PivotFDM 3.2.1 Considerations Desk Clamp This mount can be fixed to desks and workbenches. Before fixing, it is important to consider the strength and thickness of the Desk. Desk Weight This mount is an unfixed weighted base. It can be positioned and repositioned as required however please keep in mind that the weighted base is heavy. -
Page 11: Wall Version (Mag700Lw)
This will be undertaken dependent on the specific requirements of your work / examinations, if in doubt consult the end user or DARAY. Locations of Only the supplied certified power connection should be used nearest power with the light. -
Page 12: Placement And Installation
3.3.2 Placement and Installation Pivot W2 Place the mounting bracket on the wall in the selected location, bearing in mind the final position of where the lighthead is required. Check the alignment of the bracket and ensure that it is level. ... -
Page 13: Mobile Version (Mag700Lm)
3.4 Mobile version (MAG700LM) See instructional sheet for mobile base. Remove the light from its packaging. Place the castor base on firm ground and insert the upstand into the hold located in the centre. Placing hands on the top of the upstand, push down with a firm pressure until the upstand is fully inserted. -
Page 14: Maintenance
The proposed maintenance is only a suggestion. Depending on the use of the product and the operating environment, this may need to be revised more often. DO NOT ATTEMPT ANY FIXES BEFORE CONSULTING DARAY. If you cannot resolve a problem then please contact our helpline on 0800 878 9864 or email support@daray.co.uk... -
Page 15: Product Cleaning & Care Guidelines
Acetone-based cleaners (e.g. nail polish remover, Goo-off™) MEK (Methyl Ethyl Ketone) If you are unsure whether you are using the correct cleaning fluids on your DARAY equipment, please feel free to get in touch with us for advice. Page 14 of 19... -
Page 16: Adjustments
These arms shouldn’t need adjustment in their life cycle however if they start to droop or require any other work, we recommend that you contact Daray customer services to discuss this. 4.4.2 Detaching Parts De-construction of the lights should be done following a reverse order of the instructions in section 4. -
Page 17: Spare Parts
Head thumb Screw CS6143 Wall bracket thumb D16247 screw For any SPARE PARTS or TECHNICAL ISSUES phone DARAY’S Service Delivery Team on: +44 (0) 800 878 9864 Opening times 9am–5pm Monday to Thursday (excluding bank holidays) 9am-2:30pm on Friday Or email: support@daray.co.uk... -
Page 18: Warranty Information
DARAY Ltd, please read the following information carefully. The DARAY Ltd returns policy provides guidance on when you can return goods we have supplied, and what you can expect from us once you do. To see our detailed returns policy and procedure visit www.daray.co.uk/returns... -
Page 19: Warranty Details
Direct damage to your property caused by the proven negligence of Daray. 6. This agreement does not give any rights other than those expressly set out above and in particular, Daray will not be responsible for any loss of income, profits or contracts or any direct or indirect consequential loss, damage caused to or suffered by the purchaser as a direct result of this agreement. - Page 20 Service Notes Page 19 of 19...
- Page 21 Page 20 of 19...
- Page 22 Page 21 of 19...
- Page 23 Page 22 of 19...
- Page 24 DARAY Ltd. Edison House Robian Way Swadlincote Derbyshire United Kingdom DE11 9DH +44 (0)800 878 9864 +44 (0)333 321 0973 sales@daray.co.uk www.daray.co.uk...
