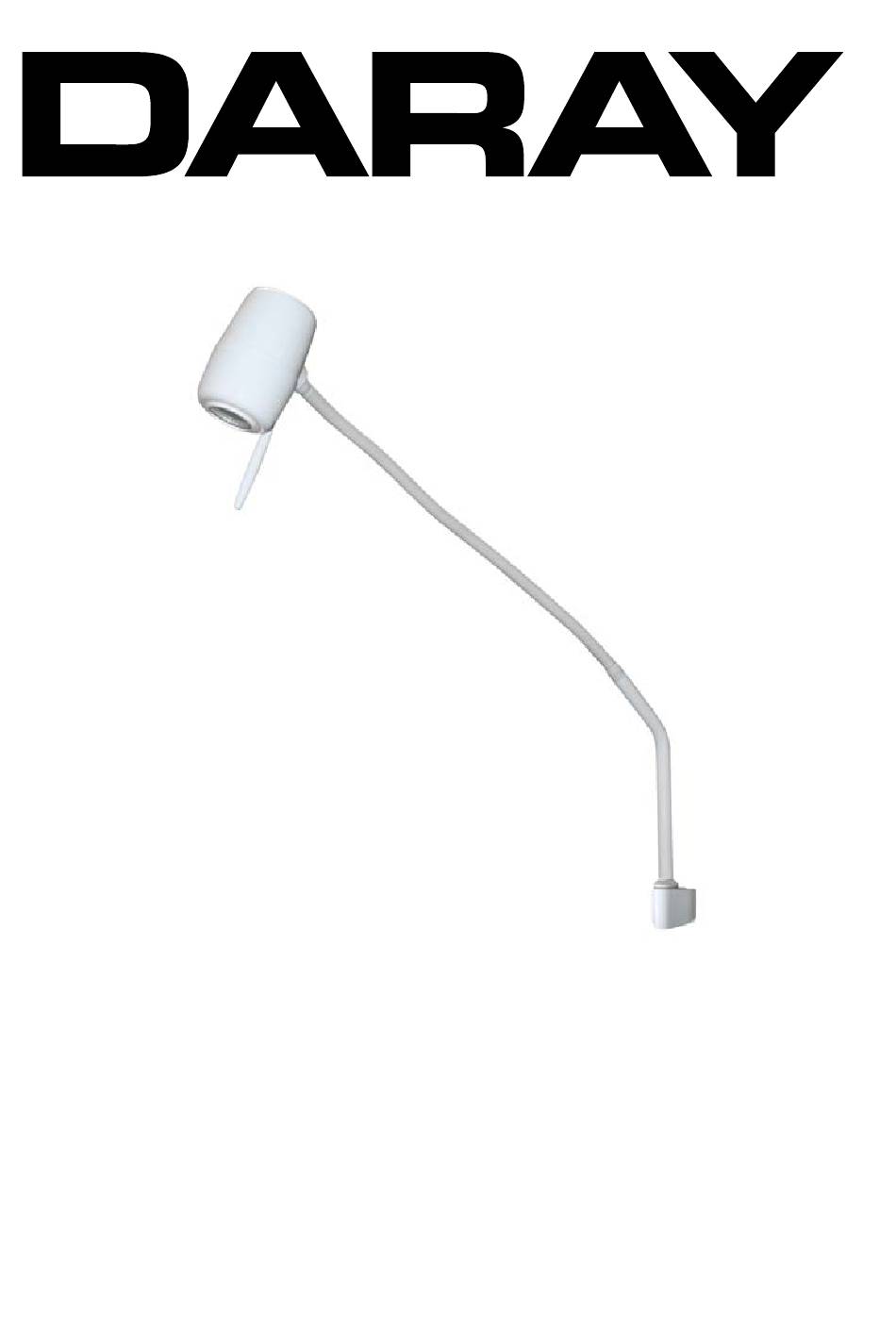

- Page 1 ® X230LED LED MEDICAL EXAMINATION LIGHT INSTALLATION AND OPERATING MANUAL QAM.X230LED.0810.1...
-
Page 3: Table Of Contents
® 1. GENERAL DESCRIPTION 2. SPECIFICATION Serial Number Product Identification 3. INSTALLATION/ASSEMBLY 5 4. OPERATION 5. MAINTENANCE RETURNS POLICY WARRANTY WARRANTY REGISTRATION Tel: 0844 375 9000 - Fax: 0333 321 0973 info@daray.co.uk - www.daray.co.uk... - Page 4 DARAY Ltd make every effort to ensure that the information in this document is correct and accurate, however, we cannot be held responsible for errors and omissions. DARAY Ltd reserves the right to alter specifications and to add and withdraw products without notice.
-
Page 5: General Description
The light uses the latest next-generation LED technology to give the best intensity at the correct colour temperature with no heat in the light-beam. The X230LED head swivels on a 900mm flexible arm to allow accurate and stable positioning of the light-patch. The flexible arm projects from an angled neck which swivels in its mounting. -
Page 6: Installation/Assembly
3. INSTALLATION/ASSEMBLY Using the back-plate as a template, mark the four fixing holes (6.5mm), the central locking screw hole (6.5mm) and the cable access hole (9mm) on the mounting surface (temporarily inserting the spigot to assess whether it is vertical may help to achieve a level mounting). Drill the 6 holes. -
Page 7: Operation
4. OPERATION The light-head swivels on its mounting flexible arm, and the arm itself also swivels where it fits into its mounting, allowing the light patch to be placed where you want it. Press the push-button on the rear of the lamp to turn the light on. Press and hold to adjust the intensity. - Page 8 PLEASE REFER ANY PROBLEMS INITIALLY TO YOUR DISTRIBUTOR. DARAY Customer Services on +44 (0) 844 375 9000 Or email technical@daray.co.uk for help with any problems the distributor cannot solve.
-
Page 9: Returns Policy
If you send us goods that do not qualify for return, you will invalidate your claim to any refund, and you will be obliged to compensate DARAY Ltd for the cost of return postage and any other reasonable costs incurred processing the goods. -
Page 10: Warranty
• Failure to use or install the product in accordance with the manufacturer’s instructions. 5. Nothing in this warranty shall have the effect of restricting or excluding the liability of Daray in respect of: a) Death and personal injury caused by the negligence of Daray, or for fraud;... - Page 15 Marquis Drive · Moira · Derbyshire · DE12 6EJ Tel: 0844 375 9000 · Fax: 0333 321 0973 email: info@daray.co.uk · url: www.daray.co.uk...
