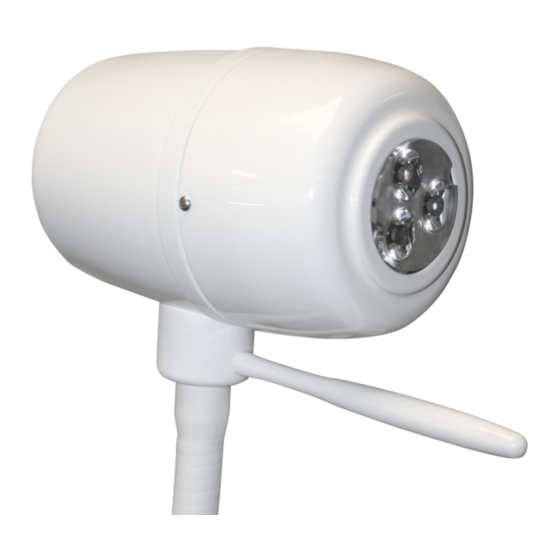

- Page 1 ® X210LED MEDICAL EXAMINATION LIGHT INSTALLATION AND OPERATING MANUAL FOR WALL, RAIL AND DESK MOUNTED MODELS QAM.X210LED.0210.1...
-
Page 3: Table Of Contents
Tel: 0844 375 9000 - Fax: 0333 321 0973 info@daray.co.uk - www.daray.co.uk DARAY Ltd make every effort to ensure that the information in this document is correct and accurate, however, we cannot be held responsible for errors and omissions. DARAY Ltd... -
Page 4: General Description
Wall, rail and desk mountings are available. The X210LED features a high output-intensity which is variable via an electronic dimmer control. This control also acts as an on/off switch. The light operates from a safe low voltage produced by a built-in mains transformer, and has a swivelling and flexible arm and a rotating head to allow accurate and stable positioning of the light-patch. -
Page 5: Installation/Assembly
3. INSTALLATION Wall Mounting For flush mounting (chased-in cables), refer to the electrician's wiring supplement supplied with Electrician's Kit DRK4064 CAUTION: This product must be earthed. • Remove the 4 cover screws with the hex wrench provided • Release the earth bond from the back- plate by removing the nut and shake-proof washer •... -
Page 6: Desk Mounting
• Fit the screw-head caps. • Ensure the rail end caps are properly fitted. • Screw the rail mount clamp to the rear of the power supply module with the screws supplied • Slacken sufficiently the light clamp to allow the clamp to pass over the rail and fit the light to the rail. -
Page 7: Maintenance
Medical rail XRAIL Desk stand Weighted base PIVOTS Desk mount clamp PIVOTD PLEASE REFER ANY PROBLEMS INITIALLY TO YOUR DISTRIBUTOR. DARAY Customer Services on +44 (0) 844 375 9000 Or email technical@daray.co.uk for help with any problems the distributor cannot solve. -
Page 8: Returns Policy
If you send us goods that do not qualify for return, you will invalidate your claim to any refund, and you will be obliged to compensate DARAY Ltd for the cost of return postage and any other reasonable costs incurred processing the goods. -
Page 9: Warranty
• Failure to use or install the product in accordance with the manufacturer’s instructions. 5. Nothing in this warranty shall have the effect of restricting or excluding the liability of DARAY in respect of: a) Death and personal injury caused by the negligence of DARAY, or for fraud;... - Page 12 VetZ ® BioProtect Antimicrobial protection Marquis Drive · Moira · Derbyshire · DE12 6EJ Tel: 0844 375 9000 · Fax: 0333 321 0973 email: info@daray.co.uk · url: www.daray.co.uk...
