X200
LED Examination Light
Operating & Installation Manual
QAM.X200.0519.12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X200 and is the answer not in the manual?

Questions and answers

Related Manuals for DARAY X200

Summary of Contents for DARAY X200

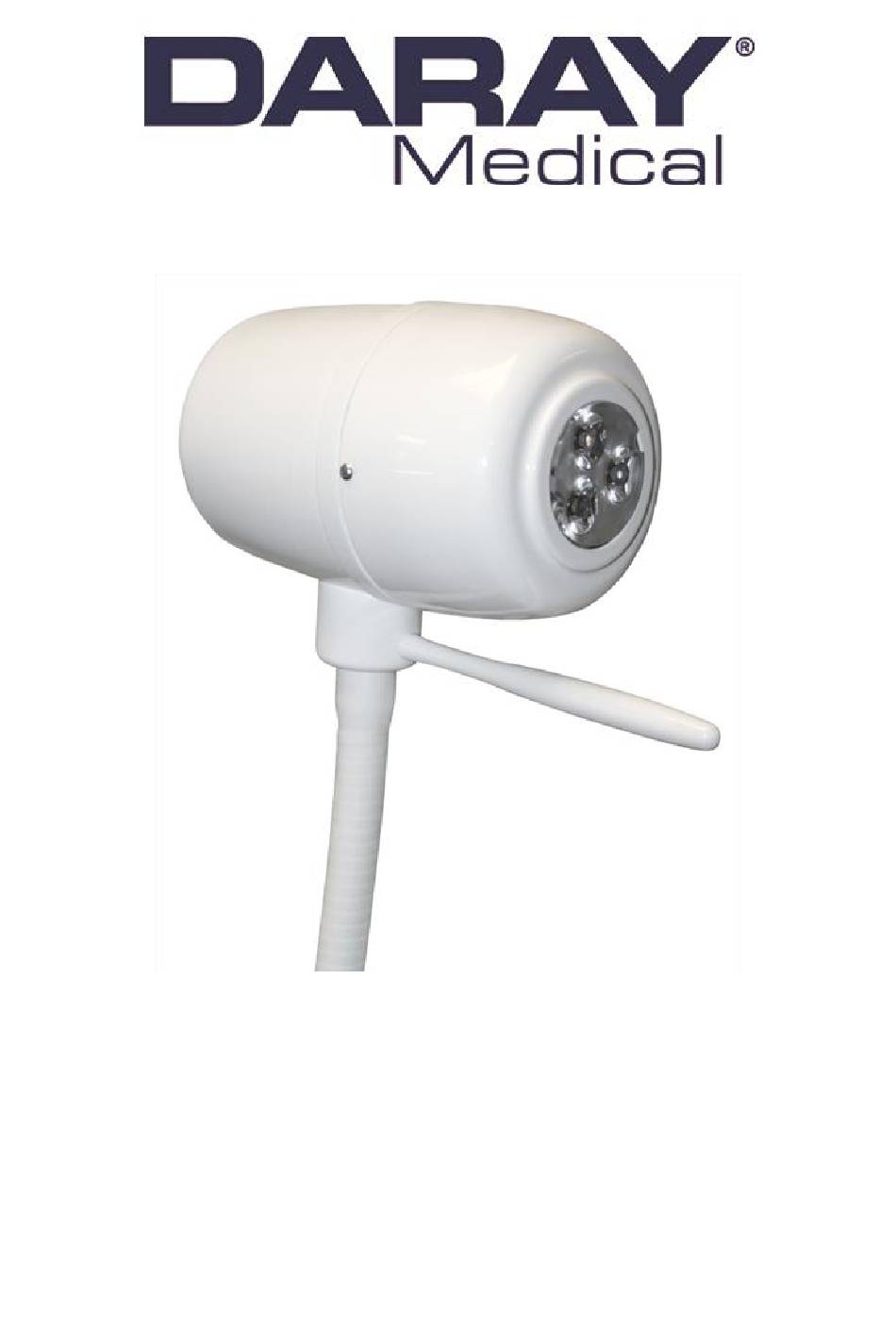

  • Page 1 X200 LED Examination Light Operating & Installation Manual QAM.X200.0519.12...
  • Page 2 Page 1 of 22...

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction ................... 3 1.1 Supported Lights ................. 4 2. Technical Specifications ..............5 2.1 Pre-Installation Responsibilities and component packing list ..... 6 2.2 Pre-Start Checks ................. 6 3. Operation ..................7 3.1 Range of Motion ................7 3.2 Powering On &...

  • Page 4: Introduction

    DARAY. Changes made to the information in this document will be incorporated in new editions of the publication. No responsibility is assumed by DARAY for the use or reliability of software or equipment that is not supplied by DARAY.

  • Page 5: Supported Lights

    X200 LED Wall Mounted Light X200LR X200 LED Rail Mounted Light X200LD X200 LED Desk Mounted Light X200LDS X200 LED Weighted Desk Stand Light X200LFDM X200 LED Fixed Desk Mount Light X200LM X200 LED Mobile Light Page 4 of 22...

  • Page 6: Technical Specifications

    2. Technical Specifications Light Source Light Intensity (Lux) @ 0.5m 32,000 Lux ±5% Light Intensity (Lux) @ 0.75m 14,000 Lux ±5% Light Intensity (Lux) @ 1.0m 8,000 Lux ±5% Light Intensity Adjustment Range 10% - 100% Colour Temperature (Kelvin) 4,300K ±500 Colour Rendering Index (CRI) Colour Rendering (R9) @ 0.5m: 120mm...

  • Page 7: Pre-Installation Responsibilities And Component Packing List

    2.1 Pre-Installation Responsibilities and component packing list This document is a guide to the steps that need to be performed to correctly install the X200 Examination light. However, the work required to be performed is the responsibility of the owner or designated contractor/s.

  • Page 8: Operation

    3. Operation 3.1 Range of Motion This is an image depicting the range of motion on the X200 light (all versions) Page 7 of 22...

  • Page 9: Powering On & Variable Intensity

    3.2 Powering On & Variable Intensity The X200 uses a single button on the back of the head to power the light on and off, and to adjust the brightness (intensity). Press once to power ON. Press and hold to adjust the intensity. It takes approximately 4 seconds to switch between the highest and lowest settings.

  • Page 10: Installation

    Locations of nearest The X200 wall mounted light uses a plug top transformer mains sockets with a DC jack connection. Only the supplied certified power adapter should be used with the light.

  • Page 11: Placement And Installation

    • Tighten the thumbscrew to secure the light in position. The power supply for the X200 is a plug top transformer with a DC jack connection, these can be inserted into any standard UK wall socket. Please note, under no circumstances should this product be connected...
  • Page 12 The light can now be tested by connecting the DC jacks and applying power. Press the switch on the head to power your light on. See page 8 Check arm and head for smooth and correct movement. Your new DARAY light is now ready for use.

  • Page 13: Rail Mounted Version (X200Lr)

    4.2 Rail mounted version (X200LR)  Remove the light from its packaging.  If you have also purchased our XRAIL accessory, hold the rail against the selected location on the wall, bearing in mind the final position and range of travel of the light-head required to project its light patch where it will be needed.

  • Page 14: Mobile Version (X200Lm)

     Fit the spigot on the end of the light arm into the top of the clamp, make sure it is fully secured in place. Apply the power cable, and power the light on. See page 8.  4.4 Mobile version (X200LM) ...
  • Page 15  Insert the orange IEC cable into the black power supply attached to the base upstand.  The light can now be tested by connecting the DC jacks between the power supply and the light, and applying power. Press the switch on the head to power your light on.

  • Page 16: Optional Battery Back-Up

    4.5 Optional battery back-up 4.5.1 Packing List  Battery back-up unit  Double-ended bridge cable  12V PSU + extension cable 4.5.2 Install Plug the power adapter into the wall and insert the DC connector into the battery. Switch the battery to the ON position and the red light on the top of the battery pack will illuminate.

  • Page 17: Maintenance

    The proposed maintenance is only a suggestion. Depending on the use of the product and the operating environment, this may need to be revised more often. DO NOT ATTEMPT ANY FIXES BEFORE CONSULTING DARAY. If you cannot resolve a problem then please contact our helpline on 0800 878 9864 or email support@daray.co.uk...

  • Page 18: Product Cleaning & Care Guidelines

    Acetone-based cleaners (e.g. nail polish remover, Goo-off™)  MEK (Methyl Ethyl Ketone) If you are unsure whether you are using the correct cleaning fluids on your DARAY equipment, please feel free to get in touch with us for advice. Page 17 of 22...

  • Page 19: Adjustments

    5.4 Adjustments The head of the X200 light has a total turning capability of 320 degrees, attempting to push further may cause damage to the movement and internal wiring of the light. 5.4.2 Detaching Parts De-construction of the lights should be done following a reverse order of the instructions in section 4.

  • Page 20: Troubleshooting Guide & Spare Parts

    6. Troubleshooting Guide & Spare Parts Problem Possible Cause Corrective Actions Wall Version - Check the plug top adapter is plugged in and switched Power Supply on at the power socket. Press the button on the back of the On/Off/Intensity light to check if the light will power Button on (if dimmed refer to poor light...
  • Page 21 12V PSU and 3m IEC Cable Kit DRK4176 (mobile) For any SPARE PARTS or TECHNICAL ISSUES phone DARAY’S Service Delivery Team on: +44 (0) 800 878 9864 Opening times 9am–5pm Monday to Thursday (excluding bank holidays) 9am-2:30pm on Friday Or email: support@daray.co.uk...

  • Page 22: Warranty Information

    DARAY Ltd, please read the following information carefully. The DARAY Ltd returns policy provides guidance on when you can return goods we have supplied, and what you can expect from us once you do. To see our detailed returns policy and procedure visit www.daray.co.uk/returns...

  • Page 23: Warranty Details

    Direct damage to your property caused by the proven negligence of Daray. 6. This agreement does not give any rights other than those expressly set out above and in particular, Daray will not be responsible for any loss of income, profits or contracts or any direct or indirect consequential loss, damage caused to or suffered by the purchaser as a direct result of this agreement.
  • Page 24 Service Notes Page 23 of 22...
  • Page 25 Page 24 of 22...
  • Page 26 Page 25 of 22...
  • Page 27 Page 26 of 22...
  • Page 28 DARAY Ltd. Edison House Robian Way Swadlincote Derbyshire United Kingdom DE11 9DH  +44 (0)800 878 9864  +44 (0)333 321 0973 sales@daray.co.uk  www.daray.co.uk...
