DARAY V60 Manual

Pulse oximeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
V60
Pulse Oximeter
Manual
QAM.V60.0915.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V60 and is the answer not in the manual?

Questions and answers

Related Manuals for DARAY V60

Summary of Contents for DARAY V60

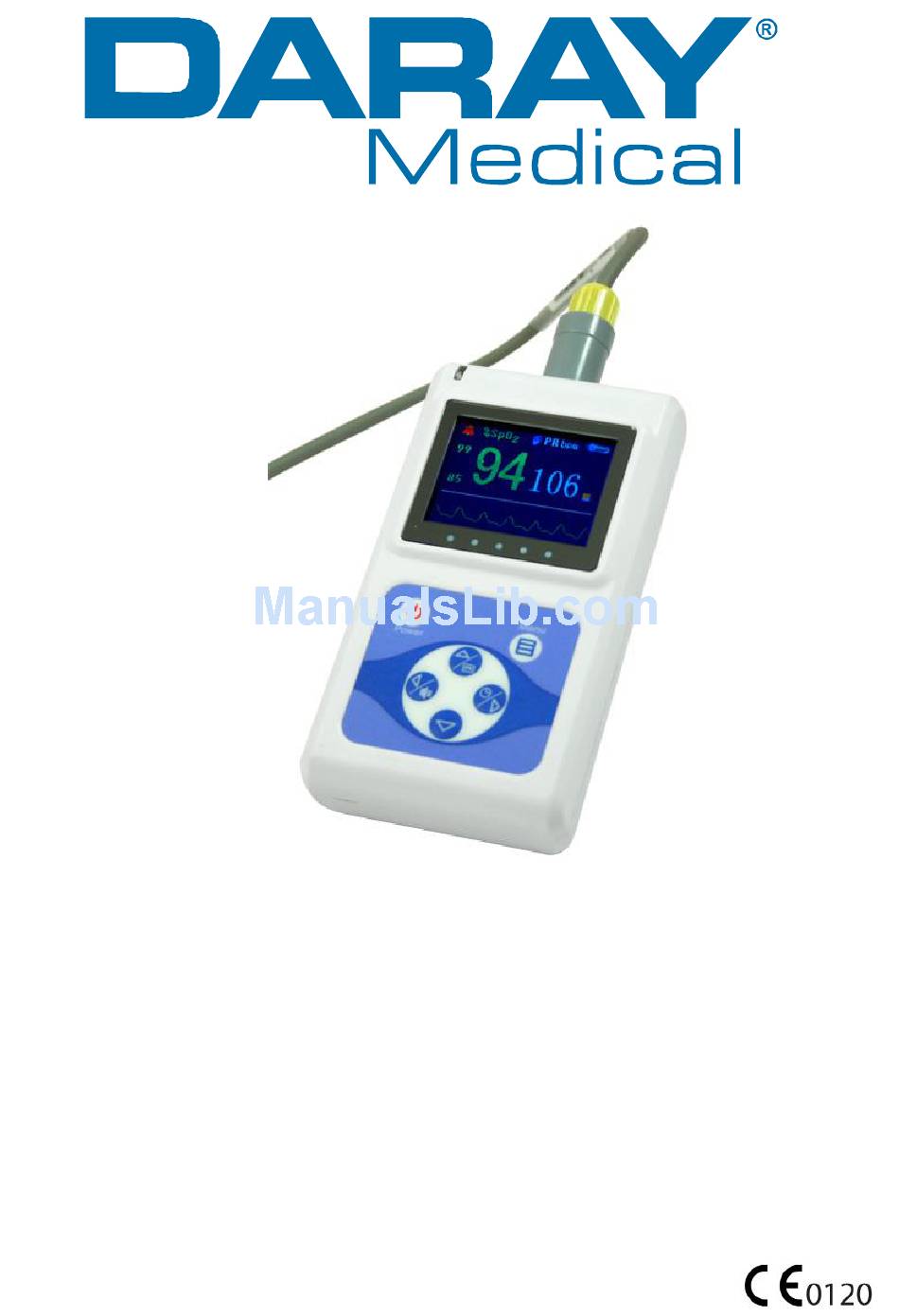

  • Page 1 Pulse Oximeter Manual QAM.V60.0915.4...

  • Page 3: Table Of Contents

    3. PRINCIPLE OF OPERATION 4. TECHNICAL DATA 5. INSTALLATION 6. OPERATION 7. MAINTENANCE TRANSPORTATION AND STORAGE 19 8. TROUBLESHOOTING 9. SYMBOLS 10. TECHNICAL SPECIFICATION RETURNS POLICY WARRANTY WARRANTY REGISTRATION Tel: 0800 878 9864 Fax: 0333 321 0973 email: info@daray.com url: www.daray.com...

  • Page 4: Introduction

    In case of modifications and software upgrades, the information contained in this document is subject to change without notice. The manual describes the V60 Pulse Oximeter’s features and requirements, main structure, functions, specifications, correct methods for transportation, installation, usage, operation, repair, maintenance and storage and the safety procedures to protect both the user and equipment.

  • Page 5: Safety

     Please check the packaging before use to make sure the device and accessories are totally in accordance with the packing list, or else the device may have the possibility of working abnormally.  Only use accessories and probes approved or manufactured by DARAY or the device may be damaged.
  • Page 6  The device has an average product lifetime of three years since first use.  The V60 has an alarm function, users can check and set this function according to the instructions in chapter 6.1 as a reference.  The V60 has the functionality to allow settable alarm limits, when the measured data is beyond the highest or lowest limits, the alarm will sound automatically.

  • Page 7: Overview

    SpO2 is essential for doctors and practitioners in the clinical medical field. The V60 is a small and portable device allowing convenient operation. The V60 uses a fingertip probe system for diagnosis and displays the results in a visual graph showing the measured value of SpO2 which allows for high veracity and repetition.

  • Page 8: Principle Of Operation

    Technology. This provides two beams of different wavelength being focused onto the patient's finger or ear through the sensors reading point. The measured signal is received by a photosensitive element which is electronically processed and the results and subsequently displayed on the V60’s screen. Fig.1 Emitter...

  • Page 9: Technical Data

    4. TECHNICAL DATA 4.1. Main performance  SpO2 value display  With alarm function  Pulse rate value display, bar graph  Stored data can be uploaded to display computers  Pulse waveform display  Real-time data can be transmitted to computers ...

  • Page 10: Installation

    5. INSTALLATION 5.1. View of the front panel Fig.2 Front View 5.2. Underside View and Left View Fig.3 Underside View and Left View 1. Probe socket: to connect the SpO2 sensor 2. USB port: for exporting trend data to a PC...
  • Page 11 5.3. Battery and probe installation Refer to Fig. 4 and insert the two AA size batteries properly in the right direction. Please take care when you insert the batteries as improper insertion may damage the device. Fig.4 batteries installation Replace the cover. Insert the SpO2 probe of the pulse oximeter in the upper socket.

  • Page 12: Operation

    6. OPERATION 6.1. Application method Insert a suitable probe into the socket on the top of the oximeter. Clip the probe onto the patient's finger or ear. Refer to Figure 5. Press the power button until the device turns on. Keep the patient still.
  • Page 13 Review screen Whilst in the Measuring Screen, press the up button to enter the Review Screen (mode 1), as shown in figure 6: In the Review Screen, press the menu button to switch between Review Screen (mode 1) and Review Screen (mode 2). Press the down button to enter the Review Screen for the next or previous hour.
  • Page 14 Menu operations: On the measuring interface, press the “menu button “can enter the menu of figure 9.Users can adjust the settings through the main menu, such as alarm, pulse sound indication, backlight, data storage, data transmission (with the use of data line), the specific method is as follows: Fig.9 Main Menu Interface Alarm setting...
  • Page 15 Pulse sound indication setting On the main menu interface, press the “up button" or "down button" to select “Pulse Sound”, then Press the "left button" Or "right button" to choose to have the Pulse Sound (heart beat)"on" or "off ". Backlight adjustment On the main menu interface, press the “up button"...
  • Page 16 In the state of data storing, after the screen is automatically shut down, the pulse sound indication would be off for saving power. When the storage space is full, it displays “Memory is full” on the screen, and then shut down in a few seconds.
  • Page 17 Setting the time and date On the main menu interface, press the “up button" or "down button" to select “Clock”, then enter the clock setting interface by Press the "left button" or "right button". Fig.15 clock setting interface When entering the clock setting menu, the menu choice bar would be on the item of “set time”, and the state would always be “no”...

  • Page 18: Attention For Operation

    6.2. Attention for operation Please check the device before using, and confirm that it works normally. The measured part should be in a proper position (see the attached illustration of figure 5 for reference), or else it may result in inaccurate measure. The SpO2 sensor and photoelectric receiving tube should be arranged in a way with the subject’s arteriole in a position there between.

  • Page 19: Maintenance Transportation And Storage

    7. MAINTENANCE TRANSPORTATION AND STORAGE 7.1. Cleaning and Disinfecting Using medical alcohol to disinfect the device, nature dry or clean it with clean soft cloth. 7.2. Maintenance Clean and disinfect the device before using according to the User Manual (7.1). Change the battery when the screen shows.

  • Page 20: Troubleshooting

    8. Troubleshooting Problem Possible Reason Solution The SpO2 and Pulse Rate do 1. The measured part is not 1. Place the measured part not be display normally properly positioned. properly and try again. 2. The patient’s SpO2 is too 2. Try again; Go to a low to be detected.

  • Page 21: Symbols

    9. SYMBOLS Symbol Description Warning – Read User Manual %SpO2 Oxygen saturation (%) Pulse rate (BPM) Alarm sound muted Alarm sound paused Alarm sound active Pulse sound muted Pulse sound active Battery power full Battery power low Power on/off Left button/alarm pause button Menu button Right button down button...

  • Page 22: Technical Specification

    10. TECHNICAL SPECIFICATION Information Display Mode 2-digit digital - OLED display Pulse Oxygen Saturation (SpO2) Pulse Rate (PR) 3-digit digital - OLED display Pulse Intensity (bar-graph) bar-graph - OLED display SpO2 Parameter Specification Measuring range 0% ~ 100%, (resolution: 1%) Accuracy 70% ~ 100%：±2%, below 70% unspecified Average value...

  • Page 23: Returns Policy

    If you send us goods that do not qualify for return, you will invalidate your claim to any refund, and you will be obliged to compensate DARAY Ltd for the cost of return postage and any other reasonable costs incurred processing the goods.

  • Page 24: Warranty

     Failure to use or install the product in accordance with the manufacturer’s instructions. 5. Nothing in this warranty shall have the effect of restricting or excluding the liability of Daray in respect of: a) Death and personal injury caused by the negligence of Daray, or for fraud;...
