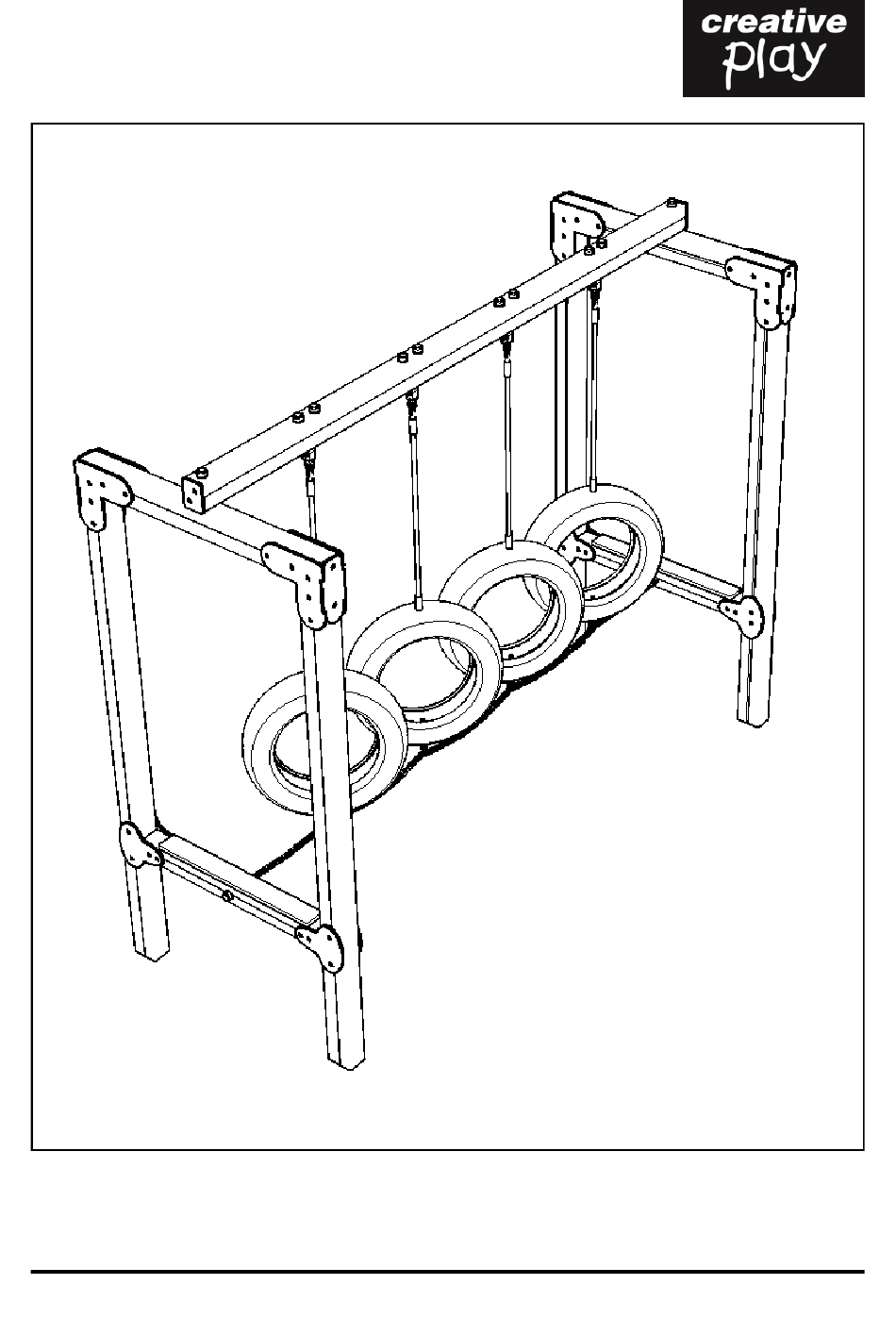

- Page 1 TYRE CROSSING Installation Instructions REF: CH116 - TYRE CROSSING pg 1 of 9...
-
Page 2: Parts Required
(NUT CAP) (PRE -ASSEMBLED TOP SIDE SECTION) (PRE -ASSEMBLED TOP SECTION) (FM80 ‘BRASS SCREW’) (EYEBOLT x 130 ) (M12 x 260 square cup hex bolt) (end caps) (M12 NYLOC) (QUICKLINK ) pg 2 of 11 REF: CH116 - TYRE CROSSING... - Page 3 Parts required (Chain x 650mm) (PRE-ASSEMBLED TYRE ROPE) (Chain x 470mm) QTY x 4 (120mm x 90mm) pg 3 of 11 REF: CH116 - TYRE CROSSING...
-
Page 4: Foundation Details
Foundation details SOIL TIMBER SUPPORT POST CONCRETE pg 4 of 11 REF: CH116 - TYRE CROSSING... -
Page 5: Surfacing Details
Surfacing details = MINIMUM SPACE = SURFACING AREA pg 5 of 11 REF: CH116 - TYRE CROSSING... - Page 6 Assembly instructions Install the timbers (SW1) ENSURE: The faces are in the correct direction Attach the PRE-ASSEMBLED STEP SECTIONS Using FM80 BRASS SCREWS Depending on Rope-Tire dimension pg 6 of 11 REF: CH116 - TYRE CROSSING...
- Page 7 Attach the PRE-ASSEMBLED TOP SIDE SECTIONS Using FM80 BRASS SCREWS NOTES: BOTH SIDES Attach the TOP SECTION to the TOP SIDE SECTIONS using M12 CUP SQUARE BOLTS / NYLOCS / END CAPS pg 7 of 11 REF: CH116 - TYRE CROSSING...
- Page 8 Using NYLOCKS / END CAPS NOTES: BOTH SIDES Attach the TYRE - ROPE to the TOP PIECE Use LOCK TIGHT to ensure the quick link remains CLOSED ENSURE: COVER THE ENDS WITH BLACK CAPS pg 8 of 11 REF: CH116 - TYRE CROSSING...
- Page 9 Use LOCK TIGHT to ensure the quick link remains CLOSED NOTES: BOTH SIDES Attach the QUICKLINK between CHAINS and EYEBOLTS Use LOCK TIGHT to ensure the quick link remains CLOSED ENSURE: QUICKLINK IS SCREWED DOWN pg 9 of 11 REF: CH116 - TYRE CROSSING...
- Page 10 Assembly instructions Attach the QUICKLINK between CHAINS and EYEBOLTS Use LOCK TIGHT to ensure the quick link remains CLOSED pg 10 of 11 REF: CH116 - TYRE CROSSING...
-
Page 11: Additional Dimensions
Additional dimensions pg 11 of 11 REF: CH116 - TYRE CROSSING...
