Watchguard Firebox X1000 User Manual page 295

7
Open Policy Manager from Firebox System Manager.
Do not connect to the Firebox at this time.
8
In Policy Manager, select File => Open = >
Configuration File. Select the configuration file you
want to load onto the Firebox and load it into Policy
Manager.
9
In Policy Manager, select File => Save = > To Firebox.
You are then prompted for the IP address of the
Firebox and the Firebox configuration passphrase. Use
the address you used to ping the Firebox and wg for the
passphrase.

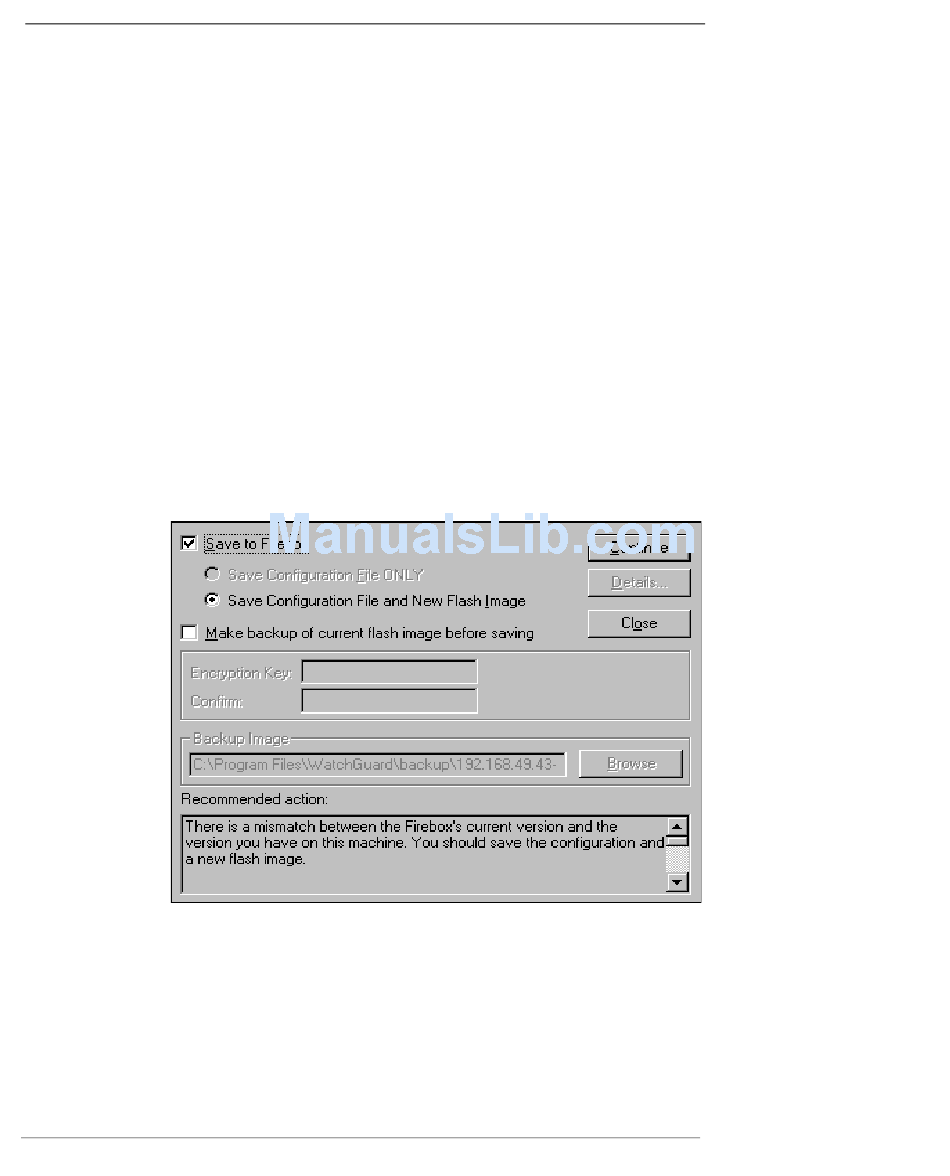

10 When the Firebox Flash Disk dialog box appears, as
shown in the following figure, select the button
marked Save Configuration File and New Flash
Image. Make sure the checkbox marked Make Backup
of current flash image before saving is not selected.
After the configuration has been uploaded and the Firebox
has been rebooted, the Firebox light sequence should look
like this:
Armed light: Steady
Sys A light: Steady
User Guide
Method 1: Ethernet Dongle Method
273
