3

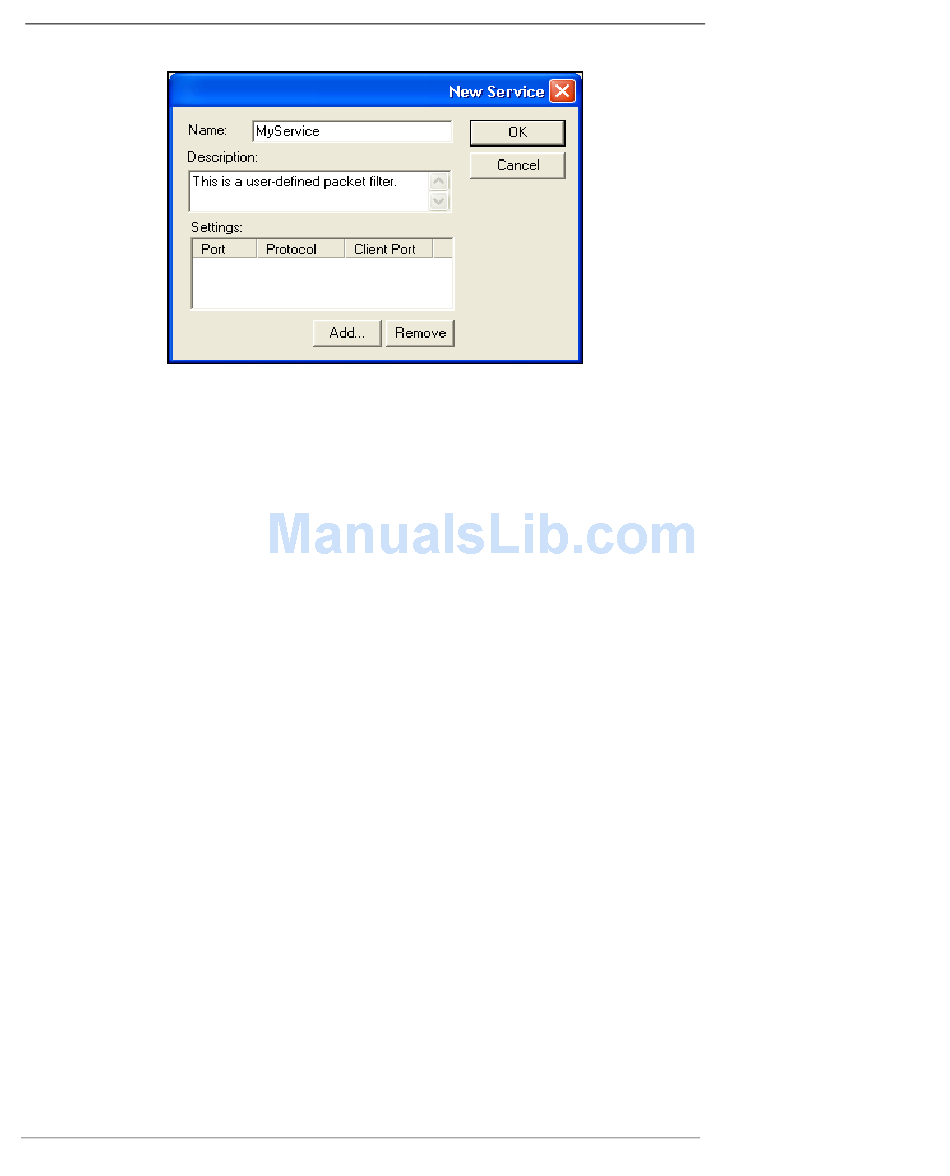

In the Name text box, type the name of the service.
This name must be unique and not already listed in the Services
dialog box.
4
In the Description text box, type a description of the
service.
This description appears in the Details section of the New
Services dialog box when you select the service.
5
To begin setting the port used for this service, click
Add.
The Add Port dialog box appears.
6
From the Protocol drop-down list, select the protocol
used for this new service. The following options are
available:
TCP
UDP
HTTP
IP
User Guide
TCP-based services
UDP-based services
Services examined by the HTTP proxy
Filter a service using something other than TCP (IP
protocol 6) or UDP (IP protocol 17) for the next-
level protocol. Select IP to create a protocol number
service.
Adding and Configuring Services
121
