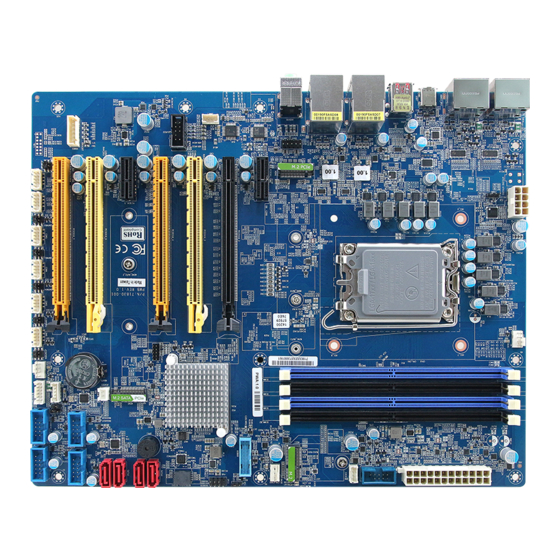

BC680R
Intel® 12th/13th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron®
Processor, supports LGA 1700 CPU ATX motherboard
User's Manual
st
1
Ed –08 November 2023
Part No. E2047BC6R00R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC680R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avalue Technology BC680R

Summary of Contents for Avalue Technology BC680R

  • Page 1 BC680R Intel® 12th/13th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor, supports LGA 1700 CPU ATX motherboard User’s Manual Ed –08 November 2023 Part No. E2047BC6R00R...
  • Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
  • Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
  • Page 4 A product returned without proof of the purchase date is not eligible for warranty service. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. 4 BC680R User’s Manual...

  • Page 5: Table Of Contents

    2.3.19 LAN LED status connector (LAN_LED1) ..................29 2.3.20 Chassis intrusion connector (JCASE1) ..................29 3.BIOS Setup ........................30 BIOS setup ......................31 3.6.1 Main Menu ............................31 3.6.1.1 System Date .......................... 31 3.6.1.2 System Time .......................... 31 3.6.2 Advanced Menu ..........................32 BC680R User’s Manual...
  • Page 6 3.6.3.2.1.7 PCI Express Root Port 21(x4 Slot 4) ..................67 3.6.3.2.1.8 PCI Express Root Port 25(x4 Slot 7) ..................68 3.6.3.2.2 SATA Configuration ....................... 69 3.6.3.2.3 USB Configuration ......................... 70 3.6.3.2.4 HD Audio Configuration ......................71 3.6.3.2.5 SerialIo Configuration ......................71 3.6.4 Security............................72 6 BC680R User’s Manual...
  • Page 7 Install Audio Driver (For Realtek ALC888S HD Audio) ..........80 Install LAN Driver ....................81 Install Serial IO Driver ..................... 82 Install Intel_DTT ...................... 83 Install GNA ......................84 5. Mechanical Drawing ....................85 Mechanical Drawing ....................86 BC680R User’s Manual...

  • Page 8: Getting Started

    1.2 Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x BC680R Motherboard  1 x I/O Shield  8 BC680R User’s Manual...

  • Page 9: Document Amendment History

    User’s Manual 1.3 Document Amendment History Revision Date Comment November 2023 Avalue Initial Release BC680R User’s Manual...

  • Page 10: Manual Objectives

    We strongly recommend that you study this manual carefully before attempting to set up BC680R or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance.

  • Page 11: System Specifications

    2 x 2.5 Gigabit Ethernet 6 x USB 3.2 Gen 2x1 Type-A Connectors USB 3.2 1 x USB 3.2 Gen 2x2 Type-C Connector 2 x DP++ HDMI 2 x HDMI 2.0b Audio Line out, Mic in Onboard I/O BC680R User’s Manual 11...
  • Page 12 1 x 1 x 4 pin, pitch 2.00mm connector for Amplifier Display Graphic Chipset Intel® 12th /13th Generation CPU integrated Spec. & 2 x HDMI 2.0b 4K@60Hz Resolution 2 x Dual Mode DisplayPort 1.4a 4K@60Hz Multiple Display 4 Independent Displays 12 BC680R User’s Manual...
  • Page 13 1. PSD: 0.00202023G²/Hz 0.5 Grms 2. Operation mode 3. Test Frequency : 5-500Hz 4. Test Axis : X,Y and Z axis 5. 30 minutes per each axis 6. IEC 60068-2-64 Test:Fh Random Vibration Non Operation Reference IEC60068-2-64 Testing procedures BC680R User’s Manual 13...
  • Page 14 **Note: Windows 11 is not a LTSC release and will be supported on the Intel CCG Client roadmap. OS Information NEX Network & Edge customers may install non-LTSC releases(e.g. Win11) on NEX Network & Edge processors.** Win10 64bit UEFI Linux Note: Specifications are subject to change without notice. 14 BC680R User’s Manual...

  • Page 15: Architecture Overview-Block Diagram

    User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of BC680R. BC680R User’s Manual 15...

  • Page 16: Hardware Configuration

    BC680R User’s Manual 2. Hardware Configuration 16 BC680R User’s Manual...

  • Page 17: Product Overview

    User’s Manual 2.1 Product Overview BC680R User’s Manual 17...

  • Page 18: Jumper And Connector List

    4 x 1 wafer, pitch 2.54mm CHA_FAN2 Chassis Fan connector 4 x 1 wafer, pitch 2.54mm Intel Front Panel connector 5 x 2 header, pitch 2.54mm F_PANEL1 ATX power connectors 12 x 2 wafer, pitch 4.20mm ATX1 18 BC680R User’s Manual...
  • Page 19 USB 3.2 Type A Connector x 2 USB56 USB 3.2 Type C Connector x 1 USB7 RJ-45 Ethernet Connector x 1 LAN1_USB12/ 2.5 Gigabit Ethernet LAN2_USB34 USB3.2 Type A Connector x 2 Audio phone jack Line-out, Mic-in AUDIO1 BC680R User’s Manual 19...

  • Page 20: Setting Jumpers & Connectors

    BC680R User’s Manual 2.3 Setting Jumpers & Connectors 2.3.1 Clear CMOS (CLCMOS1) Normal* Clear CMOS * Default 2.3.2 AT/ATX Power Mode Select (JPSON1) ATX* * Default 20 BC680R User’s Manual...

  • Page 21: Com Power Setting (Jcompwr1~6)

    User’s Manual 2.3.3 COM POWER SETTING (JCOMPWR1~6) Ring* JCOMPWR6 JCOMPWR5 +12V JCOMPWR4 JCOMPWR3 JCOMPWR2 JCOMPWR1 * Default 2.3.4 CPU fan connector (CPUFAN1) Signal +12V FAN_SPEED2 FAN_PWM1 BC680R User’s Manual 21...

  • Page 22: System Fan Connector (Cha_Fan 1)

    BC680R User’s Manual 2.3.5 System fan connector (CHA_FAN 1) Signal +12V FAN_SPEED2 FAN_PWM2 2.3.6 System fan connector (CHA_FAN 2) Signal FAN_PWM3 FAN_SPEED3 +12V 22 BC680R User’s Manual...

  • Page 23: System Panel (F_Panel)

    User’s Manual 2.3.7 System Panel (F_PANEL) Signal PIN PIN Signal HHD LED+ +5VSB HDD LED# PWR LED# PANSWIN# 2.3.8 ATX Power connector (ATXPWR1) Signal Signal -12V PS_ON PWRER OK +5VSB +12V +12V BC680R User’s Manual 23...

  • Page 24: Atx Power Connector (Atxpwr1)

    BC680R User’s Manual 2.3.9 ATX Power connector (ATXPWR1) Signal Signal +12V +12V +12V +12V 2.3.10 Serial Port connectors (COM1~6) COM6 COM5 COM4 COM3 Signal PIN PIN Signal COM2 RI3xPOWERxJMP COM1 CTS# RTS# DSR# DTR# DCD# 24 BC680R User’s Manual...

  • Page 25: Serial Ata Connector (Sata2, Sata4)

    User’s Manual 2.3.11 Serial ATA Connector (SATA2, SATA4) Signal 2.3.12 Serial ATA Connector (SATA1, SATA3) Signal BC680R User’s Manual 25...

  • Page 26: Usb Connectors (Usb2_Hr1, Usb2_Hr2, Usb2_Hr3, Usb2_Hr4)

    Signal PIN PIN Signal USB+5V USB+5V USB - USB - USB + USB + 2.3.14 USB3.2 connector (USB89) Signal PIN PIN Signal USB+ USB+ USB- USB- USB3_TX+ USB3_TX+ USB3_TX- USB3_TX- USB3_RX+ USB3 RX+ USB3_RX- USB3 RX- 26 BC680R User’s Manual...

  • Page 27: Bit Gpio Header (Jdio1)

    8 bit GPIO header (JDIO1) Signal PIN PIN Signal SIO_GPIO4 SIO_GPIO0 SIO_GPIO5 SIO_GPIO1 SIO_GPIO6 SIO_GPIO2 SIO_GPIO7 SIO_GPIO3 SMB_DATA_ SMB_CLK_ RESUME RESUME +5Vsb 2.3.16 Front Audio connector (FP_AUDIO1) Signal PIN PIN Signal LINE2-JD LINE2L SENSEB MIC2-JD LINE2R +3.3V MIC2R MIC2L BC680R User’s Manual 27...

  • Page 28: Amplifier Connector (Jamp1)

    BC680R User’s Manual 2.3.17 Amplifier connector (JAMP1) Signal AMP_L- AMP_L+ AMP_R- AMP_R+ 2.3.18 SM bus connector (SMB1) Signal SMB_CLK SMB_DATA SMB_ALT +3.3V 28 BC680R User’s Manual...

  • Page 29: Lan Led Status Connector (Lan_Led1)

    User’s Manual 2.3.19 LAN LED status connector (LAN_LED1) Signal PIN PIN Signal +3V_Dual +3V_Dual LAN1_LED +3V_Dual +3V_Dual +3V_Dual +3V_Dual 2.3.20 Chassis intrusion connector (JCASE1) Signal SIO_CASEOPEN# BC680R User’s Manual 29...

  • Page 30: Bios Setup

    BC680R User’s Manual 3.BIOS Setup 30 BC680R User’s Manual...

  • Page 31: Bios Setup

    Note: The BIOS setup screens shown in this chapter are for reference purposes only, and may not exactly match what you see on your screen. Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. BC680R User’s Manual 31...

  • Page 32: Advanced Menu

    BC680R User’s Manual 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 3.6.2.1 CPU Configuration 32 BC680R User’s Manual...

  • Page 33: Cpu - Power Management Control

    Intel (R)Trusted Technology Enabled Execution Technology. Changes require a full power cycle to take effect. 3.6.2.2 CPU - Power Management Control Item Options Description Disabled Allows more than two frequency ranges to be Intel(R) SpeedStep(tm) Enabled[Default], supported. BC680R User’s Manual 33...

  • Page 34: Pch-Fw Configuration

    3.6.2.3 PCH-FW Configuration Item Options Description Disabled When Disabled ME will be put into ME Temporarily ME State Enabled[Default], Disabled Mode. Lock[Default], ME UnLock control function. Set UnLock will system ME UnLock Control Unlock shutdown for active function. 34 BC680R User’s Manual...

  • Page 35: Thunderbolt(Tm) Configuration

    User’s Manual 3.6.2.4 Thunderbolt(TM) Configuration Item Option Description Discrete Thunderbolt(TM) Disabled[Default], Enabled or Disabled Discrete Thunderbolt(TM) Support Enabled Support. 3.6.2.5 Trusted Computing BC680R User’s Manual 35...

  • Page 36: Acpi Settings

    S3 Video Repost Enable or disable S3 video repost Enabled Disabled[Default], Enable or disable PCIE to wake the system from PCIE# Wake from S5 Enabled Disabled[Default], Enables/Disables wake on ring function under Wake on Ring Enabled ACPI S3/S4/S5. 36 BC680R User’s Manual...

  • Page 37: Nct6126D Super Io Configuration

    Set Parameters of Serial Port 3 (COMC). Serial Port 4 Configuration Set Parameters of Serial Port 4 (COMD). Serial Port 5 Configuration Set Parameters of Serial Port 5 (COME). Serial Port 6 Configuration Set Parameters of Serial Port 6 (COMF). BC680R User’s Manual 37...

  • Page 38: Serial Port 1 Configuration

    3.6.2.7.1 Serial Port 1 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM) Enabled[Default], Auto[Default], IO=3F8h; IRQ4; IO=3F8h; IRQ3,4,5,6,7,9,10,11,12; Select an optimal settings for Super IO Change Settings IO=2F8h; IRQ3,4,5,6,7,9,10,11,12; Device IO=3E8h; IRQ3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ3,4,5,6,7,9,10,11,12; 38 BC680R User’s Manual...

  • Page 39: Serial Port 2 Configuration

    3.6.2.7.2 Serial Port 2 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM) Enabled[Default], Auto[Default], IO=2F8h; IRQ3; IO=3F8h; IRQ3,4,5,6,7,9,10,11,12; Select an optimal settings for Super IO Change Settings IO=2F8h; IRQ3,4,5,6,7,9,10,11,12; Device IO=3E8h; IRQ3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ3,4,5,6,7,9,10,11,12; BC680R User’s Manual 39...

  • Page 40: Serial Port 3 Configuration

    3.6.2.7.3 Serial Port 3 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM) Enabled[Default], Auto[Default], IO=3E8h; IRQ5; IO=3E8h; IRQ3,4,5,6,7,9,10,11,12; Select an optimal settings for Super IO Change Settings IO=2E8h; IRQ3,4,5,6,7,9,10,11,12; Device IO=220h; IRQ3,4,5,6,7,9,10,11,12; IO=228h; IRQ3,4,5,6,7,9,10,11,12; 40 BC680R User’s Manual...

  • Page 41: Serial Port 4 Configuration

    3.6.2.7.4 Serial Port 4 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM) Enabled[Default], Auto[Default], IO=2E8h; IRQ10; IO=3E8h; IRQ3,4,5,6,7,9,10,11,12; Select an optimal settings for Super IO Change Settings IO=2E8h; IRQ3,4,5,6,7,9,10,11,12; Device IO=220h; IRQ3,4,5,6,7,9,10,11,12; IO=228h; IRQ3,4,5,6,7,9,10,11,12; BC680R User’s Manual 41...

  • Page 42: Serial Port 5 Configuration

    3.6.2.7.5 Serial Port 5 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM) Enabled[Default], Auto[Default], IO=228h; IRQ=15; IO=3E8h; IRQ3,4,5,6,7,9,10,11,12; Select an optimal settings for Super IO Change Settings IO=2E8h; IRQ3,4,5,6,7,9,10,11,12; Device IO=220h; IRQ3,4,5,6,7,9,10,11,12; IO=228h; IRQ3,4,5,6,7,9,10,11,12; 42 BC680R User’s Manual...

  • Page 43: Serial Port 6 Configuration

    3.6.2.7.6 Serial Port 6 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], Auto[Default], IO=220h; IRQ=6; IO=3E8h; IRQ3,4,5,6,7,9,10,11,12; Select an optimal settings for Super IO Change Settings IO=2E8h; IRQ3,4,5,6,7,9,10,11,12; Device IO=220h; IRQ3,4,5,6,7,9,10,11,12; IO=228h; IRQ3,4,5,6,7,9,10,11,12; BC680R User’s Manual 43...

  • Page 44: Hardware Monitor

    BC680R User’s Manual 3.6.2.8 Hardware Monitor 3.6.2.8.1 Hardware Monitor Item Options Description Disabled Smart Fan Function Enabled[Default], Smart fan function Enable/Disabled Manual 44 BC680R User’s Manual...

  • Page 45: Smart Fan Function

    User’s Manual 3.6.2.8.2 Smart Fan Function BC680R User’s Manual 45...
  • Page 46 Options Description Disabled CPU_FAN1 Smart Fan CPU Smart FAN Target Temperature Target 55C[Default], 12.5%[Default], 37.5% CPU_FAN1 MIN.FAN CPU Smart FAN minimum settings Speed(%) 62.5% 87.5% Disabled CHA_FAN1 Smart Fan Chassis Smart FAN Target Temperature Target 55C[Default], 46 BC680R User’s Manual...

  • Page 47: S5 Rtc Wake Settings

    Enable or disable System wake on alarm event. Select Disabled[Default], FixedTime, system will wake on the hr::min::sec Wake system from S5 Fixed Time specified. Select Dynamic Time, System will wake on Dynamic Time the current time + Increase minute(s). BC680R User’s Manual 47...
  • Page 48 BC680R User’s Manual 3.6.2.10 Serial Port Console Redirection Item Options Description Disabled Console Redirection Console Redirection Enabled or Disabled. Enabled[Default], 3.6.2.10.1 Console Redirection Settings 48 BC680R User’s Manual...
  • Page 49 With this mode enabled only text will be sent. This is to Recorder Mode Enabled[Default], capture Terminal data. Disabled Resolution 100x31 Enables or disables extended terminal resolution Enabled[Default], VT100[Default], LINUX XTERMR6 Putty KeyPad Select FunctionKey and KeyPad on Putty. ESCN VT400 BC680R User’s Manual 49...

  • Page 50: Usb Configuration

    BC680R User’s Manual 3.6.2.11 Intel TXT Information 3.6.2.12 USB Configuration The USB Configuration menu helps read USB information and configures USB settings. 50 BC680R User’s Manual...

  • Page 51: Network Stack Configuration

    Mass Storage Devices Forced FDD Optical drives are emulated as ‘CDROM’, drives with Hard Disk no media will be emulated according to a drive type. CD-ROM 3.6.2.13 Network Stack Configuration BC680R User’s Manual 51...

  • Page 52: Ip Configuration

    Number of time the presence of media will be checked. Media detect count Use either +/- or numeric keys set the value. 3.6.2.14 IP Configuration Item Options Description Disabled[Default], Auto Configuration Every Boot Enable/Disable UEFI Network stack. On demand 52 BC680R User’s Manual...

  • Page 53: Nvme Configuration

    User’s Manual 3.6.2.15 NVMe Configuration 3.6.2.16 Remote Server Configuration Item Options Description Enable to communicate with management server. If Remote Firmware Disable Disabled then communication will not happen with Management Enable[Default], management server BC680R User’s Manual 53...

  • Page 54: Chipset

    Management server Address to be used if Auto Server Searching is either Server Address disabled or failed. If changed, need to do Clear Enrollment, if already enrolled with previous IP Clear Enrollment Clear existing Enrollment information 3.6.3 Chipset 54 BC680R User’s Manual...

  • Page 55: System Agent (Sa) Configuration

    User’s Manual 3.6.3.1 System Agent (SA) Configuration Item Options Description Disabled VT-d VT-d capability Enabled[Default], 3.6.3.1.1 Memory Configuration BC680R User’s Manual 55...
  • Page 56 Select which of IGFX/PEG/PCIE Graphics device should Primary Display PEG Slot be Primary Display Or select HG for Hybrid Gfx. PCIE Auto[Default], Internal Graphics Disabled Keep IGFX enabled based on the setup options. Enabled Disabled[Default], PSMI SUPPORT PSMI Enable/Disable Enabled 56 BC680R User’s Manual...
  • Page 57 128M 160M Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory DVMT Pre-Allocated size used by the Internal Graphics Device. 32M/F7 60M[Default], 3.6.3.1.3 VMD setup menu Item Options Description Disabled[Default], Enabled VMD controller Enable/Disable to VMD controller Enabled BC680R User’s Manual 57...
  • Page 58 BC680R User’s Manual 3.6.3.1.4 PCI Express Configuration Item Options Description Detect Non-Compliance Disabled[Default], Detect Non-Compliance PCI Express Device in PEG Device Enabled 3.6.3.1.4.1 PCI Express Root Port 1 58 BC680R User’s Manual...
  • Page 59 Disabled[Default], Set the ASPM Level: Force L0s - Force all links to ASPM L0s State AUTO - BIOS auto configure DISABLE - Disables ASPM L0sL1 Auto[Default], Gen1 Gen2 PCIe Speed Configure PCIe Speed Gen3 Gen4 Gen5 BC680R User’s Manual 59...

  • Page 60: Pch-Io Configuration

    (G3 state). Last State[Default], Flash Protection Range Disabled Enable Flash Protection Range Registers Registers (FPRR) Enabled[Default], Enabled[Default], GPIO Group Control Configure the digital GPIO pins Disabled 15.3dp[Default], 21.2dp Amplifier GAIN(db) Select Amplifier value 27.2dp 31.8dp 60 BC680R User’s Manual...

  • Page 61: Pch-Io Configuration

    User’s Manual 3.6.3.2.1 PCH-IO Configuration 3.6.3.2.1.1 PCI Express Root Port 1(x4 Slot 3) Item Options Description PCI Express Root Disabled Control the PCI Express Root Port. Port 1(x4 Slot 3) Enabled[Default], BC680R User’s Manual 61...

  • Page 62: Pci Express Root Port 5(X1 Slot 1)

    L0s State AUTO - BIOS auto configure DISABLE - Auto Disables ASPM Auto[Default], Gen1 PCIe Speed Gen2 Configure PCIe Speed Gen3 Gen4 Detect Non-Compliance Disabled[Default], Detect Non-Compliance PCI Express Device. If Device Enabled enable, it will take more at POST time. 62 BC680R User’s Manual...

  • Page 63: Pci Express Root Port 6(X1 Slot 5)

    L0s State AUTO - BIOS auto configure DISABLE - Auto Disables ASPM Auto[Default], Gen1 PCIe Speed Gen2 Configure PCIe Speed Gen3 Gen4 Detect Non-Compliance Disabled[Default], Detect Non-Compliance PCI Express Device. If Device Enabled enable, it will take more at POST time. BC680R User’s Manual 63...

  • Page 64: Pci Express Root Port 7(X1 Slot 6)

    L0s State AUTO - BIOS auto configure DISABLE - Auto Disables ASPM Auto[Default], Gen1 PCIe Speed Gen2 Configure PCIe Speed Gen3 Gen4 Detect Non-Compliance Disabled[Default], Detect Non-Compliance PCI Express Device. If Device Enabled enable, it will take more at POST time. 64 BC680R User’s Manual...

  • Page 65: Pci Express Root Port 8(X1 Key E)

    L0s State AUTO - BIOS auto configure DISABLE - Auto Disables ASPM Auto[Default], Gen1 PCIe Speed Gen2 Configure PCIe Speed Gen3 Gen4 Detect Non-Compliance Disabled[Default], Detect Non-Compliance PCI Express Device. If Device Enabled enable, it will take more at POST time. BC680R User’s Manual 65...

  • Page 66: Pci Express Root Port 13(X4 Key M)

    L0s State AUTO - BIOS auto configure DISABLE - Auto Disables ASPM Auto[Default], Gen1 PCIe Speed Gen2 Configure PCIe Speed Gen3 Gen4 Detect Non-Compliance Disabled[Default], Detect Non-Compliance PCI Express Device. If Device Enabled enable, it will take more at POST time. 66 BC680R User’s Manual...

  • Page 67: Pci Express Root Port 21(X4 Slot 4)

    L0s State AUTO - BIOS auto configure DISABLE - Auto Disables ASPM Auto[Default], Gen1 PCIe Speed Gen2 Configure PCIe Speed Gen3 Gen4 Detect Non-Compliance Disabled[Default], Detect Non-Compliance PCI Express Device. If Device Enabled enable, it will take more at POST time. BC680R User’s Manual 67...

  • Page 68: Pci Express Root Port 25(X4 Slot 7)

    L0s State AUTO - BIOS auto configure DISABLE - Auto Disables ASPM Auto[Default], Gen1 PCIe Speed Gen2 Configure PCIe Speed Gen3 Gen4 Detect Non-Compliance Disabled[Default], Detect Non-Compliance PCI Express Device. If Device Enabled enable, it will take more at POST time. 68 BC680R User’s Manual...

  • Page 69: Sata Configuration

    Disabled Port 1 Enable or Disable SATA Port Enabled[Default], Disabled Port 2 Enable or Disable SATA Port Enabled[Default], Disabled Port 3 Enable or Disable SATA Port Enabled[Default], Disabled Port 4 Enable or Disable SATA Port Enabled[Default], BC680R User’s Manual 69...

  • Page 70: Usb Configuration

    USB1011 Standby Disabled Enable/Disable USB Standby Power Power Enabled[Default], USB1213 Standby Disabled Enable/Disable USB Standby Power Power Enabled[Default], USB1415 Standby Disabled Enable/Disable USB Standby Power Power Enabled[Default], USB1617 Standby Disabled Enable/Disable USB Standby Power Power Enabled[Default], 70 BC680R User’s Manual...

  • Page 71: Hd Audio Configuration

    User’s Manual 3.6.3.2.4 HD Audio Configuration Item Options Description Control Detection of HD-Audio device. Disabled HD Audio Disabled = HDA will be unconditionally disabled Enabled[Default], Enabled = HDA will be unconditionally enabled 3.6.3.2.5 SerialIo Configuration BC680R User’s Manual 71...

  • Page 72: Security

    This is needed to allow PCI enumerator access Post Code Only functions above 0 in a multifunction device. The following devices depend on each other: 12C0 3.6.4 Security Item Description Administrator Set Administrator Password Password User Password Set User Password 72 BC680R User’s Manual...

  • Page 73: Boot

    Sets the system boot order Hard Disk[Default], Network, UEFI AP, Disabled USB Key, CD/DVD[Default], USB CD/DVD, Boot Option #2 USB Hard Disk, USB Floppy, Sets the system boot order NVME, Hard Disk, Network, UEFI AP, Disabled BC680R User’s Manual 73...
  • Page 74 Sets the system boot order NVME, Hard Disk, Network[Default], UEFI AP, Disabled USB Key, CD/DVD, USB CD/DVD, Boot Option #8 USB Hard Disk, USB Floppy, Sets the system boot order NVME, Hard Disk, Network, UEFI AP[Default], Disabled 74 BC680R User’s Manual...

  • Page 75: Save & Exit

    Reset the system after saving the changes. 3.6.6.4 Restore Defaults Restore/Load default values for all the setup option. 3.6.6.5 Launch EFI Shell from filesystem device Attempts to launch EFI shell application from one of the available filesystem devices. 3.6.6.6 AMIFWUpdate Launches AMIFWUpdate. BC680R User’s Manual 75...

  • Page 76: Drivers Installation

    BC680R User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 76 BC680R User’s Manual...

  • Page 77: Install Chipset Driver

    Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step1. Click Next. Step 3. Click Install. Step 2. Click Accept. Step 4. Complete setup. BC680R User’s Manual 77...

  • Page 78: Install Vga Driver

    Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 1. Click Begin installation. Step 3. Click Start. Step 2. Click I agree. Step 4. Click Finish to complete setup. 78 BC680R User’s Manual...

  • Page 79: Install Me Driver

    Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next Step 1. Click Next to continue setup. Step 4. Click Finish to complete the setup Step 2. Click Next. BC680R User’s Manual 79...

  • Page 80: Install Audio Driver (For Realtek Alc888S Hd Audio)

    All drivers can be found on the Avalue Official Website: http://www.avalue.com.tw. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 2. Select Finish to complete Step 1. Click Next to Install. Installation. 80 BC680R User’s Manual...

  • Page 81: Install Lan Driver

    4.5 Install LAN Driver All drivers can be found on the Avalue Official Website: http://www.avalue.com.tw. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 1. Click InstallPackge. Step 2. BC680R User’s Manual 81...

  • Page 82: Install Serial Io Driver

    Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Finish to complete setup. 82 BC680R User’s Manual...

  • Page 83: Install Intel_Dtt

    Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 1. Click Next to continue installation. Step 3. Click Next. Step 2. Click Next. Step 4. Click Finish to complete setup. BC680R User’s Manual 83...

  • Page 84: Install Gna

    Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 2. Click Next to continue installation. Step 1. Click Browse my computer for Step 3. Click Finish to complete setup. drivers. 84 BC680R User’s Manual...

  • Page 85: Mechanical Drawing

    User’s Manual 5. Mechanical Drawing BC680R User’s Manual 85...

  • Page 86: Mechanical Drawing

    BC680R User’s Manual 5.1 Mechanical Drawing Unit: mm 86 BC680R User’s Manual...
  • Page 87 User’s Manual Unit: mm BC680R User’s Manual 87...
