Lee & Plumpton Satellite MP Cant Bracket Pack Assembly Instruction

MP
C
B
A

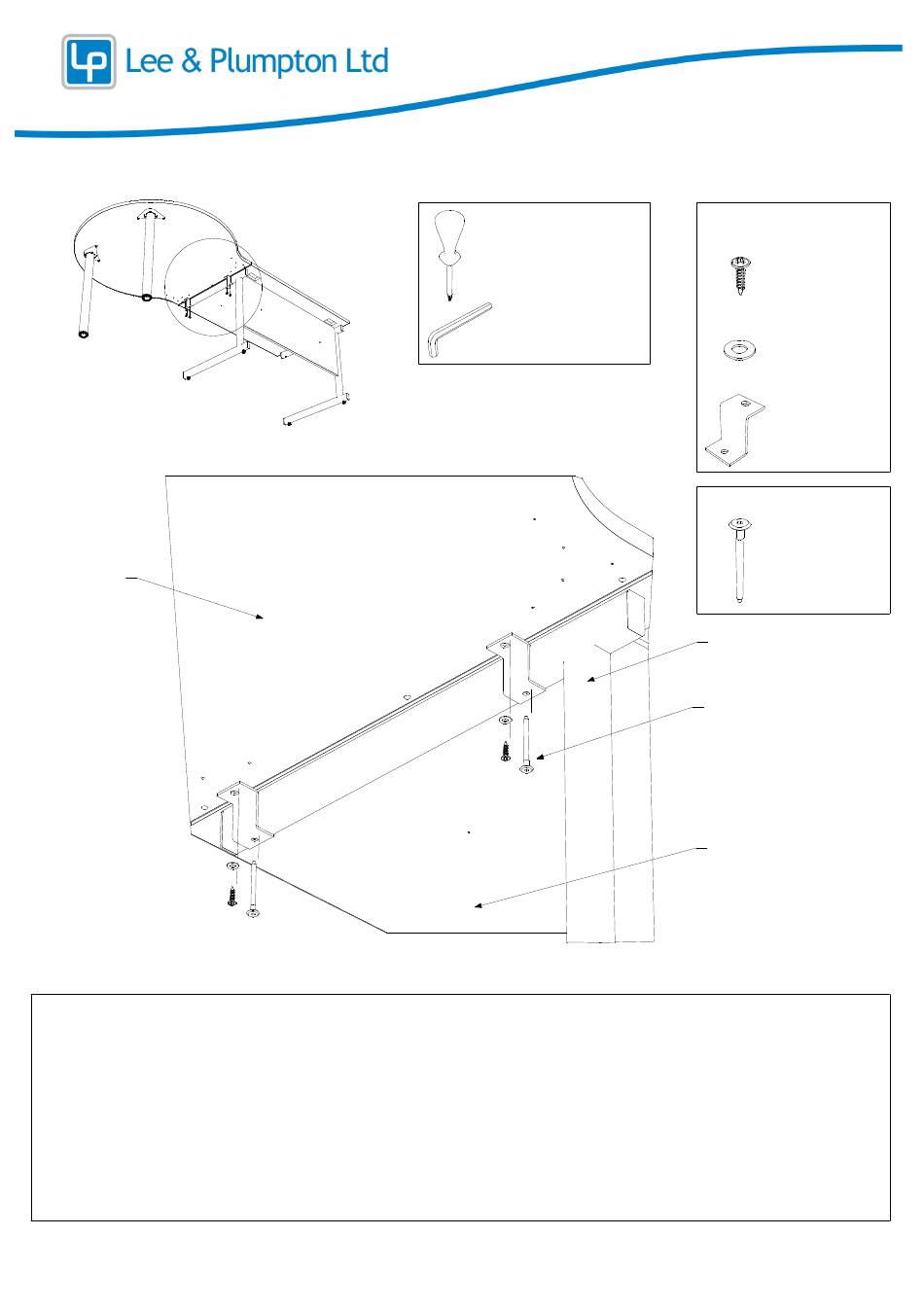

Assembly steps
1. Remove the 70mm chipfast bolts (parts D x2) that connect the top of the desk to the cantilever leg frame.
2. Use the 70mm chipfast bolts (parts D x2) to fix parts C (x2) to the desk (use the small hole on the brackets).
3. Stand the MP up, rest it on the brackets in the position you would like it fixed.
4. Fix the brackets (part C) to the MP using parts A (x2) and parts B (x2). (An electric screw driver may be required).
N.B. Larger meeting points (1600/1200) require 2 bracket packs (4 Brackets), fixed across 2 desks.
A
Feature A
D
Satellite MP Cant Bracket Pack
Tools required
Pozi head screw driver
Allen key (4mm)
C
B
D
A
Fittings supplied
Part A
Screw 4.5x25
Quantity=2
Part B
1/4 washer
Quantity=2
Part C
Z bracket
Quantity=2
Fitting reference
Part D
70mm chipfast bolt
Cantilever leg frame
70mm chipfast bolts
Desk
Assembly instruction leaflet no.40
