www.leeandplumpton.co.uk

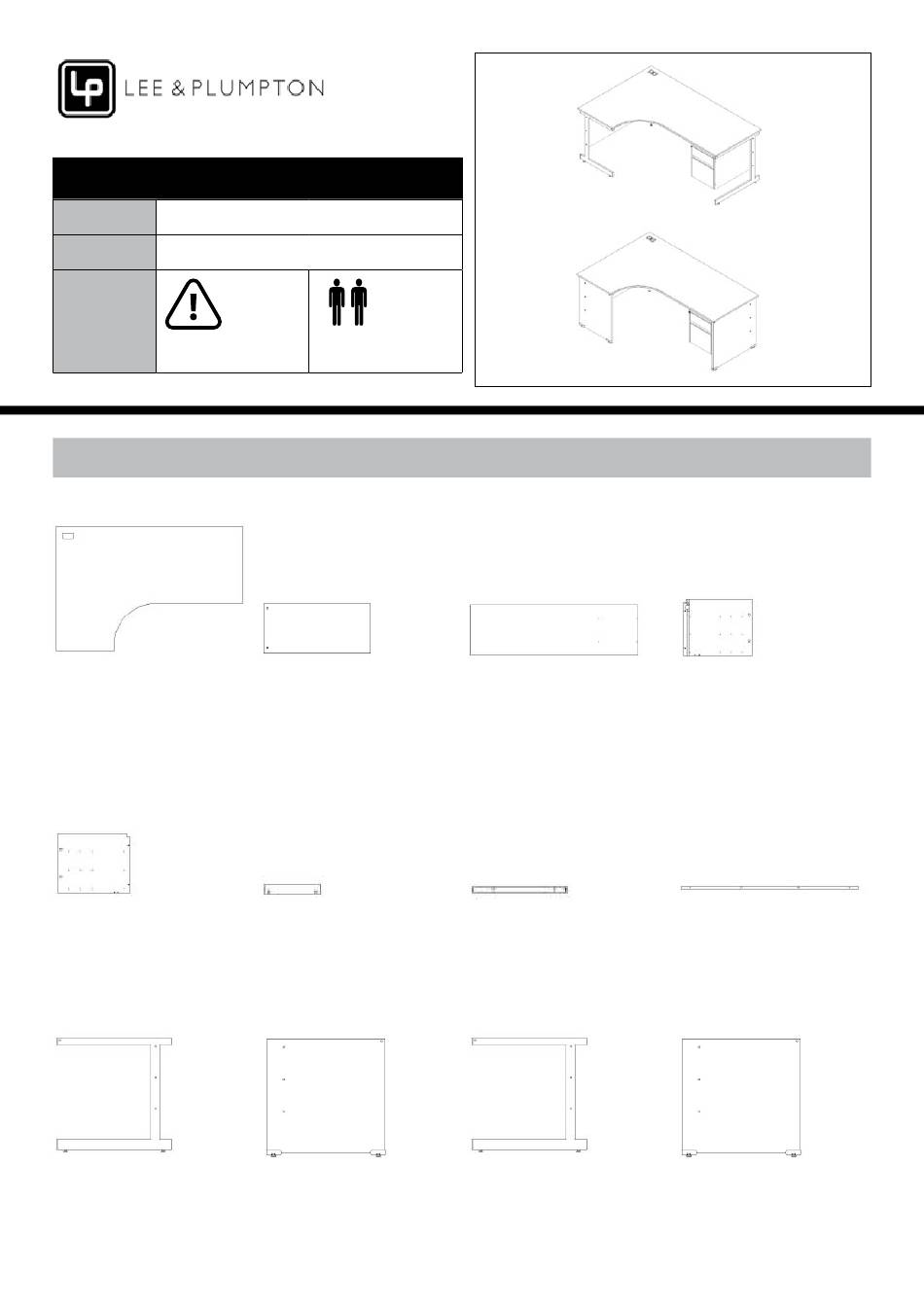

ASSEMBLY INSTRUCTIONS
RANGE
Galaxy Plus Crescent
REF:
1500 x 1200 LH/RH, 1800 x 1200 LH/RH
Read this leaflet before
assembly
COMPONENT PARTS
Item 1
1800/1500 Top Panel
Qty 1
Item 5
Side Panel RH
Qty 1
Item 9
Large Endframe - Cantilever
Leg Option
Qty 1
2 People
Required
Item 2
Small Modesty Panel
Qty 1
Item 6
MDF Base Panel
Qty 1
Item 10
Large Endframe - Slab End Leg
Option
Qty 1
Item 3
Large Modesty Panel 1800/1500
LH or RH
Qty 1
Item 7
Short Crossrail
Qty 1
Item 11
Small Endframe - Cantilever
Leg Option
Qty 1
No. 021 A/0697 Revision B 12/02/2020
Item 4
Side Panel LH
Qty 1
Item 8
Long Crossrail
Qty 1
Item 12
Small Endframe - Slab End
Leg Option
Qty 1
1
Advertisement
Related Manuals for Lee & Plumpton Galaxy Plus Crescent 1500x1200 LH
Summary of Contents for Lee & Plumpton Galaxy Plus Crescent 1500x1200 LH
- Page 1 www.leeandplumpton.co.uk ASSEMBLY INSTRUCTIONS RANGE Galaxy Plus Crescent REF: 1500 x 1200 LH/RH, 1800 x 1200 LH/RH 2 People Read this leaflet before Required assembly COMPONENT PARTS Item 1 Item 2 Item 3 Item 4 1800/1500 Top Panel Small Modesty Panel Large Modesty Panel 1800/1500 Side Panel LH Qty 1...
-
Page 2: Tools Required
Item 13 Item 14 Item 15 Item 16 Item 17 Item 18 F.0410 F.0403 F.0401.F.0402. A.0518. A.0763. F.0426 F.0417 1 1/2”x8g CSK POZI SPIGOT FOR F.0443.F.0489 F.0546 MINIFIX CASING MINIFIX BOLT BLUM CAM 25mm PLASTIC HOLE PLUG 5mm BEIGE CHIPFAST Qty 6 Qty 2 BLUM CAM... - Page 3 ASSEMBLY INSTRUCTIONS STEP 2 Lay the Side Panels (4 & 5) flat on a soft surface with the holes facing upwards. Ensure all holes are free of debris. On each Pedestal Side Panels, screw one Chipfast Bolt (18) into the 5mm hole in the front bottom corner, and knock a dowel (19) into the 8mm holes beside it.
- Page 4 ASSEMBLY INSTRUCTIONS STEP 5 Lay the Large Modesty Panel (3) flat on a soft surface with the holes facing upwards. Ensure all holes are free of debris. Screw Four Chipfast Bolts (18) into the holes in the Large Modesty Panel. Modesty Panel holes which will not be used for attaching a Pedestal can be covered...
- Page 5 ASSEMBLY INSTRUCTIONS STEP 9 Locate the Spigots (14) on the Small Modesty Panel (2) into the Cams (15) that are already located in the Top panel (1). Tighten up all Cams. STEP 10 Screw the Three 7mm x 60mm Chipfast Bolts (20) through the Square Corner Leg which is attached to the Small Modest Panel (2) into...
-
Page 6: Care And Maintenance
ASSEMBLY INSTRUCTIONS STEP 12 Align the holes in the end frame (9) with the holes in the Large Modesty Panel (3) and Cross Rail (8). Attach the Three 7mm x 60mm Chipfast Bolts (20) to the Large Modesty Panel (3) and the One M6 x 60mm bolt (21) to the Cross Rail (8).
