www.leeandplumpton.co.uk
RANGE
Signature Storage, Cupboard.
REF:
740mm High, 1000mm High, 1200mm High,
1600mm High, 1800mm High, 2000mm High
800mm and 1000mm Wide
Read this leaflet before
assembly
COMPONENT PARTS
Item 1
STO1_654
Back Panel
Qty 1
Item 10
Item 11
A.0718
A.0551
Bar Handle
CU Door Lock
Qty 2
Qty 1
Item 17
Item 18
F.0629
F.0630
Rapid Dowel (Blue)
Rastex Cam
Qty, (See Table 1)
Qty, (See Table 1)
Item 26
Item 28
F.0470
F.0442
34"x6g CSK Pozi BZP
5 8" x 4g CSK BZP
Qty 4
Qty 3
2 People
Required
Item 2
Item 3
STO1_538
STO1_536
LH Side Panel
RH Side Panel
Qty 1
Qty 1
Item 12
Item 13
A.0552
A.0558
Cupboard Door
Angled Striker Plate
Bolt
Qty 2
Qty 2
Item 19
Item 20
F.0431
F.0436, F.0446, F.0545,
Wood Dowel
F.0575, F.0576, F.0577
Qty 10
Cam Cover
Qty, (See Table 1)
Item 29
Item 30
F.0413
F.0564
5 8" x 6g Pan BZP
Shelf Support
Qty 4
Qty 4
Item 14
Item 15
A.0559
A.0592 A.0593 A.0594
Cupboard Lock Strike
Blum 100 Hinge
Plate
Qty, (See Table 1)
Qty 1
Item 21
Item 22
F.0404B
F.0404A
Kd Block Male (Natural)
Kd Block Female (Brown)
Qty 2
Qty2
Item 31
F.0492
16mm Euro Screw
Qty 4
A/1877 Revision A 29/01/2018
Item 4
STO1_592
Lintel
Qty 1
Item 5
STO1_643
Top Panel
Qty 1
Item 6
STO1_644
Bottom Panel
Qty 1
Item 16
D.0362
Lock Rosette
Qty 1
Item 25
F.0469
M4x28 Handle
Screw
Qty 4
1
Advertisement
Table of Contents
Related Manuals for Lee & Plumpton Signature Storage Series
Summary of Contents for Lee & Plumpton Signature Storage Series

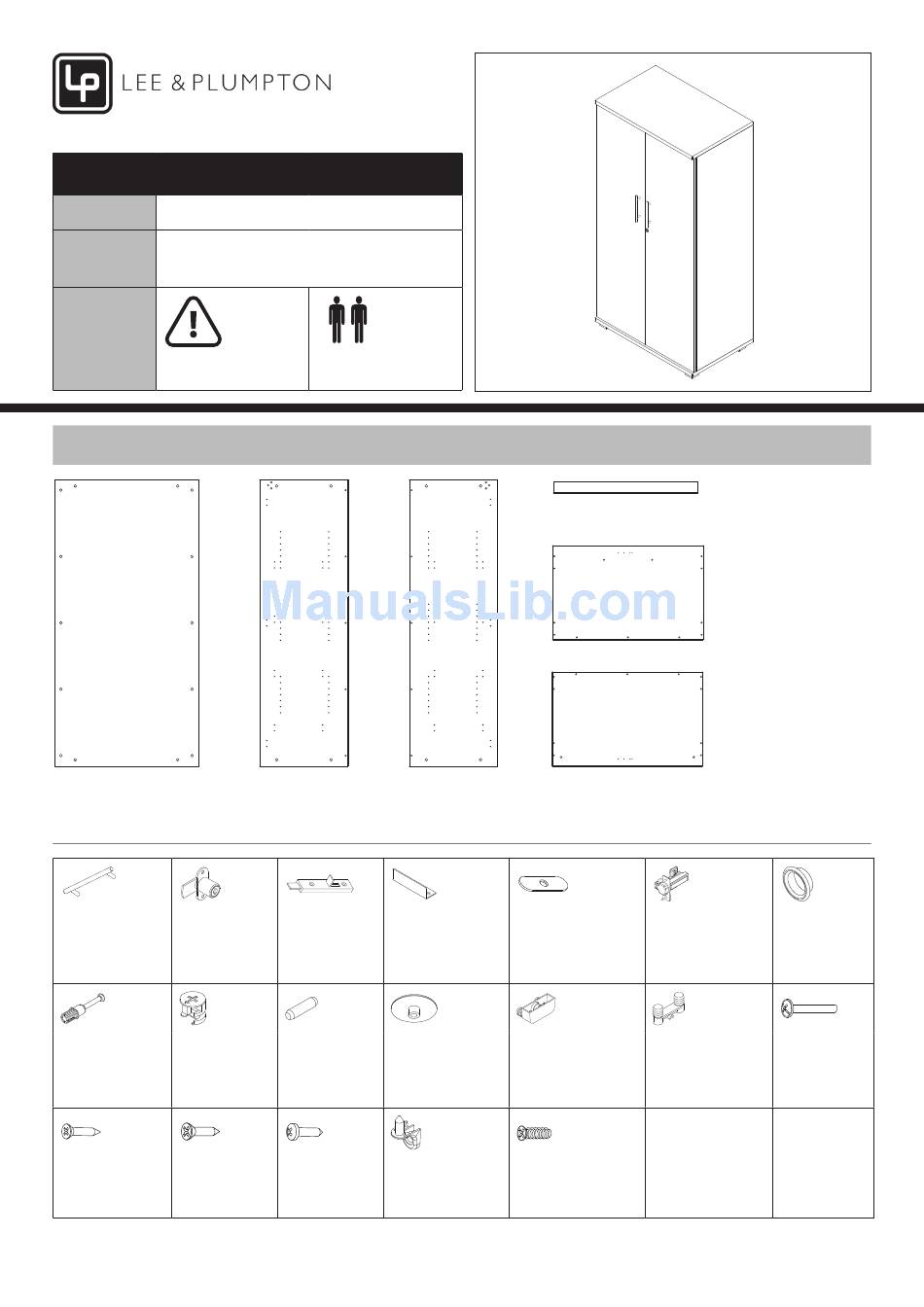

- Page 1 www.leeandplumpton.co.uk ASSEMBLY INSTRUCTIONS RANGE Signature Storage, Cupboard. REF: 740mm High, 1000mm High, 1200mm High, 1600mm High, 1800mm High, 2000mm High 800mm and 1000mm Wide Read this leaflet before 2 People assembly Required COMPONENT PARTS Item 4 STO1_592 Lintel Qty 1 Item 5 STO1_643 Top Panel...
-
