Lee & Plumpton Satellite Ped2 Assembly Instructions

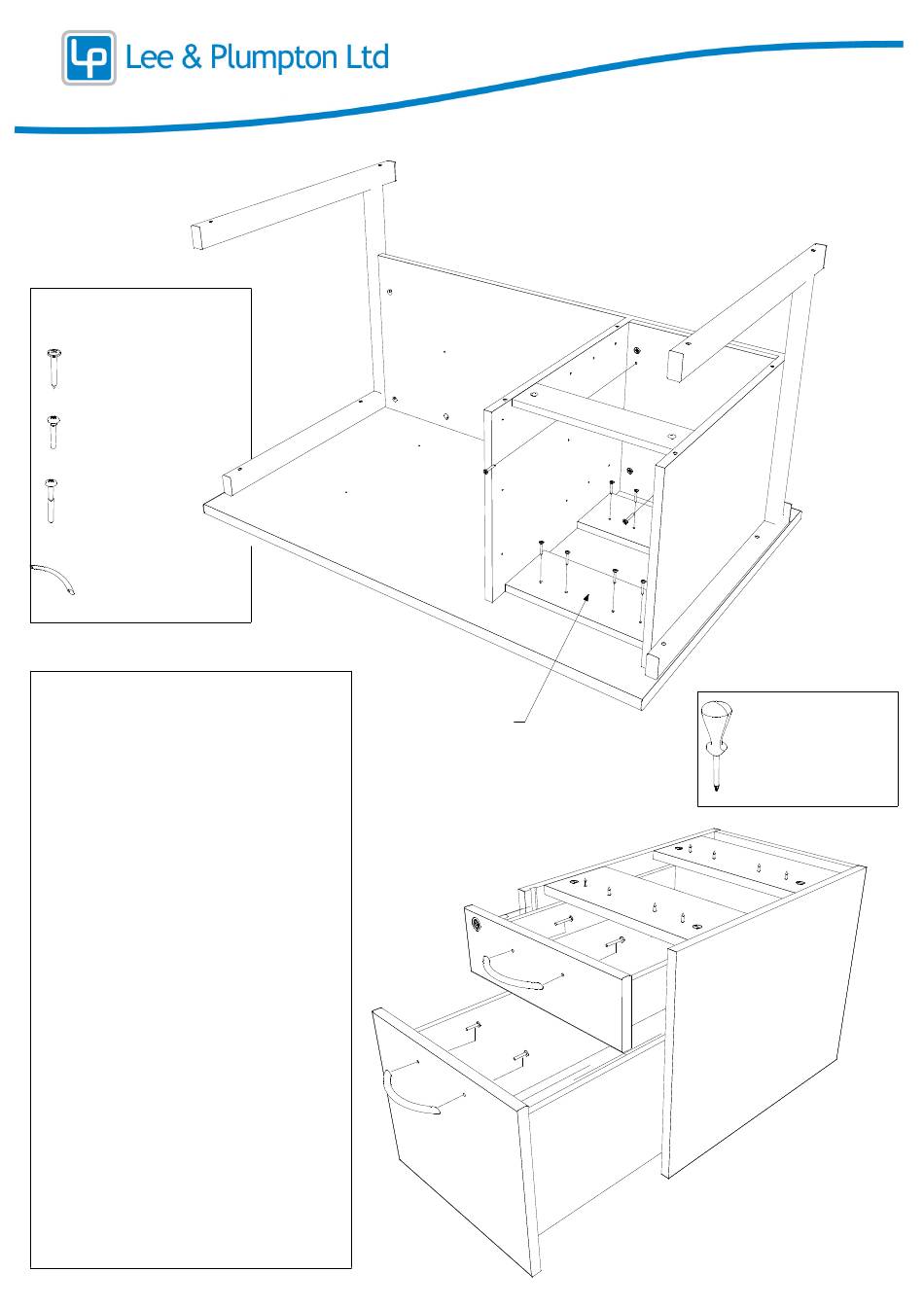

Diagram 1
Fittings Supplied
Part A
Screws 1 1/4" x 8g
Quantity required=10
Part B
Handle screws 4x23
Quantity=2 (2d) 4 (3d)
Part C
Handle screws 4x35
Quantity=2
(Top drawer only)
Part D
Bow handle
Quantity=1 per drawer
Assembly Steps
Diagram 1
1. Place desk upside down on a soft
surface.
2. Remove all drawers from the pedestal.
3. Place pedestal on desk as shown.
Ensure it is pushed firmly against
the modesty and at least 7mm from
end frame or slab.
4. Screw part A (x2) through the back
of the pedestal into the modesty
on the desk. (Electric screw driver
may be required).
5. Screw part A (x8) through the plinths
on the pedestal into the the desk top.
(Electric screw driver may be required).
Diagram 2
6. Attach the handles to the drawer
fronts as shown. Ensure parts C
(x2) are used on the top drawer,
and parts B on the lower drawers.
7. Add the drawers to pedestal when
it is the correct way up.
A
A
Plinth
Diagram 2
C
D
B
B
D
Satellite Ped2/3
A
A
Tools Required
Pozi head screw driver
C
Assembly instruction leaflet no. 39
