Lee & Plumpton Libra Desk Assembly Instructions

Lee & Plumpton Libra Desk Assembly Instructions

1200, 1400, 1600mm wide

Advertisement

www.leeandplumpton.co.uk
RANGE
Libra Desk.
REF:
1200, 1400, 1600mm Wide.
Read this leaflet before
assembly

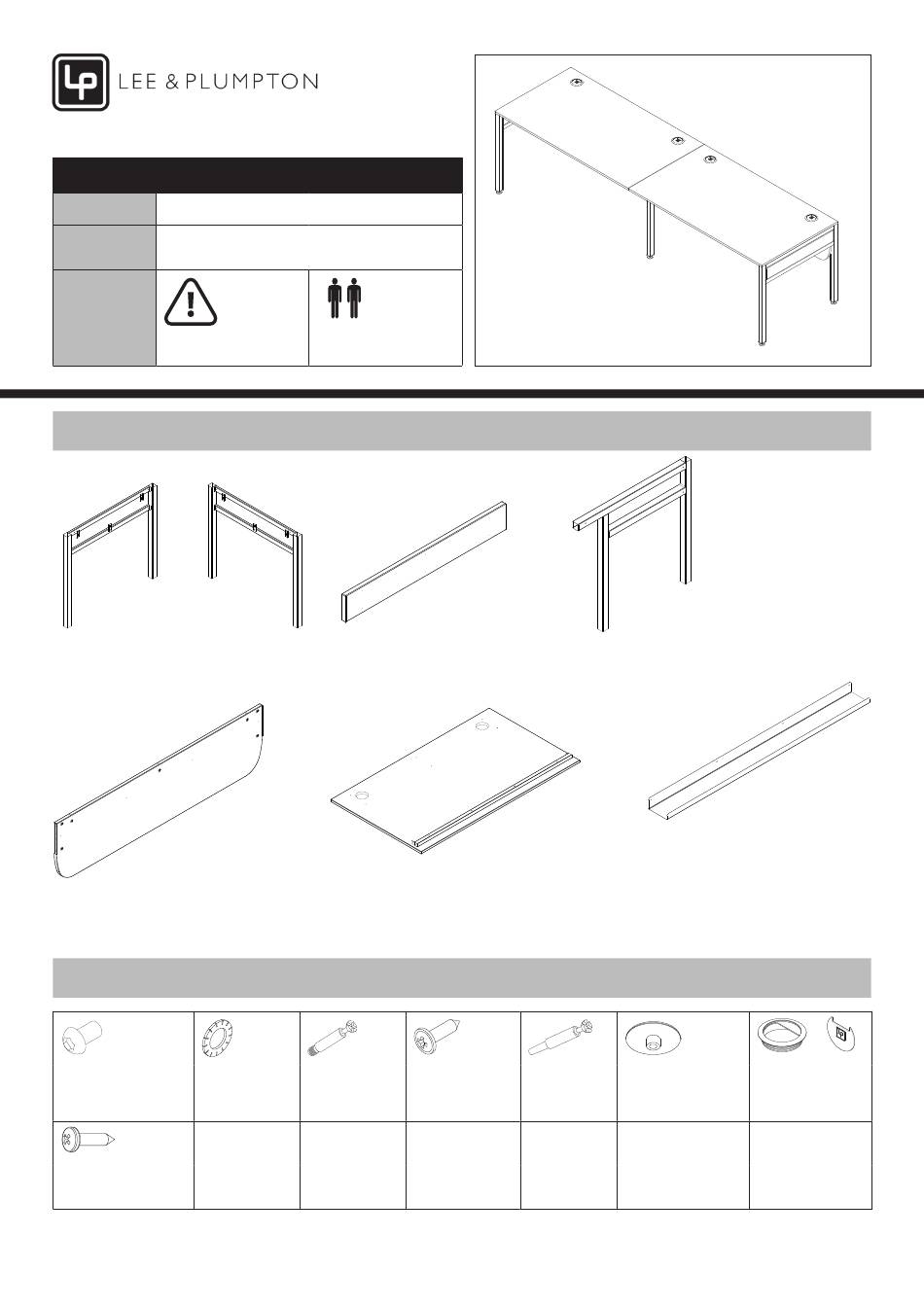

COMPONENT PARTS

Item 1
Item 2
M/0834 M/0835
M/0832 M/0833
LH End Goalpost
RH End Goalpost
Item 9
Modesty Panel

FIXINGS

Item 4
Item 5
F/0561
F/0655
M6x10mm Socket Head
M6 Lock Washer
Screw
Item 15
F/0414
5/8" Pan Posi Bzp Screw
2 People
Required
Item 3
NP10_0050
End Goalpost Infill
Item 10
Top Panel, Rail Assembly
Item 6
Item 7
F/0433
F/0419
Minifix Bolt M6
5/8" x 8G Posi
Flange Black Screw
Item 8
M/0830 M/0831
Intermediate Goalpost
Item 14
Cable Tray (Optional Item)
Item 11
Item 12
F0532
F.0436, F.0446, F.0545
Minifix Bolt
F.0575, F.0576, F.0577
Chipfast
Cam Cover
No. 120 A/2129 Revision A 15/08/2018
Item 13
A/1165
Cable Port
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Libra Desk and is the answer not in the manual?

Questions and answers

Summary of Contents for Lee & Plumpton Libra Desk

  • Page 1 ASSEMBLY INSTRUCTIONS RANGE Libra Desk. REF: 1200, 1400, 1600mm Wide. 2 People Read this leaflet before Required assembly COMPONENT PARTS Item 1 Item 2 Item 3 Item 8 M/0834 M/0835 M/0832 M/0833 NP10_0050 M/0830 M/0831 LH End Goalpost RH End Goalpost...
  • Page 2 FIXINGS QUANTITIES BY PACK Packs Item 4 Item 5 Item 6 Item 7 Item 11 Item 12 Item 13 Item 15 Desk End Goalposts Double Pack Bench Intermediate Goalpost Single Pack Top, Modesty Panel & Rail Pack (Desk) Cable Trays TOOLS REQUIRED BEFORE YOU BEGIN...
  • Page 3 ASSEMBLY INSTRUCTIONS STEP 3 Ensure that the M6x10mm Socket Head Screw (4) and the M6 Lock Washer (5) are unscrewed as far as possible whilst still being attached to the Goalposts. This is to allow space for the ends of the Rails on the Top Panel & Rails Assembly (10) to engage with the Goalposts.
  • Page 4 ASSEMBLY INSTRUCTIONS STEP 6 Once the first two Goalposts (1,2) have been connected by Modesty Panels (9) they are freestanding. Extra sections can now be added onto the desk in the same way as described in Steps 4 and 5. STEP 7 If required, fit the Cable Tray (14) to the Modesty Panel (9),...
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 9 Lower the Top Panel & Rail Assemblies (10) onto the assembled frame. Lock the Cams in the Modesty Panel (9). Tighten up the M6x10mm Socket Head Screws (4) at the front of each Goalpost to lock the Rails into position.
