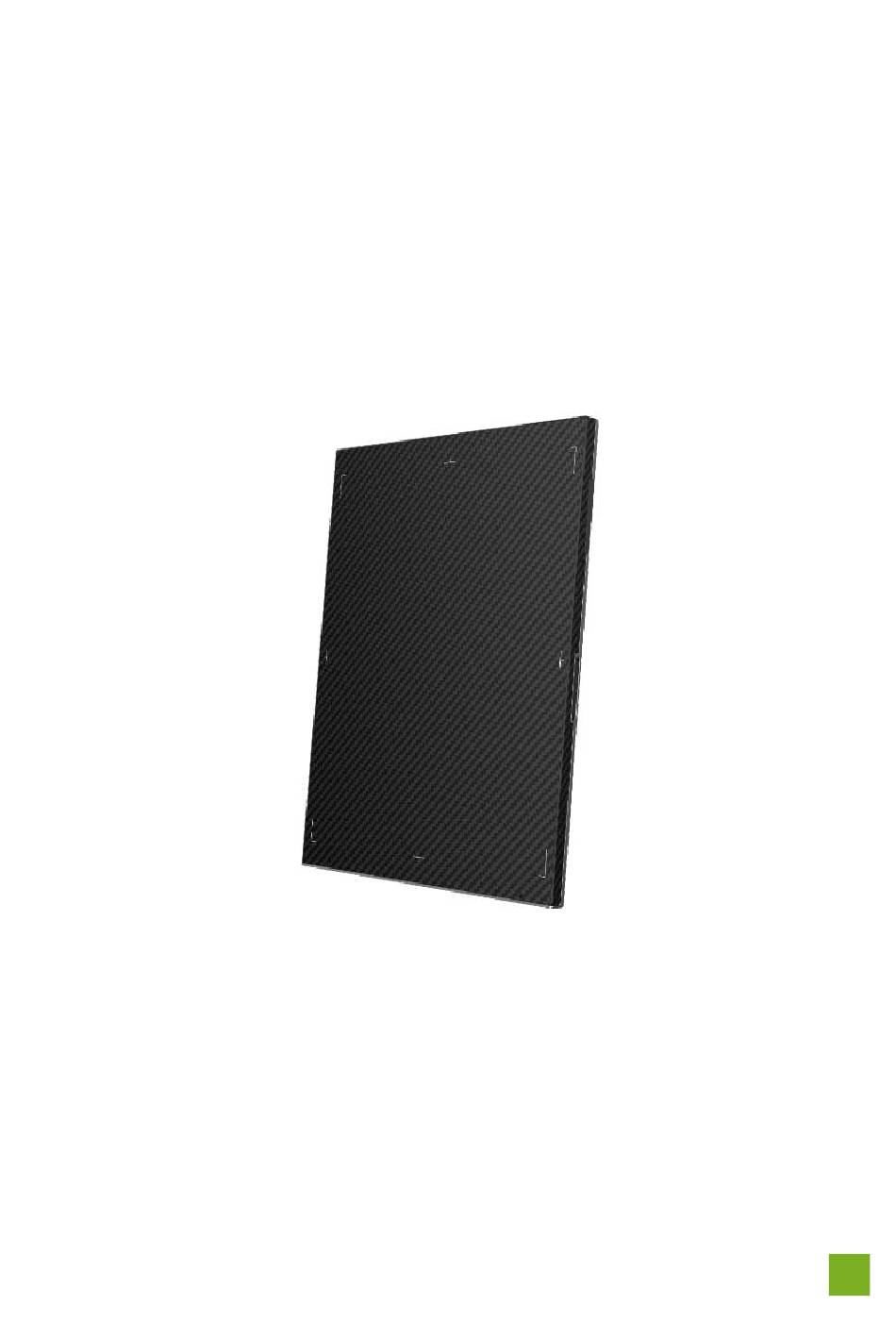

Wireless Digital Flat Panel Detector
NDT1013LA
User Manual
Version :A0
Doc ID :167-201-02
Release Date::2021.01.13
Before operating, please read this user manual and pay attention to all safety precautions.
Please ensure that this user manual is properly maintained so that it can be accessed at any time
(reserve).
E
Please use it correctly based on full understanding of the content.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NDT1013LA and is the answer not in the manual?

Questions and answers

Summary of Contents for iRay Technology NDT1013LA

  • Page 1 Wireless Digital Flat Panel Detector NDT1013LA User Manual Version :A0 Doc ID :167-201-02 Release Date::2021.01.13 Before operating, please read this user manual and pay attention to all safety precautions. Please ensure that this user manual is properly maintained so that it can be accessed at any time (reserve).
  • Page 3 To Customers Congratulations on your purchase of the Flat Panel Detector (hereinafter referred to as NDT1013LA) which is manufactured by iRay Technology Company Ltd. (Hereinafter referred to as iRay). Please take time to read through this user guide in order to utilize the product effectively. We hope you enjoy the experience with iRay NDT1013LA.
  • Page 4 Information regarding specification, compositions, and appearance of this product is subject to change without prior notice. User Manual of NDT1013LA...
  • Page 5 No part of this publication may be reproduced in any form or by any means without the written permission of iRay. The information contained herein is designed only for use with iRay NDT1013LA. Trademarks The iRay name and iRay logo are registered trademarks of iRay Technology Co. Ltd. User Manual of NDT1013LA...
  • Page 6 Identify conditions under which improper use of the product may cause property damage. Indicate a prohibited operation. Indicate an action that must be performed Indicate important operations and restrictions. Indicate operations for reference and complementary information. User Manual of NDT1013LA...
  • Page 7 To Customers Labels and markings on the equipment The contents of the label and mark on iRay NDT1013LA product are indicated as below: Symbol Description Caution: please refer to the instructions in the user manual. Indicates that the equipment has passed CE testing and the CE Notified Body number follows it.
  • Page 8 Keep the equipment up right. Do not roll the transportation package. Stacking limit number. Switch to this position means power on for part of the equipment Switch to this position means power off for part of the equipment User Manual of NDT1013LA...
  • Page 9: Table Of Contents

    4.2. Environment setup................... 32 4.3. Wireless Connection................32 4.4. Software UI ....................37 4.5. List of the HAZARDOUS SITUATIONS resulting from a failure of the IT- NETWORK ......................55 OPERATION INSTRUCTIONS FOR IMAGE ACQUISITION ......56 User Manual of NDT1013LA...
  • Page 10 Wireless Digital Flat Panel Detector NDT1013LA 5.1. Steps for acquiring image ................ 56 5.2. Software Mode ..................56 5.3. AED Mode ....................58 5.4. After use ....................59 5.5. Correction and Calibration Template Generation ........59 5.6. Local Image Check .................. 64 5.7.
  • Page 11: General Description

    AC outlet. Doing so may result in fire or electric shock. Do not turn ON the system power when condensation has formed on the equipment. Doing so may result in fire or electric shock. User Manual of NDT1013LA...
  • Page 12 Never disassemble or modify the equipment. No Handling modification of this equipment is allowed. Parts of the NDT1013LA that are not serviced or maintained while in use with the patient. Doing so may result in fire or electric shock. Also, since the...
  • Page 13 For safety reasons, be sure to turn OFF the power to each piece of equipment when performing inspections indicated in this manual. Otherwise, electric shocks may occur. CAUTION User Manual of NDT1013LA...
  • Page 14 Wireless Digital Flat Panel Detector NDT1013LA Do not install the equipment in any of the locations listed Installation and environment below. Doing so may result in failure, malfunction, of use equipment falling, fire or injury. Close to facilities where water is used...
  • Page 15 Keep the same load (same pressure) on the detector when acquiring the image. Or the image will be incorrect. CAUTION User Manual of NDT1013LA...
  • Page 16: Notes For Use

    Wireless Digital Flat Panel Detector NDT1013LA Do not operate close to fire, do not use in high temperatures Do not invert positive and negative poles Do not contact with metal in case of a short circuit Do not insert sharp objects into the battery...
  • Page 17 Wipe it with a cloth slightly damped with a neutral detergent. Do not use solvents such as alcohol, benzene and acid. Doing so may damage the surface of the product. ⚫ It’s recommended to use a waterproof non-woven cover as the isolated layer between product and the blooding patient. User Manual of NDT1013LA...
  • Page 18: General Description

    3328×2560 with 100 um pixel pitch. The scintillator of NDT1013LA is CsI(Caesium Iodide) which is direct deposit. Since NDT1013LA supports multiple trigger modes, which designed for field inspection application, including Industry Non-Destructive Testing and Security Inspection..
  • Page 19: Characteristics

    According to the NDT1013LA intended use and the result of risk management, identifying and describing the essential performance as the following: To get image of dark field, the NDT1013LA shall be not influenced to the imaging acquisition. To keep the data transmission function, the NDT1013LA shall be not influenced to the data and signal transmission 2.5.
  • Page 20: The Relative Position Between Newborns And Detector

    Wireless Digital Flat Panel Detector NDT1013LA 2.7. The relative position between newborns and detector Because of the crosstalk effect of Amorphous silicon flat-panel detector, Pay attention to the relative position of newborns and detector, Otherwise, the image is prone to abnormal light lines.
  • Page 21: Components Dsecription

    2. General Description 2.10. Components Dsecription 2.10.1. Detector 2.10.2. Indicator External Signals Input and Control Panel Control Panel Item Description Status indicator Detector status Link indicator Detector link status Power Indicator Detector Power indicator Power button Power button User Manual of NDT1013LA...
  • Page 22 Wireless Digital Flat Panel Detector NDT1013LA DC Input Interface 24V DC input User Manual of NDT1013LA...
  • Page 23 2. General Description 2.10.3. Battery Pack Item Description Battery Label Battery Interface 7-pin battery connector Guide Block Touch Display Show battery level after touching User Manual of NDT1013LA...
  • Page 24: Product Specification

    Wireless Digital Flat Panel Detector NDT1013LA 2.10.4. Battery Charger Item Name Description Battery Interface A 8 Pin Battery connector Battery Interface B 5 Pin Battery connector Battery Interface C 5 Pin Battery connector Indicator The indicator definition is as follow...
  • Page 25 2. General Description Item Specification Model NDT1013LA Image Sensor a-Si (Amorphous Silicon) TFT Scintillator Pixel Size 100um User Manual of NDT1013LA...
  • Page 26 Wireless Digital Flat Panel Detector NDT1013LA Fill Factor Effective Array 3152*2502 Effective Area (H x V) 315.2 mm*250.6mm Spatial Resolution 5 lp/mm Image Transfer WIFI Cycle Time Power Consumption 19W Max Weight 2kg(with battery) Image Transfer Wireless : IEEE802.11 a/b/g/n/ac Wireless Frequency Range 2.412~2.472GHz, 5.18~5.22GHz;...
  • Page 27 Discharged End Voltage Charging Method CC-CV Charge 0℃-+60℃, Discharge-10℃-+60℃ Operating Temperature 1 month-20℃-+50℃ 3 month -20℃-+45℃ Storage Temperature 6 month -20℃-+35℃ Relative Humidity 5%~95% Dimension (L × W × H) 210 x 105 x 8 mm Weight 0.285kg User Manual of NDT1013LA...
  • Page 28 Wireless Digital Flat Panel Detector NDT1013LA 2.11.3. Battery Charger Item Specifications Model Charger-Combo Simultaneous Charging 1 battery pack ≤ 3 hours Full charging time Rated power supply 90V~264V(AC) Dimension (L × W × H) 240 x 284 x 38 mm Weight 0.55 kg...
  • Page 29 A indicator on Battery charging abnormal B and C alternately blinking Two or more battery charging at the same time is prohibited, if inserted at the same time, the charger will automatically stop working. User Manual of NDT1013LA...
  • Page 30: Basic Operation

    Wireless Digital Flat Panel Detector NDT1013LA 3. Basic Operation 3.1. Preparation 3.1.1. Attach Battery Pack he product can be powered by both a battery pack and DC power. Once the battery pack is inserted or DC power is connected, detectors will be turned on immediately. If neither battery nor DC power is connected, panel will power off.
  • Page 31: Routine Operation

    4 seconds to turn on the detector if the battery is inserted and the capacity is not less than 7%, or DC power is connected. After booting up, users can check the indicator of the detector. Power indicator: User Manual of NDT1013LA...
  • Page 32: Battery Charger Installation

    Wireless Digital Flat Panel Detector NDT1013LA Status Power Indicator Lighting Status Battery Capacity DC Input Description Detector is off Green ON Detector is on ≥7% & <15% Orange Blinking Detector is on ≥15% & <95% Green Blinking Detector is on Green&Orange...
  • Page 33 3.Basic Operation ⚫ Unload Battery from battery charger. ⚫ Insert battery into battery charger. ⚫ Note the interface position as figure. ⚫ Press the battery to the bottom of battery compartment. User Manual of NDT1013LA...
  • Page 34: Software Setup

    Wireless Digital Flat Panel Detector NDT1013LA 4. Software Setup 4.1. System requirement iDetector is developed and deployed on Windows Operation System, it can be run on Windows XP/Windows 7/Windows 8/Windows 10, OS should install latest service pack. And requires computer memory 4 GB minimum. The firewall should be shut down to avoid commuication issue.
  • Page 35 “Wifi”tab of “Detector” pag to get the current wifi configuration. Click “Read Network Config” to get default setting. Change SSID and password setting. make sure SSID is different from other already exist; Change channels and frequency setting User Manual of NDT1013LA...
  • Page 36 Wireless Digital Flat Panel Detector NDT1013LA Click ”Channel” and choose a clean frequency and channel Click ”Write Network Config” Waiting FPD status be “Ready” 4.3.2. Client Mode Add: add the information of the access point, such as SSID and password.
  • Page 37 4.Software Setup Select: Select the Access Point that needs to be connected to. 4.3.3. Configuration of external wireless card Open local wireless signal list Select SSID which belongs to detectors; Input password and log into system User Manual of NDT1013LA...
  • Page 38 Wireless Digital Flat Panel Detector NDT1013LA Open wireless card configuration open IPV4 setting IP setting as follows IP address: 192.168.8.188 IP address: Subnet mask: 255.255.255.0 192.168.8.188 Subnet mask: 255.255.255.0 User Manual of NDT1013LA...
  • Page 39: Software Ui

    Acquire image, select correction mode, save image and process image config.ini setting, log level setting Detector Configurate parameters for detector. Calibrate Generate calibration files and manage the calibration files Local File Open and view local images. 4.4.1. HomePage User Manual of NDT1013LA...
  • Page 40 Wireless Digital Flat Panel Detector NDT1013LA The main function in this page is to connect detector. Function description Item Name Display the name of detector Display the SN of detector Product Type Display the type of detector State Display the connection state (Bind,Unknown, Ready etc.)
  • Page 41 Status bar is also can be seen in other pages, and they are all the same. Item Description SN number of current connected detectors State Detectors state , eg busy, ready Task the current task of detector Message feedback information of command,eg succeed,failed Functions in this Page. User Manual of NDT1013LA...
  • Page 42 Wireless Digital Flat Panel Detector NDT1013LA Correction Menu Description Do hardware PostOffset correction for image if checked HWPostOffset Offset Gain HWGain Do hardware Gain correction for image if selected Defect HWDefect Do hardware defect correction for image if checked Acqurie Button...
  • Page 43 Lateral-drag the right mouse button to adjust the window width, and vertical-drag the right mouse button to adjust the window level; F3 Key: Quickly locate the image window width and window level. F4 Key: Adjust window width and window level automatically. User Manual of NDT1013LA...
  • Page 44 Wireless Digital Flat Panel Detector NDT1013LA 4.4.3. SDK Pgae SDK page is used to set parameters in config.ini and log level. Different log level will show different details. It is recommended to set the log level as Debug 4.4.4. Detector Page In this page, there are Parameters, Sensor and Images tab.
  • Page 45 Version number of ARM Kernel Kernel Version Tirgger mode of the detector Trigger Mode Exposure window for AED mode Set Delay Time(ms) which use a fixed window Exposure window for getting image Acquire Delay Time(ms) which use a dynamic window User Manual of NDT1013LA...
  • Page 46 Wireless Digital Flat Panel Detector NDT1013LA Max exposure window for command Exp Window Time(ms) trigger which use a dynamic window Detector MAC Src MAC Button function description: Function Button Description Reset Detector Reset Detector Read Read parameters Write Write parameters...
  • Page 47 Temperature Read detector humidity Humidity Read the capacity of the battery Battery ⚫ Wifi User can config the wireless connect parameters on this tab. ⚫ Images You can Query and upload Images from detector to Workstation. User Manual of NDT1013LA...
  • Page 48 Wireless Digital Flat Panel Detector NDT1013LA 4.4.5. Calibrate Page Offset, Gain, Defect calibrate files can be generated and managed in this page. Click “Start Generate Templates” to enter generating templates page. User Manual of NDT1013LA...
  • Page 49 Subset settings control. Click this button to upload selected template from detector into specified calibration directory. Upload Lag into SDK current directory Upload Lag Select one item in list. Click this button to activate selected Active template for hardware correction. User Manual of NDT1013LA...
  • Page 50 Wireless Digital Flat Panel Detector NDT1013LA Force detector update Offset template UpdateHWPreOffset Get the current state of template for hardware correction, ReadStatus enable/disable ⚫ Generate Gain Template File If the relative position between tube and detector changed or KV value changed, it suggest to create gain template file.
  • Page 51 “Cancel” button. If “Download to FPD after generation” is checked, then the download UI will appear after finishing generating. User can refer to the part of “Generate Defect Template File" User Manual of NDT1013LA...
  • Page 52 Wireless Digital Flat Panel Detector NDT1013LA When the generating process is finished, the UI will give the message of successful. ⚫ Generate Defect Template File The process of generate defect map is quite similar with the one of gain map.
  • Page 53 The correction map also can be managed at anytime on the page of “Mode&Files”. Choose the item of “Default” in the Subset settings part and click “Download to FPD” to finish downloading the maps into the detector. User Manual of NDT1013LA...
  • Page 54 Wireless Digital Flat Panel Detector NDT1013LA ⚫ Upload the correction files The correction maps can be uploaded to the workstation too. Choose the gain or defect in the “Fpd template files”and the “Default” directory in the “Subset settings”, then click the “Upload to workdir”.
  • Page 55 Active area : 4267*4267 What needs to be notice is only the active area pixels will be displayed when use load file funtion, the value of dummy pixels and empty channels will be filled by 65535. User Manual of NDT1013LA...
  • Page 56 Wireless Digital Flat Panel Detector NDT1013LA This page provides ROI tool, which can see the AVG, SNR, and other properties of the choosen image area by right mouse button. This page provides WW/WL tool as Acquire page . Click this button to auto adjust WW/WL based on selected area by right button of mouse.
  • Page 57: List Of The Hazardous Situations Resulting From A Failure Of The It

    The operating system is not compatibility; Change or update the software failed; The compatibility of the interface; The data transfer protocol error; The inconsistent of interface or format leads to data distortion; The data output failed; User Manual of NDT1013LA...
  • Page 58: Operation Instructions For Image Acquisition

    Wireless Digital Flat Panel Detector NDT1013LA 5. Operation Instructions for Image Acquisition NDT1013LA provides SDK for users to integrate detector into their DR system. Additionally, it also provides an application for demonstration, i.e. IDetector. User can use IDetector to control detector without DR system.
  • Page 59 The preview image will be always sent, which is 4x4 averaging, the raw X-Ray image will be sent if the HW correction is disabled with the raw offset image follows, otherwise, the X-Ray image will not be sent and only the corrected image will be transferred. 5.2.3. Work Flow(Prep+Acq) User Manual of NDT1013LA...
  • Page 60: Aed Mode

    Wireless Digital Flat Panel Detector NDT1013LA RAW X-Ray image RAW offset(Or corrected) Cmd_Prep Ack_Prohibit Ack_Enable X-Ray RAW Preview Cmd_SingleAcq (If HW-offset is disabled) image XWIN2 X-Ray XWIN2 Offset IDLE Prepare (dynamic) imaging (dynamic) imaging Send Cmd“Prep” on UI “Acquire” page.
  • Page 61: After Use

    5.4. After use 1. Disconnect the software 2. Power off 3. Keep it clean 4. Store under specified conditions 5.5. Correction and Calibration Template Generation User Manual of NDT1013LA...
  • Page 62 Wireless Digital Flat Panel Detector NDT1013LA The correction and calibration should be performed after installation and it is recommended to perform the new correction and calibration after any major change on the system settings and hardware configuration. On the other hand, it is also recommended to do the correction and calibration in each 6 months.
  • Page 63 And the click on Acquire is not necessary for inner or Freesync. Create gain template need several images. You can click Generate button to generate Gain template once one image was captured. But it may lead to imperfect template quanlity. User Manual of NDT1013LA...
  • Page 64 Wireless Digital Flat Panel Detector NDT1013LA Download template file dialog will pop up if "Download to FPD after generation" option was checked. Click Download button to download the template into the detector. Select Mode&Files tab. Click Read Status button to check whether just downloaded gain template is enable.
  • Page 65 , click PREP button. Re- acquire images after adjust generator parameters. Note: In different trigger mode, the operation maybe have little difference. Please follow the UI tips. You can click Generate button to generate Gain template after acquired required images. User Manual of NDT1013LA...
  • Page 66: Local Image Check

    Wireless Digital Flat Panel Detector NDT1013LA Download template file dialog will pop up if "Download to FPD after generation" option was checked. Click Download button to download the template into the detector. Select Mode&Files tab. Click Read Status button to check whether just downloaded gain template is enable.
  • Page 67 Select correct size to open image files. If the file is not correct user will get an error message. NDT1013LA image size: 4267*4267 This page provides ROI tool, which can see the AVG, SNR, and other properties of the choosen image area by right mouse button.
  • Page 68: Firmware Upgrade

    Wireless Digital Flat Panel Detector NDT1013LA 5.7. Firmware Upgrade Panel supports upgrading firmware with IDetector, also allows the use of the Web way to upgrade the firmware, if a user needs to upgrade the firmware, please complete the following steps.
  • Page 69 1. There is a progress bar for indication. Make sure battery is inserted and battery capacity is over 2. Please make sure that iDetector shows “Ready”. It can also be checked by click “Config” button, there is firmware version. User Manual of NDT1013LA...
  • Page 70: Regulatory Information

    The equipment can be used in close proximity to the human body without any restrictions.  Note: the grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user’s authority to operate the equipment. User Manual of NDT1013LA...
  • Page 71: Trouble Shooting

    7.Trouble Shooting 7. Trouble Shooting Please refer to service manual. If the problem persists, turn off the panel and contact iRay service department ( ). We would provide the best service service@iraygroup.com User Manual of NDT1013LA...
  • Page 72: Service Information

    Flat Panel Detector NDT1013LA 8. Service Information 8.1. Service Office Information 8.2. Product Lifetime The estimated product lifetime is up to 5 years under appropriate regular inspection and maintenance. 8.3. Regular Inspection and Maintenance In order to ensure the safety of patients and operator, to maintain the performance and reliability of the panel, be sure to perform regular inspection at least once a year.
  • Page 73: Replacement Parts Support

    8.Service Information 8.5. Replacement Parts Support Main parts (parts required to maintain the function of the product) of this product will be stocked for 5 years after discontinuance of production for repairing. User Manual of NDT1013LA...
  • Page 74: Appendix A Information Of Manufactures

    Flat Panel Detector NDT1013LA Appendix A Information of Manufactures COMPANY: iRay Technology Taicang Ltd. ADDRESS: No.33 Xinggang Road, Taicang Port Economic and Technological Development Zone, Jiangsu, China ZIP CODE: 215434 TELEPHONE: +86 0512-53690872 FAX: +86 0512-53690872 HOMEPAGE: WWW.IRAYGROUP.COM User Manual of NDT1013LA...
  • Page 75: Appendix B Information Of Europe Representative

    APPENDIX Appendix B Information of Europe Representative COMPANY: iRay Europe GmbH ADDRESS: IN DEN DORFWIESEN 14, 71720 OBERSTENFELD GERMANY ZIP CODE: TELEPHONE: +49-7062-977 88 00 FAX: +49-7062-976 0571 HOMEPAGE: WWW.IRAYEUROPE.COM User Manual of NDT1013LA...
