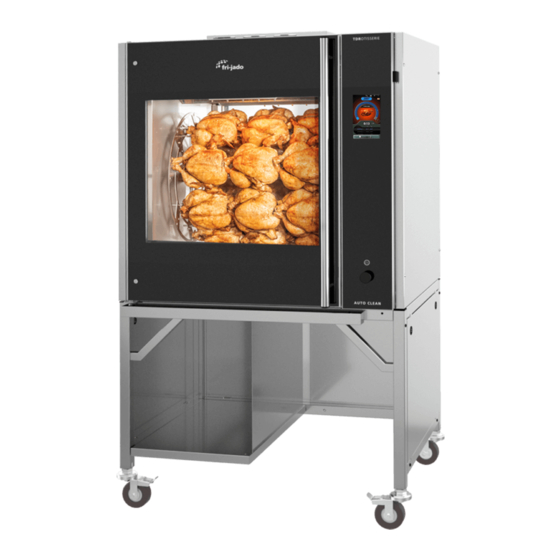

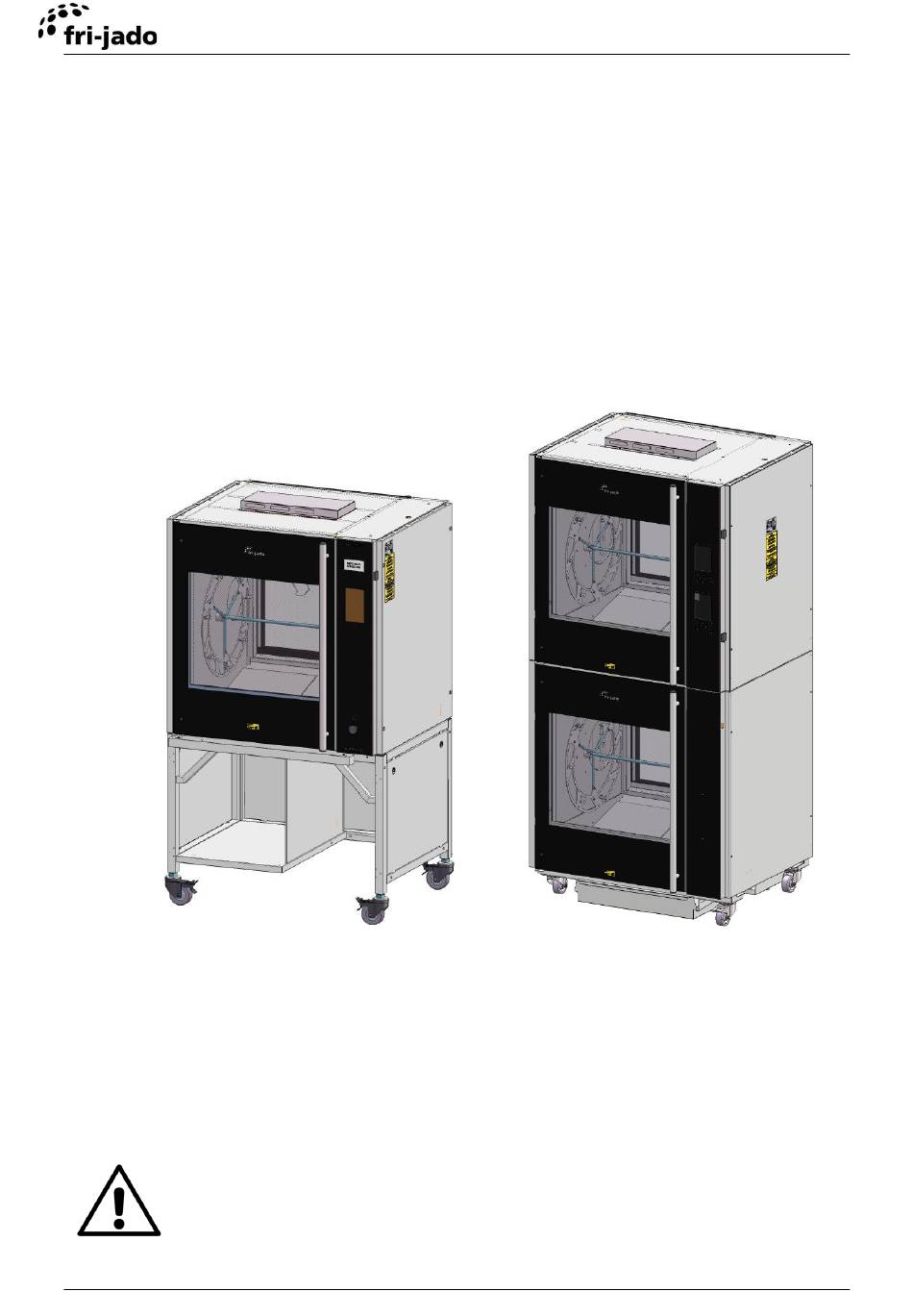

- Page 1 TDR s auto-clean USER MANUAL – USA version TDR 5 s AC TDR 7 s AC / TDR 7+7 s AC TDR 8 s AC / TDR 8+8 s AC WARNING Read the instructions before using the machine. EN (Original Instruction)
- Page 2 TDR s auto-clean KEEP THIS USER MANUAL FOR FUTURE USE © 2023 Fri-Jado B.V., Oud Gastel, The Netherlands. We advise you to contact your supplier for the guarantee period and conditions. Further we refer to our General Terms and Conditions for Sales and Delivery that are available upon request.
-
Page 3: Table Of Contents
TDR s auto-clean CONTENTS INTRODUCTION ......................5 General ..........................5 Identification of the unit ..................... 5 Pictograms and symbols ....................5 Safety instructions ......................6 1.4.1 General ........................6 1.4.2 Moving ......................... 7 Hygiene ..........................7 Service and technical support ................... 7 Storage .......................... - Page 4 TDR s auto-clean While cooking ......................... 19 Adding extra time to the active program ................20 Interrupt a program ......................20 Reset alarm signal ......................20 Power down ........................20 SETTINGS ........................21 General ........................... 21 Overview main parameters (Manager) ................21 Service Menu ........................
-
Page 5: Introduction
TDR s auto-clean INTRODUCTION General This manual is intended for the user of the TDR s AC (Turbo Deli Rotisserie with cleaning feature). The features and controls are being described, along with directions for the safest and most efficient use, in order to guarantee a long life of the unit. All pictograms, symbols and drawings in this manual apply to all TDR s AC (USA) models. -
Page 6: Safety Instructions
TDR s auto-clean Safety instructions WARNING The outside of the unit can be very hot. WARNING The maximum load on top of the unit may never exceed 110 lbs. WARNING Risk of slippery floor: Spills may cause slippery surfaces, clean-up promptly. WARNING See installation instructions for grounding requirements. -
Page 7: Moving
TDR s auto-clean 1.4.2 Moving When moving the unit: • Before moving the unit, first switch off the mains voltage by pulling the plug from the wall socket and empty the fat collecting container. After that, cool-down the unit for at least ten minutes. •... -
Page 8: Description Of The Unit
Communication through USB / WIFI (optional) enables easy read-out, re-work and creating of programs via a PC. For this, special software is available at Fri-Jado. The unit has an automated cleaning program that cleanses the unit. -
Page 9: Installation And First Use
TDR s auto-clean INSTALLATION AND FIRST USE All packing materials used for this unit are suited for recycling. After unpacking, check the state of the unit. In case of damage, store the packing material, and contact the transporter within fifteen working days after receiving the goods. Unpacking the unit (Single unit shown) 1. -
Page 10: Installation And Positioning
TDR s auto-clean Installation and positioning WARNING Electric chock hazard. Grounding instructions: only connect the appliance to an alternating current provided by a grounded wall socket, with a mains voltage in accordance with the information indicated on the data plate of the appliance. It is the consumer's responsibility to make sure the electrical installation conforms with current national and local codes and wiring regulations. -
Page 11: First Use
TDR s auto-clean First use When using the unit for the first time, clean the interior thoroughly with soap suds and heat up the unit, see section 3.3.1. After commissioning discoloration of the cooking/grilling area can occur. ➊ ➋ ➌ ➍... -
Page 12: Operation And Use
TDR s auto-clean OPERATION AND USE Control Panel Main Functions: ON / OFF Recipes Wipe/clean touch screen (during count down) Clean Rotisserie Home screen Language Help function Tap or swipe to select function or activate additional screen Step Back (when shown at upper left corner) 12 / 32... -
Page 13: Switching-On The Unit
Whole uncut chickens should always be grilled using the meat forks. This way their natural fat will baste each other, giving a perfectly slender cooking result. Refer to the You-Tube movie: “Fri-Jado instruction for binding and loading chicken”. For preparing chicken or any other poultry, you can work as follows. -
Page 14: Loading The Rotisserie Using Meat Forks (Accessory)
TDR s auto-clean 4.3.2 Loading the rotisserie using meat forks (accessory) For preparing chicken or any other poultry, you can work as follows. 1. Insert one point of the meat fork through the chest at the position of the wings. Insert the other point through the drum sticks. -
Page 15: Loading The Rotisserie Using Meat Baskets (Accessory)
TDR s auto-clean 4.3.3 Loading the rotisserie using meat baskets (accessory) If you are using meat baskets, act as follows: • With the TDR 5 you must stick the ends of the meat baskets through the appropriate holes of the rotor disks. •... -
Page 16: Grilling Time
This releases the V-shape spit. 3. Take the V-shape spit at its other end and take it out of the unit. 4. Remove the products from the V-shape spit. Refer to the You-Tube movie: “Fri-Jado instruction for unloading chicken from a rotisserie”. 4.5.2 Taking out the meat forks (accessory) For taking out the meat forks you can use the same principle as described in section 4.5.1. -
Page 17: Taking Out The Meat Basket (Accessory)
TDR s auto-clean 4.5.3 Taking out the meat basket (accessory) When taking out the meat basket from the TDR it is best to act as follows: Slightly lift both ends of the meat basket. Move the basket towards either the left or right hand side of the unit. This action unlocks one end of the basket. -
Page 18: Operate
TDR s auto-clean OPERATE Starting a program 1. Press 2. Select the required program. The total duration of the program is shown in minutes next to the program name. 3. Press Delayed starting time (optional) When the Delayed starting time function is activated (at manager menu), a delayed starting time can be set. -
Page 19: Pre-Heating
TDR s auto-clean Pre-heating When the pre-heat function is activated (at manager menu), the unit will start this function after selecting a program. The screen will display the actual temperature (at the top). Tap on the temperature box to see the set pre-heat temperature (approx. -
Page 20: Adding Extra Time To The Active Program
TDR s auto-clean Adding extra time to the active program During the process extra time can be added (when activated in the manager menu), by following the next steps: 1. Press 2. Set extra time. 3. Select to save setting. The display now shows the extra time, which will be added to the last cooking step. -
Page 21: Settings
TDR s auto-clean SETTINGS General The settings of the unit can be changed by using the control panel. There are three kinds of settings: • Information, • Manager, • Service. Select to enter the setting menu. The Manager and Service section are password protected. Press to go one level back. -
Page 22: Program
TDR s auto-clean PROGRAM General Enter the recipe menu Adding programs 1. Select 2. Enter the program name. 3. Enter the preheat step (or left blank). 4. Add cooking steps (swipe additional step at the bottom of the screen upwards). 5. -
Page 23: Deleting Programs
TDR s auto-clean Deleting programs Deleting of a program cannot be undone. 1. Select recipe to delete. 2. Select 3. Select 4. Select Yes. 23 / 32... -
Page 24: Cleaning And Maintenance
TDR s auto-clean CLEANING AND MAINTENANCE WARNING Appliance must be disconnected from the power supply during manual cleaning or maintenance and when replacing parts. Do not use aggressive or abrasive materials. These will damage the surface which will make it more difficult to remove dirt. Clean the inside, the removable parts and the accessories thoroughly with cleanser and water before putting the unit into use. - Page 25 Contact your supplier for the appropriate Fri-Jado Rotisserie Cleaning Cartridges. Additional are Fri-Jado In Between Clean and Fri-Jado RotiShine Descale cleaning products available. Please contact Fri-Jado for more information. ProteClean disclaimer: In some cases a quick release of the second stage of the product can cause black stains in the stainless steel.
-
Page 26: Weekly Cleaning
TDR s auto-clean Weekly Cleaning WARNING The control panel may only be cleaned using a damp cloth. The exterior: • Clean the exterior with cleaning agent or hot water combined with an appropriate cleaning agent. • Dry the exterior thoroughly by using a dry cloth. Additional Manual Cleaning The unit can be cleaned best shortly after use, when it is still lukewarm. -
Page 27: Malfunctions And Service
TDR s auto-clean MALFUNCTIONS AND SERVICE Before you contact your supplier/dealer in case of a malfunction, there are some items you can check yourself: • Is the power supply working properly? Check fuses and differential switch. • Has the timer clock been properly set? Item Malfunction Possible action... -
Page 28: Technical Specifications
TDR s auto-clean TECHNICAL SPECIFICATIONS WARNING Consult the identification plate to get the proper specifications of the unit. The electrical data may vary from country to country. Model TDR 7 AC TDR 7+7 AC Dimensions Width 41 ½ inch 41 inch Depth 38 ½... - Page 29 TDR s auto-clean Notes. 29 / 32...
- Page 30 TDR s auto-clean Notes. 30 / 32...
- Page 31 TDR s auto-clean Notes. 31 / 32...
- Page 32 TDR s auto-clean Fri-Jado B.V. Fri-Jado Inc. Blauwhekken 2 1401 Davey Road, Suite 100 4751 XD Oud Gastel Woodridge IL 60517 The Netherlands Tel: +31 (0) 76 50 85 400 Tel: +1-630-633-7950 www.frijado.com 32 / 32...
