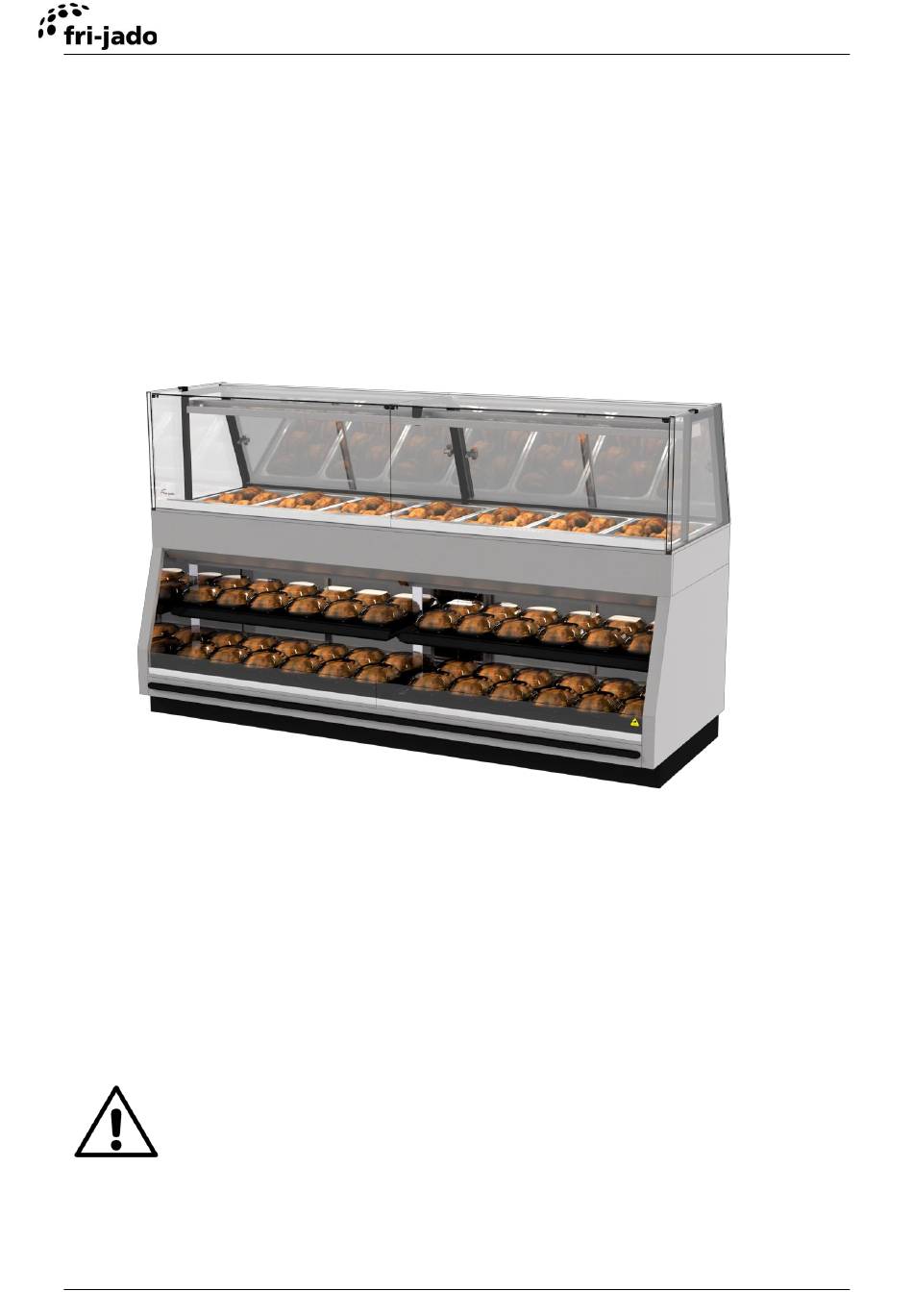

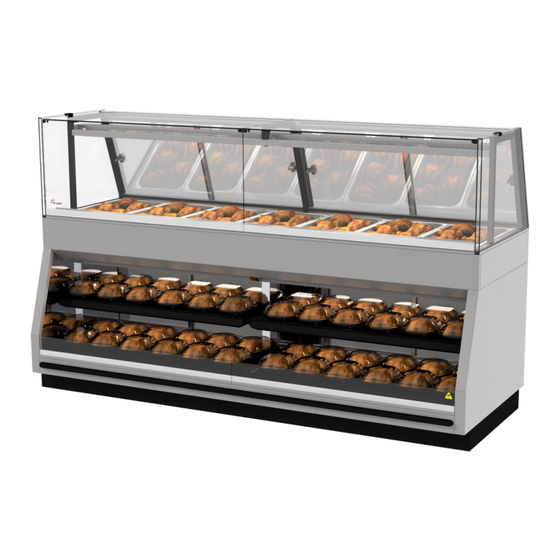

- Page 1 DC 3 level – Hot USER MANUAL Deli Counter 3 level WARNING Read the instructions before using the machine. EN (Original Instruction) 9124871 / 2405...
- Page 2 DC 3 level – Hot KEEP THIS USER MANUAL FOR FUTURE USE! © 2024 Fri-Jado B.V., Oud Gastel, The Netherlands. We advise you to contact your supplier for the guarantee period and conditions. Further we refer to our General Terms and Conditions for Sales and Delivery that are available upon request.
-
Page 3: Table Of Contents
DC 3 level – Hot CONTENTS INTRODUCTION ......................4 General ..........................4 Identification of the unit ..................... 4 Pictograms and symbols ....................4 Safety instructions ......................5 1.4.1 General ........................5 1.4.2 Moving (when applicable) .................... 5 1.4.3 Outdoor use restrictions ....................6 Hygiene .......................... -
Page 4: Introduction
DC 3 level – Hot INTRODUCTION General This manual is for the user of the Deli Counter (DC 3 level). The described features and controls, along with directions for the safest and most efficient use, are to guarantee a long life of the unit. Identification of the unit The identification plate, on the outside of the machine, contains the following data: •... -
Page 5: Safety Instructions
DC 3 level – Hot Safety instructions WARNING The outside and shelves of the unit can be very hot. WARNING The maximum load on top of the unit may never exceed 22 lb. WARNING See installation instructions for grounding requirements. 1.4.1 General The user of the unit will be fully responsible for abiding the locally prevailing safety- rules and... -
Page 6: Outdoor Use Restrictions
DC 3 level – Hot 1.4.3 Outdoor use restrictions WARNING To avoid short-circuiting, the units may not be used outdoors or in a rainy or very moist environment. Hygiene WARNING Immediately remove products in damaged packaging from the equipment and destroy the products. -
Page 7: Description Of The Unit
AISI 304 or AISI 430, powder coated metal and tempered glass. Use a pallet truck to move the unit. To optimize your hot food operations, contact Fri-Jado to receive advice. Accessories The unit contains the following standard accessories: •... -
Page 8: Installation And First Use
DC 3 level – Hot INSTALLATION AND FIRST USE All packing materials used for this unit are suited for recycling. Before and during unpacking, check the state of the unit. In case of damage, store the packing material, and contact the transporter within fifteen working days after receiving the goods. 8/21... -
Page 9: Unpacking The Unit (Pictures For Reference Only)
DC 3 level – Hot Unpacking the unit (pictures for reference only) 1. Unpack the unit as initiated on the unpacking instruction on the packaging. 2. Remove all remaining packing materials from the unit. 3. Remove the protective foil from the metal parts. 4. -
Page 10: Installation And Positioning
DC 3 level – Hot Installation and positioning WARNING Electric chock hazard. Grounding instructions: only connect the appliance to an grounded alternating current mains voltage in accordance with the information indicated on the identification plate of the appliance. It is the consumer's responsibility to make sure the electrical installation conforms with current national and local codes and wiring regulations. -
Page 11: Level The Unit
DC 3 level – Hot 3.2.1 Level the unit Place the unit on a sturdy, flat surface, and level the unit by adjusting the unit’s legs (max. 9/16”). 3.2.2 Mounting the plinths Place the rear plinth by attaching it to both rear adjustable legs using its two clamps. -
Page 12: Operation And Use
DC 3 level – Hot OPERATION AND USE The display and/or set value is not the product/unit temperature. The top section is set at 185ºF intake air temperature. The bottom section is set at 149ºF intake air temperature. If required, this temperature can be adjusted. At an ambient temperature of 68ºF and an initial core temperature of 185ºF these factory settings of the unit’s temperature ensure a constant core temperature of at least 149ºF for 4 hours. -
Page 13: Operating
DC 3 level – Hot Operating Switching-on the unit 1. Switch the unit on using the main switch. 2. Preheat the unit for approx. 30 minutes. Loading the unit • Only place products that have a core temperature of at least 185ºF. •... -
Page 14: Cleaning And Maintenance
DC 3 level – Hot CLEANING AND MAINTENANCE WARNING Never use a water hose for cleaning. Water can seep into the unit through the ventilation holes of the unit. The main switch must be turned OFF during cleaning or maintenance and when replacing parts. -
Page 15: Top Section: Cleaning Glass Panes
DC 3 level – Hot Top section: cleaning glass panes Use a mild detergent and soapy water for the cleaning of the unit. To assist with the cleaning of the unit, it is possible to open glass windows of the unit. Lift the top window first before opening the front window Always lower the top window... -
Page 16: Top Section: Cleaning Air Guides And Fans
DC 3 level – Hot The sliding windows are removable Lifting them up Tilting them outwards Removing them from the bottom guide Clean the bottom frame of the windows. These are removable if required. Top section: cleaning air guides and fans WARNING Switch off the unit first and let it cool down. -
Page 17: Bottom Section: Cleaning Sliding Doors And Rear Of Shelves
DC 3 level – Hot At the front and the back of the unit there are air guides, which are removable. At the back of the unit there is a fan-box, which can be tilted to clean below it. Bottom section: cleaning sliding doors and rear of shelves Always keep the sliding doors closed as much as possible, or the unit cannot maintain its climate. - Page 18 DC 3 level – Hot • Turn the outermost door outwards along the guiding pin. • Clean the outermost door. • To clean the left (innermost) door, slide both doors to the right until the innermost door´s slot aligns with the guiding pin. NOTE: The outermost door should still be in its rotated position.
-
Page 19: Malfunctions And Service
DC 3 level – Hot MALFUNCTIONS AND SERVICE Before you consult the dealer or the service agency when there is a fault, check the following points: • Is the power supply OK? Check the fuses and the earth leakage switch in the meter cupboard. •... -
Page 20: Technical Specifications
WARNING Consult the identification plate to get the proper specifications of the unit. The electrical data may vary from country to country. Specification Unit 72-3 96-3 Electrical connection Hard wired (3 hot, 1 neutral, 1 ground) Nominal voltage 3~ 120/208... - Page 21 DC 3 level – Hot Fri-Jado B.V. Fri-Jado Inc. Blauwhekken 2 1401 Davey Road, Suite 100 4751 XD Oud Gastel Woodridge IL 60517 The Netherlands Tel: +31 (0) 76 50 85 400 Tel: +1-630-633-7950 www.frijado.com 21/21...
