Remove protective plastic before assembling
1
2
Bolt
M8x16
Bolt
top plate to TDR
TDR to MD
(4x) 4285076
(4x) 4280110

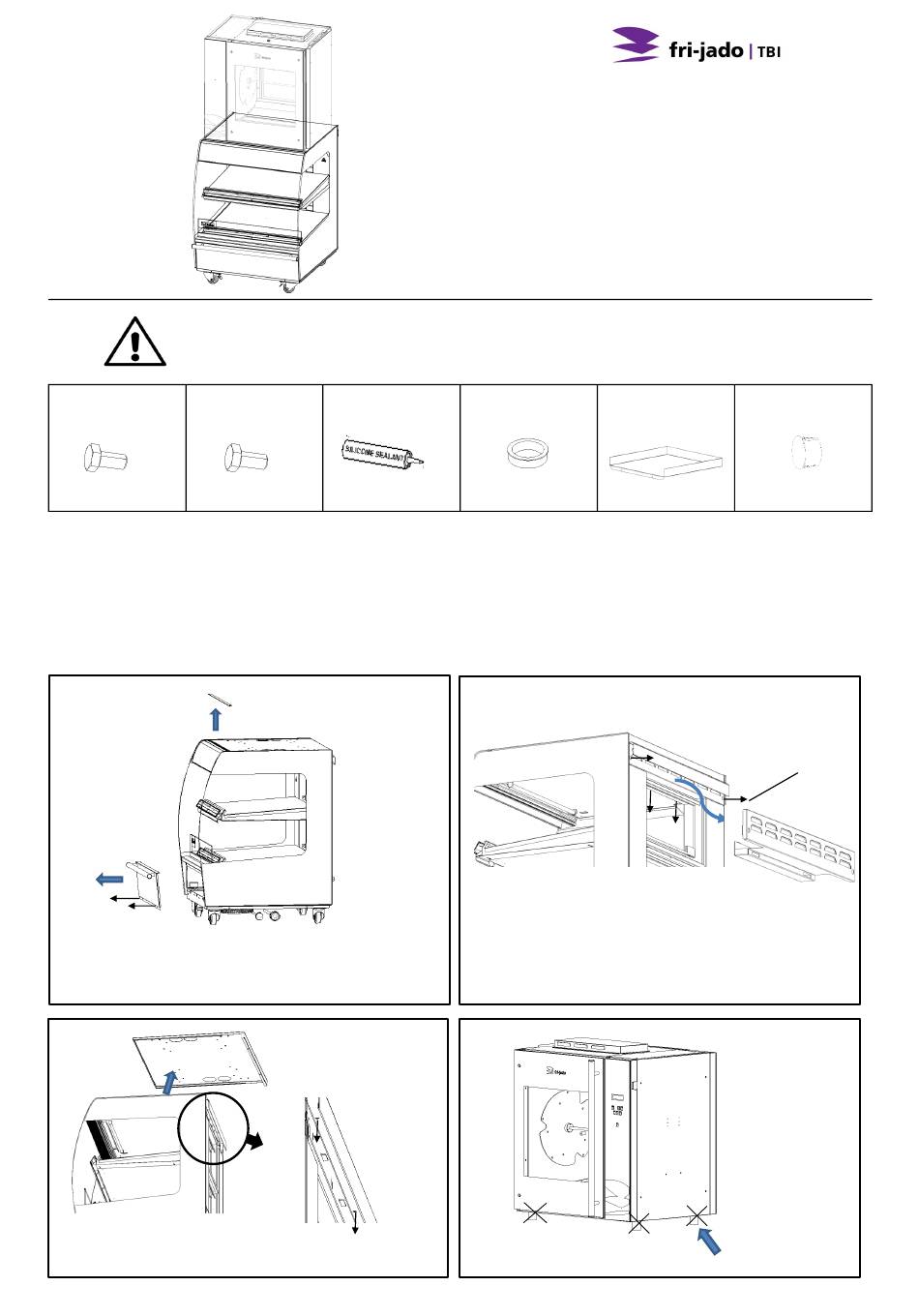

Unpack the MDS and TDR5 according the instructions in the corresponding user manual
A
Remove the plastic strip
Demount the lower front plate (2 screws)
C
Demount the top plate
Knock-out the 4 small holes and the 2 big holes at the TDR control side
9124088/1406
3
M6x20
Tube silicone kit
(1x) 4302373
Assembling TDR5 on MDS
4
5
tule top plate
Intermediate plate TDR
(grease plate)
(1x) 9281021
(1x) 9294366
B
Remove caps (#6)
Demount the ventilation plate (4 screws)
D
Remove the 4 legs of the TDR
Set 9229803
6
cap ventilation plate
(2x) 9281039
6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fri-Jado TDR5
Summary of Contents for Fri-Jado TDR5
- Page 1 (1x) 4302373 (1x) 9281021 (1x) 9294366 (2x) 9281039 Unpack the MDS and TDR5 according the instructions in the corresponding user manual Remove caps (#6) Remove the plastic strip Demount the ventilation plate (4 screws) Demount the lower front plate (2 screws)
- Page 2 Remove the grease drawer Mass ± 120 kg Seal (with kit #3)the front and back between the plate and the TDR5 Hold the TDR just above the MD (Use of forklift truck is recommeded) Mount the MD top plate to the TDR with screws #1 (former leg holes)
