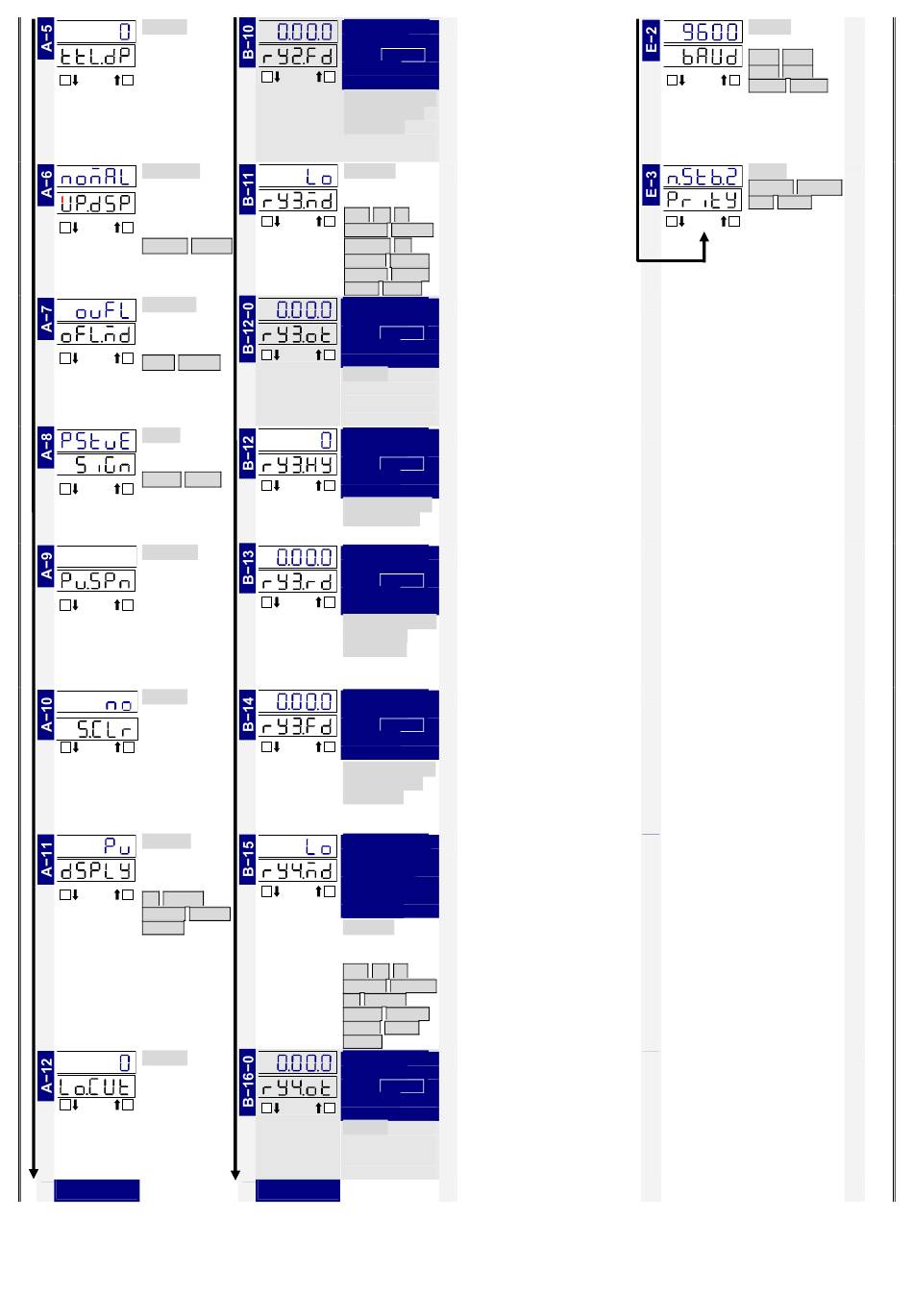

ADTEK CS2-TM User Manual page 9

ttL.dP:
Decimal point
of totalizer
0~0.0000
▼ ▲
UP.dSP:
Up screen
displays
totalizer or
▼ ▲
batch Counter
noMAL Bt.Cnt
oFL.Md:
overflow mode
of totalizer or
batch
▼ ▲
ovFL rCYCL
SiGn: Sign of
accumulate up
or down
PStvE dUAL
▼ ▲
Pv.SPn:
100.00
Fine Span
Adjustment for
Immediate
▼ ▲
Value(PV)
display
S.CLr:
Clear Fine
Span
Adjustment for
▼ ▲
Immediate
Value(PV)
display
dSPLY:
Display
Function for
down screen
▼ ▲
Pv Mini.H
MAX.H RS485
bAtCH
Lo.Cut:
Low Cut
-29999~+29999
▼ ▲
Next Page
The page will
show out,
when rY2.Md
set to be Hi/Lo
▼ ▲
mode.
rY2.Fd: Relay 2
de-energized
delay time
0:00.0~
9(M):59.9(S)
rY3.Md: Relay
3 energized
mode
oFF Lo Hi
▼ ▲
Hi.HLd Go-1.2
Lo.HLd do
btcH.n btcH.r
btcH.C totL.n
totL.r totL.C
The page will
show out,
when rY3.Md
set to be N/R/C
▼ ▲
mode.
rY3.ot: Relay 3
energized time
0:00.0~
9(M):59.9(S)
The page will
show out,
when rY3.Md
set to be Hi/Lo
▼ ▲
mode.
rY3.HY: Relay
3 Hysteresis
0~5000 counts
The page will
show out,
when rY3.Md
set to be Hi/Lo
▼ ▲
mode.
rY3.rd: Relay 3
energized
delay time
0:00.0~
9(M):59.9(S)
The page will
show out,
when rY3.Md
set to be Hi/Lo
▼ ▲
mode.
rY3.Fd: Relay 3
de-energized
delay time
0:00.0~
9(M):59.9(S)
The page will
not show out,
when pulse
output has
▼ ▲
been
specified.
rY4.Md: Relay
4 energized
mode
oFF Lo Hi
Hi.HLd Lo.HLd
do btcH.n
btcH.r btcH.C
totL.n totL.r
totL.C
The page will
show out,
when rY4.Md
set to be N/R/C
▼ ▲
mode.
rY4.ot: Relay 4
energized time
0:00.0~
9(M):59.9(S)
Next Page
9 / 27 CS2-TM(Pulse)-Operating Manual 2012-05-10
bAUd: Baud
rate
1200 2400
4800 9600
▼ ▲
19200 38400
PritY: Parity
n.Stb.1 n.Stb.2
odd EvEn
▼ ▲
