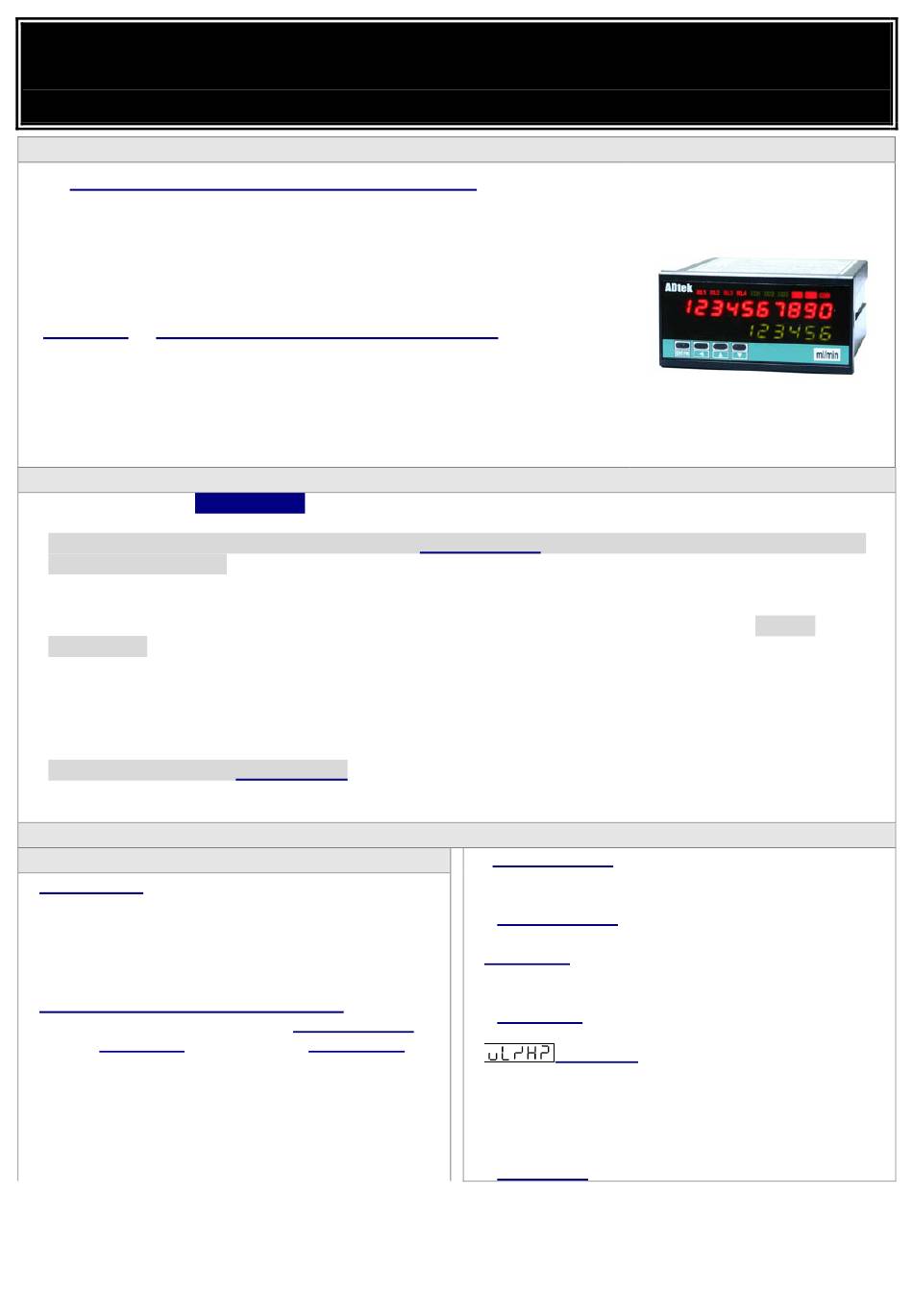

ADTEK CS2-TM User Manual

CS2-TM
DESCRIPTION
■

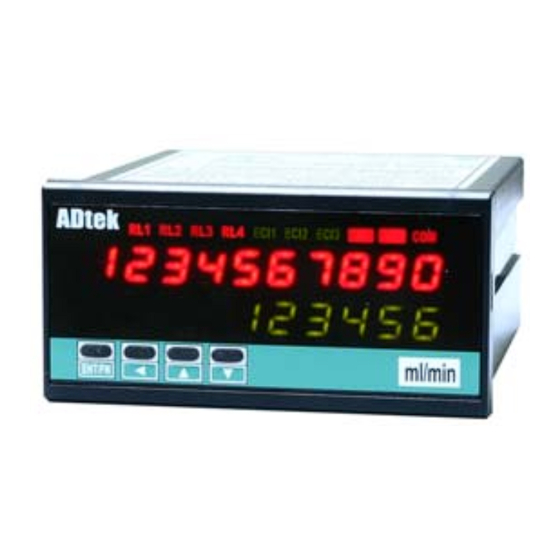

The CS2-TM(Pulse Input) is innovation totalizer. Adtek builds in
high technology with wide input range from 0.01Hz~ 140.00KHz with
auto-range function at same unit. There are three setting modes for
K factor, 1/K factor and flow speed to match the difference output
description of flowmeters.
The Totalizer provides high accuracy measurement, display,
control and communication (Modbus RTU mode) of Pulse from
flowmeter or encoder, approach switch, photo switch for length
control.
There are two display screen and 3 external control input
(DI) in standard and the optional 4 Relay, 1 Analogue, 1 Pulse
and RS485 port available. They are also support fantastic
control function as like as N, C, R mode for totalizer and batch
control.
■ FEATUTRES
Measuring Pulse
●
be switch on rear of meter
Dual display screen for 10 digital Totalizer or Batch counter + 4 2/3 Immediate Value(PV) or 6 digital
●
Batch programmable.
4 relay can be individual programmed to relative immediate value, totalizer or batch.
●
Relative to Immediate Value(PV): Functions settable Energized Mode Hi / Lo / Hi(Lo) Hold / Do / Go,

Hysteresys‚ Energized Delay, De-energized Delay, Energized latch or Energized by RS485
command.
Relative to Totalizer / Batch: N/C/R mode and energized time programmable.

3 external control input can be individual programmed for immediate value(PV) or totalizer / batch.
●
Immediate Value(PV): PV Hold / Reset for Maximum or Minimum Hold / DI / Reset for Relay

Energized Latch
Totalizer / Batch: Reset, Gate

Analogue Output and Pulse Output available in option
●
RS485(Modbus RTU mode), Baud Rate is up to 38400bps
●
Comply to CE standard
●
FUNCTIONS
■ Input & Scaling

Input Range
The meter has been designed very wide input
range from 0.01Hz~100.00KHz(Option:
0.01Hz~140.00KHz) that can cover almost any
application for flowmeter. User doesn't need to
specify the input range.

Three setting modes for flowmeters
There are three types setting for Pulse/Flow-unit(K
factor), Flow/Pulse(1/K factor) and Flow rate/Hz to
match the difference output description of
flowmeters. Engineer needs just to check the mode
of flowmeter and setting. The totalizer will
calculating the flow rate, and accumulation.
TOTALIZER / BATCH / IMMEDIATE VALUE
(Pulse Input)
(for Flowmeter or Lengh/RPM)
CONTROLLER USER MANUAL
0.01Hz~100KHz(optional:140KHz); Contact / NPN / PNP / Voltage Pulse can
AUTO RANGE
Pulse/Flow-unit(K factor):

1
 The decimal point of K Factor: Setting range from
0.0 to 0.0000.
Pulse/Flow-unit(K factor): Setting range from

0.0001 to 9999.9
Flow/Pulse (1/K factor):

 The decimal point of 1/K Factor: Setting range from
0.0 to 0.0000.
 Flow/Pulse(1/K factor): Setting range from
to 9999.9
Valume/Hz:

The decimal point of pipe's diameter: Setting range

from 0.0 to 0.0000.
 Diameter of pipe: Setting range from
 The decimal point of
Setting range from
 Flow Speed: Setting range from
1 / 27 CS2-TM(Pulse)-Operating Manual 2012-05-10
0.0 to 0.0000M
flow speed (Lengh/sec):
0.0 to 0.0000.
0.0001 to 9999.9M
0.0001
