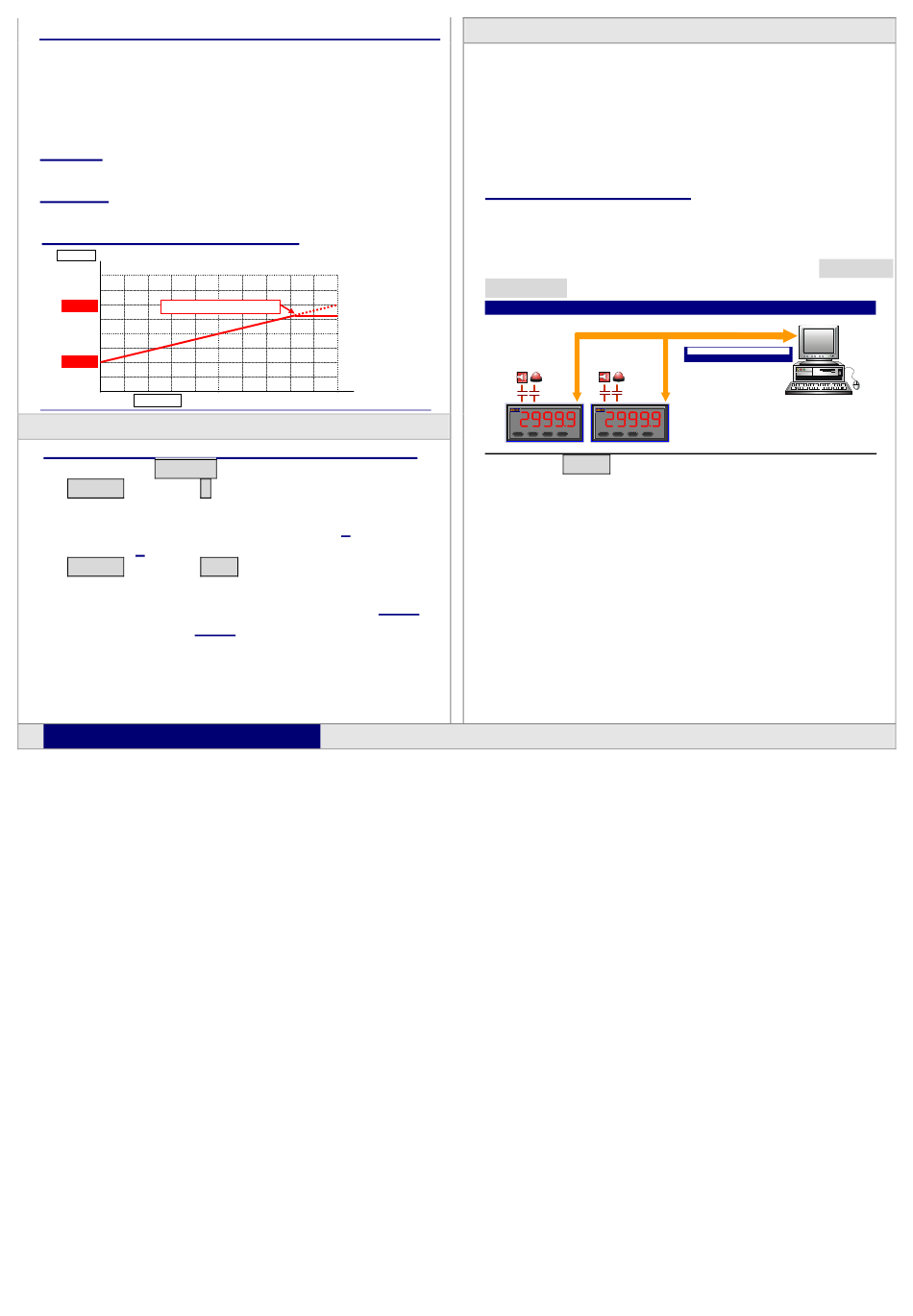

ADTEK CS2-TM User Manual page 4


Fine Zero & Span Adjustment for Analog Output:
Users can get Fine Adjustment of analogue output
by front key of the meter. Please connect standard
meter to the terminal of analogue output. To press
the front key(up or down key) of meter to adjust and
check the meter the output.
Ao.Zro:
Fine Zero Adjustment for Analog Output;

Setting range: -38011~27524;
Ao.Spn:
Fine Span Adjustment for Analog Output;

Setting range: -38011~27524;

High Limited for Analog Output
Setted Scaling: Lo.SC: 0.00, Hi.SC: 199.99;
SCALE
Desired Output: Ao.Lo: 50.00(PV), Ao.Hi: 150.00(PV); Ao.LMt: 80.00%
199.99
Ao.LMt: 80.00%(=130.00)
150.00
100.00
50.00
0.00
OUTPUT
0.00%
■ Pulse Output

Relative to Totalizer, batch or batch counter
Pulse dividerPLS.dv:


PLS.dv set to be 1: It will output 1 pulse, when
totalizer increases "1Count". Ex: It will output 1
pulse, when totalizer from 12345.678 increse to
12345.679,

PLS.dv set to be 1000: It will output 1 pulse,
when totalizer increases "1000Count". Ex: It will
output 1 pulse, when totalizer from 12345.678
increase to 12346.678.
The maximum output is 1000Hz. Please sets lower

resolution of totalizer, when the output over 1000Hz.
Duty Cycle: 50%

Please specify Relay or Open Collect output in order

OEM function is welcome
■
50.00% 100.00%
Settable range from 1~9999.
RS485 Communication
■
Protocol:
ModBus RTU Mode

Baud Rate:
Setting range:1200/2400/4800/ 9600/

19200/38400
Data Bits:
Selectable 7 or 8 bits

Stop Bits:
Selectable 1 or 2 bits

Parity:
Selectable Even / Odd / None

Divice Number:


Remote Display function
The display can be written by RS485 command. In
past, the meter normally receive 4~20mA or 0~10V
from AO card or BCD card of PLC. We support a new
solution by RS485 writing in so that can be save cost
and wiring into PLC.
CS2 APPLICATION FOR RS485 WRINTING IN
RS 485 Modbus RTU Mode (up to 38400bps)
RL1 RL1
RL2 RL2
com com
ECI ECI
When the diPLY(Display Function) set to be RS485,
it means, the PV screen will show the number from
RS485 command & data. The data(number) will be
same as PV that will compare with set-point,
analogue output and ECI functions so that is to
control analogue output, relay energized and so on.
4 / 27 CS2-TM(Pulse)-Operating Manual 2012-05-10
1~255
RS485 wiring 1.2KM maximum
Terminate Resistor:
