ADTEK CS2-TM User Manual page 11

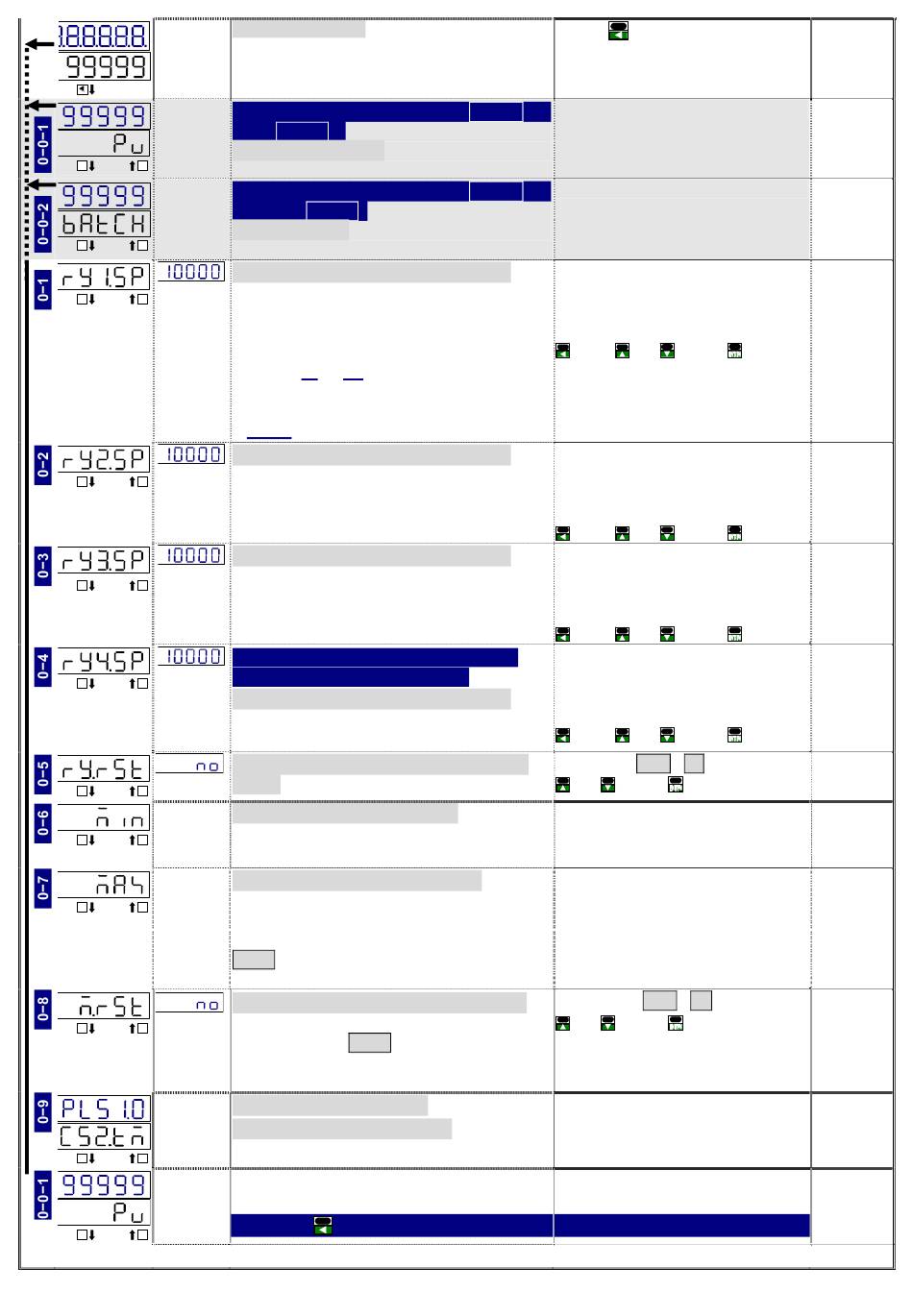

Measuring Page
10 digital Totalizer or batch counter + 4 2/3
digital immediate Vale(PV) or
10 digital Totalizer + 6 digital Batch
This page will show out, when dSPLY set
to be bAtCH .
Pv: Present Value;
▼ ▲
This page will show out, when dSPLY set
not to be bAtCH .
bAtCH: Batch
▼ ▲
rY1.SP: Relay 1 Set-point setting
Please check the setting of Relay
▼ ▲

energized mode and keep in mind.
If the relay mode set to relative
immediate value, the energized mode
will be Hi or Lo.
If the relay mode set to relative totalizer
or batch, the energized mode will be
N/R/C.
rY2.SP: Relay 2 Set-point setting
Please check the setting of Relay

▼ ▲
energized mode and keep in mind.
rY3.SP: Relay 3 Set-point setting
Please check the setting of Relay
▼ ▲

energized mode and keep in mind.
This page will show out, when pulse
output was to specify in order.
▼ ▲
rY3.SP: Relay 3 Set-point setting
Please check the setting of Relay

energized mode and keep in mind.
rY.rSt: Reset for energized hold of
Relay
▼ ▲
Min: PV Minimum storage;
The meter will save the minimum of
▼ ▲
immediate vale(PV) during power on.
MAX: PV Maximum storage) ;
The meter will save the maximum of
▼ ▲
immediate vale(PV) during power on. The
maximum can be reset by front key in
M.rSt of 【User Level】. It will save newest
maximum after reset.
M.rSt: Maximum & Minimum reset;
The maximum and minimum can be reset
▼ ▲
by front key in M.rSt of【User Level】. It
will save newest maximum and minimum
after reset.
CS2-tM: Model number
PLS1.0: Frimware version
▼ ▲
Cyclic to first page
▼ ▲
Press for 1 second can back to Measuring Page in any page.
Press
back to Measuring Page
Setting Range:
Immediate Value(PV):
-19999~+29999
Totalizer/Batch: 0~9999999999
Shift
Setting Range:
Immediate Value(PV):
-19999~+29999
Totalizer/Batch: 0~9999999999
Shift
Setting Range:
Immediate Value(PV):
-19999~+29999
Totalizer/Batch: 0~9999999999
Shift
Setting Range:
Immediate Value(PV):
-19999~+29999
Totalizer/Batch: 0~9999999999
Shift
Slecttable: YES / no
Up
Review only
Review only
Slecttable: YES / no
Up
Review only
It will be announce in our
website when it has been
version changed.
11 / 27 CS2-TM(Pulse)-Operating Manual 2012-05-10
for 1 second can
Up Down Enter
Up Down Enter
Up Down Enter
Up Down Enter
Down Enter
Down Enter
