EVAL-IHW25N140R5L
2kW induction heating evaluation board with reverse conducting R5L IGBT
The board at a glance
1.2

Block diagram

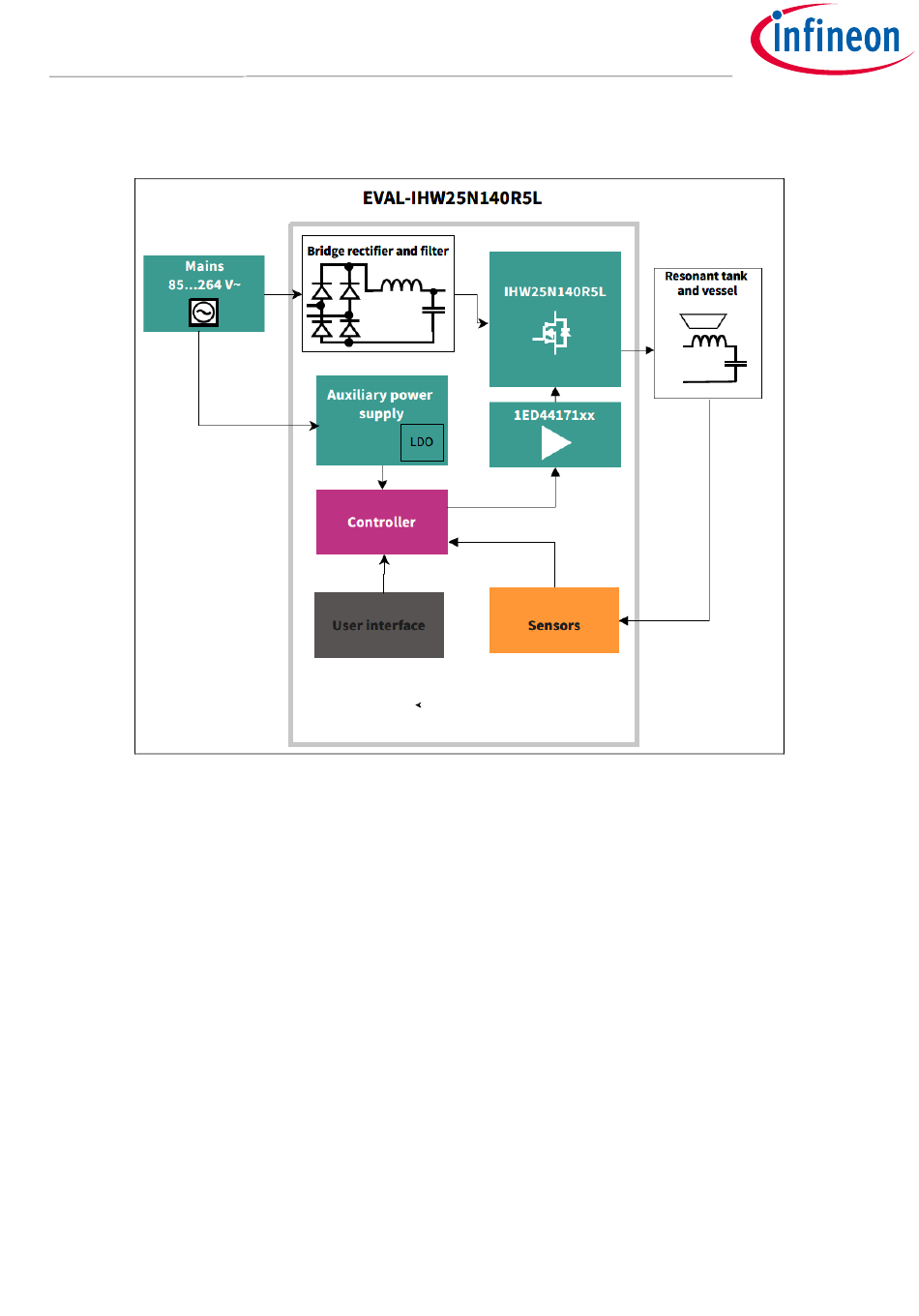

Figure 2 Block diagram of the evaluation board
Figure 2
shows a top-level overview of the induction heating board's building blocks. Detailed overview of a
Figure 3
real board is shown in
1.3

Main features

The main features of the board are:
Quasi-resonant topology
•
2 kW output power
•
9 levels of power control
•
Overvoltage protection
•
Undervoltage protection
•
Overcurrent protection
•
Overtemperature protection
•
99-minute timer functionality
•
Isolated user interface
•
User guide
.
7 Revision 1.0
