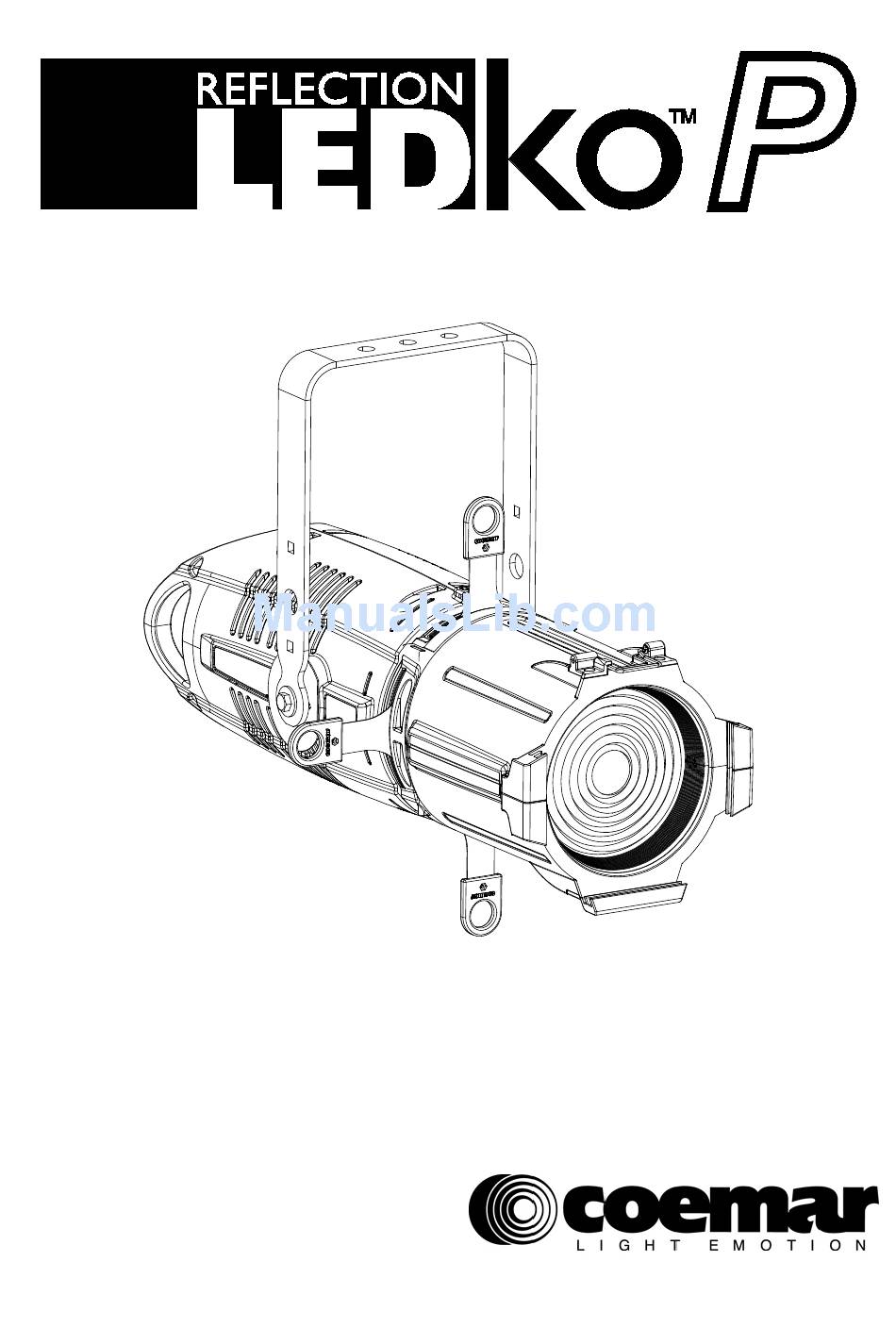

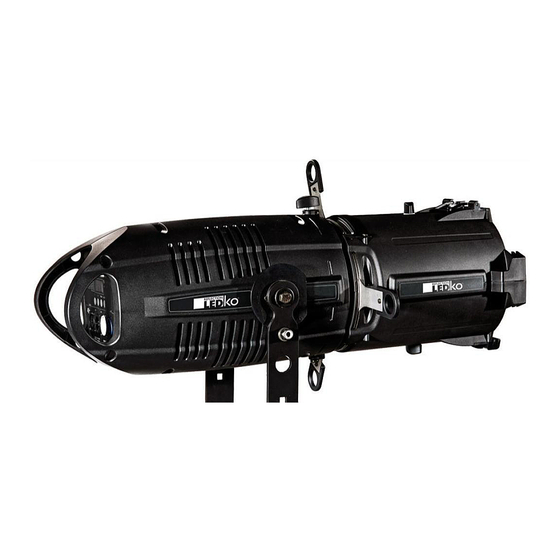

  • Page 1 Instruction manual Manuale di istruzioni Ver. 1.0 DIS151...
  • Page 2 Serial number/numero di serie Date of purchase/data di acquisto Retailer/fornitore Address/indirizzo Suburb/cap/città Capital city/provincial State/stato Tel./fax Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your Reflection LEDko P : this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

  • Page 3: Table Of Contents

    English Index 1.Packaging and transportation ............................... 6 1.1 Packaging ....................................6 1.2 Trasportation ..................................... 6 2. General information ..................................6 2.1 Important safety information..............................6 2.2 Warranty conditions .................................. 6 2.3 EC Norms ....................................6 3. Product specifications .................................. 7 3.1 Technical characteristics ................................

  • Page 4: Packaging And Transportation

    English Thank you for having purchased a Coemar product. You have assured yourself of a fixture of the highest quality, both in the componentry and in the technology used. We renew our invitation to you to complete the service information form on the previous page.

  • Page 5: Product Specifications

    English 3. Product specifications 3.1 Technical characteristics Power 90-250 Vac 50/60Hz Autosensing Maximum current 0,67A @230 Vac, - 1,76 A @90VAC Cos ϕ = 0,9 Power factor Light source wattage 140 W Maximum room temperature 35°C/95°F Weight 5 Kg./11.2 lbs (main body) Grado di protezione IP20 3.2 Dimensions...

  • Page 6: Unit's Main Components

    English 3.3 Unit’s main components Iris ( optional) Adjustable yoke Gobo holder ( optional) Lens adjusting handles Gel frame locking spring Yoke locking handle Interchangeable optic Profiler blade 3.4 Rear panel, description Multifunction LCD display “+” Key to scroll menu pages and increment values.

  • Page 7: Installation

    English 4. Installation 4.1 Optical installation Remove the frontal cap by loosening the upper and lower screws enough to free the cap itself, set the optic’s flange tilted about 60°. Insert the optic’s flange into the body’s receptacle and turn the optic 60° until it is firmly assembled to the projector body, free to rotate but not free to detach itself from the body.

  • Page 8: Mechanical Installation

    If using steel cables and chains not Coemar's production, make sure they are suitable to support the weight of the unit according to normative UL/ETL ( required: the weight of 6 complete devices for at least one hour) 4.4 Adjusting unit’s tilt...

  • Page 9: Powering Up

    Note: in case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3 X 1,5 ø external 10 mm, rated 300/500V, tested to 2 KV, operating temperature -40°C + 180°C, Coemar cod. CV5311). Connection to mains power Reflection LEDko P is equipped with two power connectors, one as input and one as output, which can be used to connect more fixtures in series (no more than 16 units @ 230V or 8 units @ 115V.).

  • Page 10: Control Signal Connections

    English 6. Control signal connections 6.1 Control signal connection by XLR5 plugs. The digital control signal is transmitted to the projector via a two pole cable screened as per International standards for the transmission of DMX 512 data. The connection must be serial, using connectors XL5 male and female located on the back of Reflection LEDko P labelled DMX512 IN e OUT (see diagram).

  • Page 11: Dmx Functions

    English 7.2 DMX functions type of c hannel func tion effec t dec imal perc entage c ontrol master dimmer adjust luminous output intensity from 0 to 100% proportional 100% spare c hannel no effect step 100% no effect step dimmer fine fine dimmer control 16 bit.

  • Page 12: Display Panel Functions

    Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller; therefore carefully read about the functions described here before carrying out any possible selection..

  • Page 13: Main Function Menu (Func)

    English 8.3 Main function menu (FUNC) The projector gives the opportunity to change and customize some functional settings. FUNC TUNG Dimmer mode: it can simulate dimmer effect with Tungsten or Xenon DIMM. XENO lamp. DIMMER 0 - 255 STROBE 0 - 255 TEST -Store RVRS...

  • Page 14: Measures And Test S(Meas)

    English 8.4 Measures and test s(MEAS) The internal microprocessor of Reflection LEDko P allows for several diagnostic and output paramenter to be displayed. MEAS It shows the temperatures detected by the probe on the led module: TEMP It shows the volt value of the power of the unit. VOLT It measures the DMX value (0-255) received by each DXM channel of DMIN...

  • Page 15: User Settings (Mode)

    8.7 Electronic alignment of the leds. The display panel of Reflection LEDko P allows the electronic alignment of the leds, this procedure is performed by Coemar at the time of testing, this procedure may be useful for special effects or in case of replacement of internal components (PCBs, leds, etc.
  • Page 16 English To access alignment function: Activate the reset holding down the MENU and ENTER for at least 10 seconds while powering on. Screen is then displayed "ALIGN". WARNING ! The electronic alignment procedure is only possible with DMX512 signal . See the following diagram to enter in the function’s details.

  • Page 17: Error Messages

    4 leafs barndoor All the components of Reflection LEDko P are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing for your requirements in an efficient and effective manner...

  • Page 18: Maintenance

    Reflection LEDko P has an automatic fuse that in most cases does not need to be replaced. 12. F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by qualified personnel or just contact your Coemar service near you. Question Possible cause...
  • Page 19 English Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 20 Coemar s.p.a. via Inghilterra 2/A - 46042 Castel Goffredo (Mantova) Italy ph. +39 0376/77521 - fax +39 0376/780657 info@coemar.com Coemar si riserva il diritto di apportare modifiche senza preavviso. Coemar reserves the right to effect modifications without notification...
